Single Phase EMI Filter

VIIP Single Phase EMI Filter 230V 10A with 60dB-90dB Insertion Loss for European Stage Lighting and Theater Equipment

All Category

Flat Ferrite Core

Miss. Vicky Lee

vip6@szviip.com

19925448748

19925448748

Contact Now

VIIP Single Phase EMI Filter 230V 10A with 60dB-90dB Insertion Loss for European Stage Lighting and Theater Equipment

Brand Name:	VIIP WeiAiPu
Model Number:	VIP4-3A
MOQ:	1
Price:	CN¥242.22-252.95

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Technology:

Filter Type:

Three Phase (Wye)

ESD Protection:

Insertion Loss:

60dB-90dB

Stopband Attenuation:

20-100db

Test Voltage:

L-L:1450VDC/1Min

Rated Current:

1A 3A 6A 10A

Leakage Current:

<0.5mA To <2.0mA

Terminals:

Wire, Solder Lug, Stud, Terminal Block

Voltage:

Current Range:

0.1A-3000A

Attenuation Frequency:

150KHz-30MHz

High Voltage:

Above 380VAC

Medical Versions:

Optional (H Type)

Weight:

65g To 1900g

Highlight:

230V Single Phase EMI Filter

10A AC EMI Filter

60dB-90dB Insertion Loss Power Line Filter

Product Description

VIIP Single Phase 230V 10A EMI Filter

Professional EMI filter designed for European stage lighting, theater equipment, and dimmer rack applications with flicker prevention capabilities.

Product Specifications & Support

Sample Orders: Supported

Certifications: CQC, UL, VDE, CE

Current Range: 0.1A-3000A

OEM Services: Supported

Single Phase EMI Filter Features

Rated current: 0.5A-300A
Various terminal options: wire, solder lug, stud, terminal block, etc.
Optional medical versions (H type) available
Custom specific versions available on request

General purpose AC filters with excellent attenuation frequency range of 150KHz-30MHz. Compact structure, high performance-cost ratio, easy to install, safe and reliable operation.

VIP4-1A and VIP4-1B series are one-stage common-mode filters with similar filtering performance, differing primarily in current handling capacity. High voltage versions above 380VAC are also available.

Product Specifications Table

Part No.	Rated Current [A]	250VAC/50Hz @ 20°C Leakage Current [mA]	Physical Dimensions	Electrical Schematics	Terminals	Weight [g]

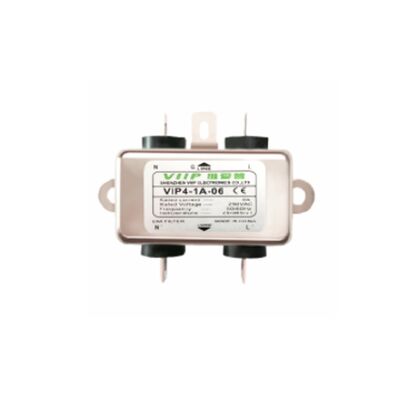

VIP4-1A-01	1A	<0.5mA	Fig 1	Fig 1	Wires	65
VIP4-1A-03	3A	<0.5mA	Fig 1	Fig 1	Wires	65
VIP4-1A-06	6A	<0.5mA	Fig 1	Fig 1	Wires	65
VIP4-1A-10	10A	<0.5mA	Fig 2	Fig 1	Terminal Block	75
VIP4-1B-06	6A	<1.0mA	Fig 3/Fig4	Fig 2	M4 Screw	140
VIP4-1B-10	10A	<1.0mA	Fig 3/Fig4	Fig 2	M4 Screw	170
VIP4-1B-20	20A	<1.0mA	Fig 3/Fig4	Fig 2	M4 Screw	170
VIP4-1B-30	30A	<1.0mA	Fig 5	Fig 2	M6 Screw	320
VIP4-1B-50	50A	<2.0mA	Fig 5	Fig 2	M6 Screw	600
VIP4-1B-100	100A	<2.0mA	Fig 5	Fig 2	M8 Screw	1380
VIP4-1B-150	150A	<2.0mA	Fig 5	Fig 2	M10 Screw	1900
VIP4-1B-200	200A	<2.0mA	Fig 5	Fig 2	M10 Screw	1900

Technical Documentation

Electrical Schematic

Mechanical Dimensions (Unit: mm)

Key Features

Designed for IEC standard connectors, easy installation, high cost performance
Suitable for IT, communication equipment, instruments, household appliances, medical equipment, UPS, industrial air conditioning, electronic and electrical equipment, new energy equipment
Customized and sample orders available

For more power filter models, please contact us for detailed information.

Product Gallery

Company Profile

Exhibition

Certifications

Packing & Delivery

Frequently Asked Questions

Q: Can you provide some samples before ordering formally?

A: Yes, samples can be provided.

Q: How can I pay?

A: T/T (Telegraphic Transfer)

Q: Do you provide customized products?

A: Yes, we can provide customized products.

Q: Do you test all products before shipping?

A: All products will be 100% checked before shipment.
