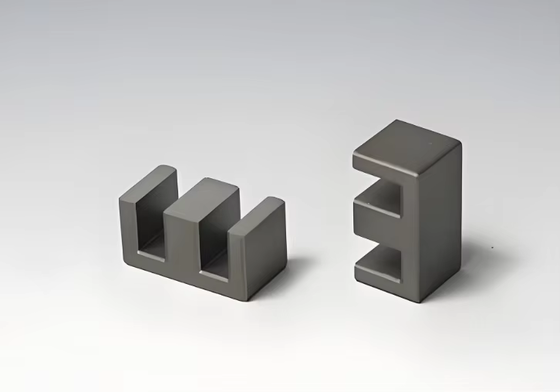

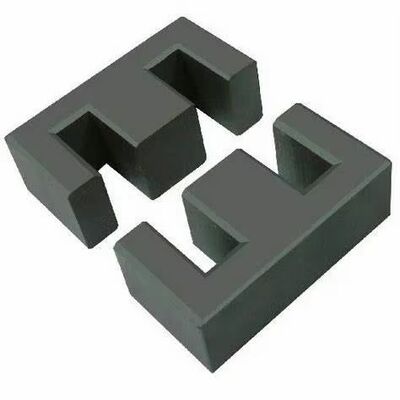

EF20-JP4 EMC Anti-interference Ferrite Core For Power Supply Filter RoHS REACH Compliant
  • Name
  • Name
  • Name

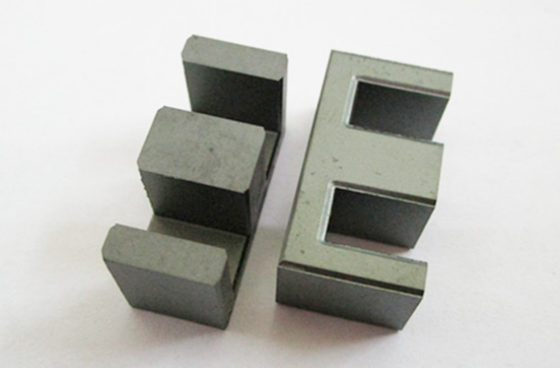

EF20-JP4 EMC Anti-interference Ferrite Core For Power Supply Filter RoHS REACH Compliant

Brand Name: VIIP WeiAiPu
Model Number: EF20-JP4
MOQ: 1000
Price: 0.05
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ROHS REACH
Document:
EF20-JP4 Rev 4.0.pdf
Insulation Resistance:
≥100MΩ
Storage Temperature:
-40℃~+85℃
Material:
Metal And Plastic
Temperature Range:
-20 /+80 OC
Dimensions:
Varies By Model, Typically 50mm X 30mm X 20mm
Operating Frequency:
50/60HZ
Port:
Shenzhen
Dielectric Strength:
1500V AC
Operating Temperature:
-40℃~+85℃
Mounting Type:
Panel Mount / PCB Mount
Frequency Range:
150 KHz To 30 GHz
Input Impedance:
50Ω
Operatingvoltage:
250V AC / 440V DC
Insulationresistance:
≥100MΩ At 500V DC
Humidity:
≤95%RH
Supply Ability:
20000 pcs within 2 days
Product Description
Product Overview

EF20-JP4 ferrite core is a high-performance EMC anti-interference magnetic core launched by VIIP Electronics. It is manufactured in accordance with Rev 4.0 official specification, made of premium YR28 ferrite material, fully compliant with RoHS & REACH environmental standards. With precise dimensional tolerance, stable inductance parameter and low power consumption, this core delivers excellent electromagnetic suppression performance and long-term working reliability.

Electrical & Physical Features
  • Model: EF20-JP4
  • Material Grade: YR28
  • Inductance factor: AL 1700±25% nH/N² (1KHz, 0.3V, 25±3℃)
  • Strict size tolerance and consistent raw embryo weight
  • Zero air gap design, stable magnetic conductivity
  • Good high temperature resistance and low loss performance
  • Environmentally friendly, RoHS & REACH certified
Main Applications

Perfectly suitable for:

  • Power supply filter circuits
  • EMI / EMC interference suppression
  • Electronic circuit EMC design & debugging
  • Power adapters, home appliances
  • Industrial control equipment, digital electronic products
  • Various electromagnetic interference prevention scenarios
Stock & Supply Advantage
  • Ready Stock: 30,000 pieces available in warehouse
  • Unit Price: USD 0.04 per piece
  • Fast Delivery: Goods can be shipped within 3 working days
  • Quality inspected one by one before delivery
  • Support mixed batch order and long-term stable supply
  • Professional EMC design technical consultation service provided
Why Choose Us

We are a professional manufacturer focusing on EMI filter, EMC ferrite core and EMC design rectification service. All products follow standard technical specifications, with stable quality, competitive factory price and fast delivery cycle. We support global wholesale and distribution, welcome customers to send inquiries for cooperation.

EF20-JP4 EMC Anti-interference Ferrite Core For Power Supply Filter RoHS REACH Compliant 0
