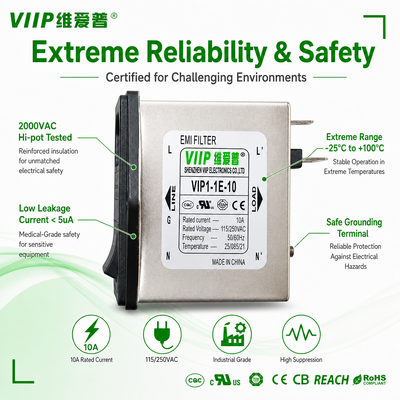

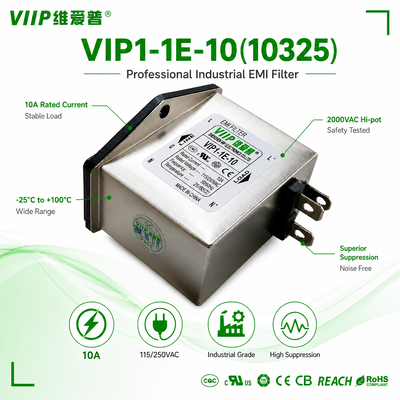

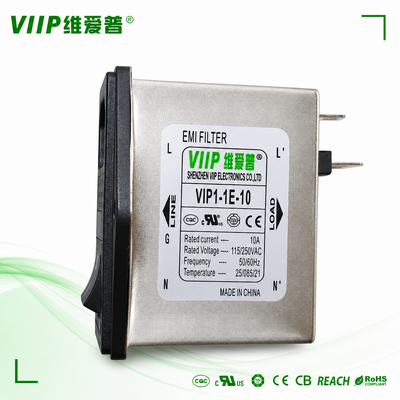

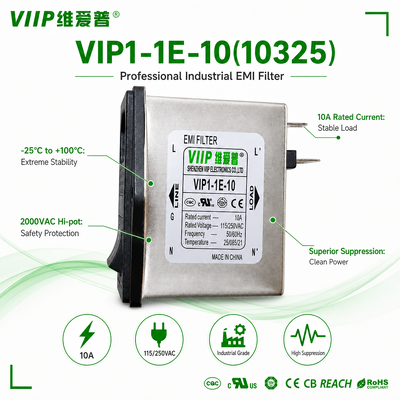

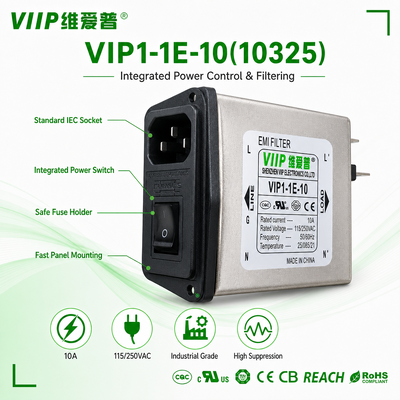

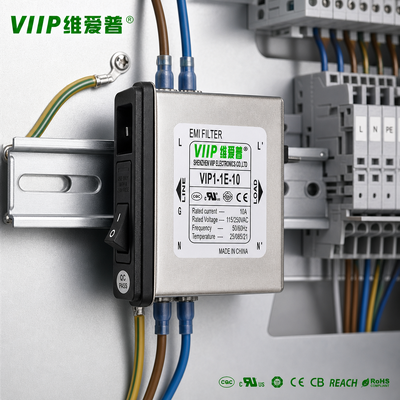

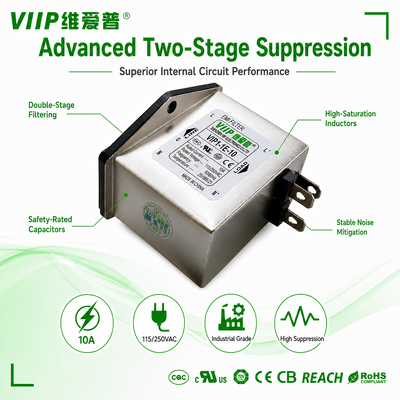

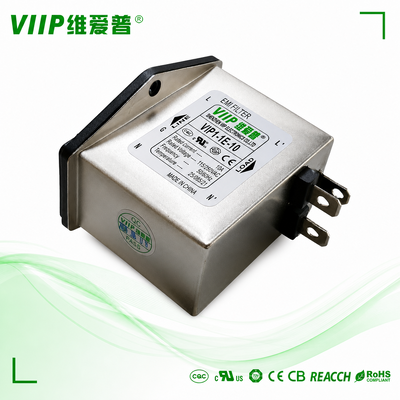

The VIP1‑1E‑10(10325) is a 3‑in‑1 integrated power entry module manufactured by VIIP (Shenzhen VIIP Electronics). This single‑phase EMI filter combines standard IEC C14 inlet socket, dual‑fuse over‑current protection, power switch and EMI filtering circuit within one compact metal‑shielded housing.

Panel‑mount design for front‑panel installation, with 6.3mm fast‑on terminals for output connection. It delivers effective common‑mode & differential‑mode noise attenuation against power‑line electromagnetic interference. Ultra‑low leakage current, high insulation resistance and wide operating temperature range guarantee stable performance for sensitive electronic devices. Fully complies with CE, RoHS and REACH environmental requirements.

• Original VIIP manufactured component, model VIP1‑1E‑10 part number 10325

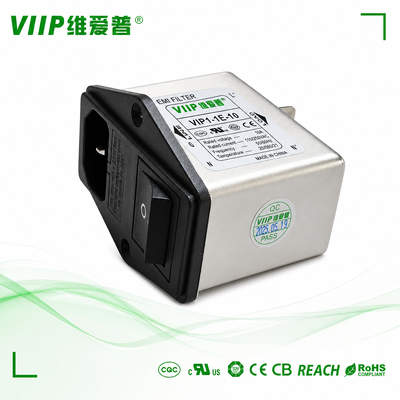

• Standard IEC C14 inlet port, compatible with universal international AC power cords
• Integrated rocker switch cuts off L & N simultaneously for complete power disconnection

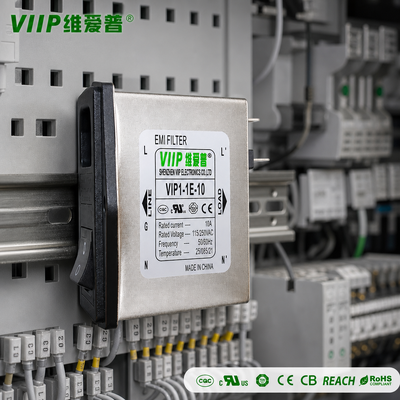

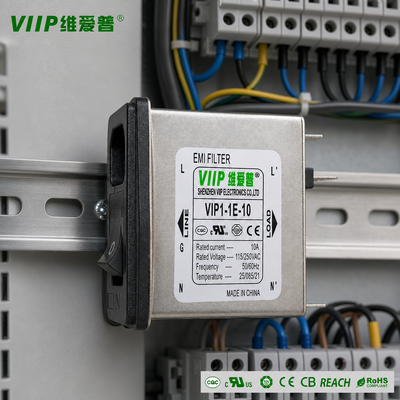

• Suitable for high‑power test instruments, industrial automation, laboratory equipment and medical‑related electronics
• Consistent filtering performance under continuous long‑duration running for 24‑hour non‑stop operating equipment
• Pre‑validated electrical parameters, supports customer EMC pre‑testing and certification application work

• Medical electronic equipment (patient monitors, diagnostic instruments, lab test devices)
• Test & measuring instruments, laboratory analysis equipment
• Industrial automation control devices
• Telecommunication & IT equipment
• Audio‑visual & precision electronic apparatus
• Other sensitive electronic devices requiring EMC compliance & power‑line noise filtering

Product Overview: High-performance single-phase EMI filter, compliant with international standards

Technical Support: Refer to the datasheet and installation manual for full specs, wiring diagrams, and safety guidelines

Installation: Must be performed by qualified personnel; ensure proper grounding and secure connections per applicable electrical codes

Maintenance: Regular inspection recommended to maintain filter efficiency and extend product lifespan

Troubleshooting: Verify wiring, check for physical damage, and confirm operating conditions meet specifications

Custom Solutions: Tailored EMI filter options available, including product testing and certification support

For standard off-the-shelf VIP4 series models, low MOQ is acceptable. Stock items support small-batch trial orders; for bulk mass production orders, MOQ will be based on production arrangement. Contact our sales team for detailed MOQ information.

Yes, sample service is available. Standard VIP4 models can be supplied as samples for your lab EMC validation and performance verification. Sample freight will be borne by the buyer.

VIP4 series single-phase filters are rated at 115/250VAC, operating frequency 50/60Hz. Different part numbers support different rated current from 1A-10A (for example VIP4-2B-10 is 10A model). Please refer to the product approval sheet for exact parameter of each model.

Yes. Insertion-loss data under 50Ω standard test system is included in each model's approval sheet. We can provide test curves for common-mode and differential-mode noise attenuation for your circuit simulation and EMC evaluation.

Every finished VIP4 filter undergoes hip-pot withstand voltage test for 1 minute as per specification, together with insulation resistance test (≥100MΩ @500VDC input/output to ground). Full test specification is shown on the approval sheet.

Yes, our in-house EMC engineering team can offer technical support. Please share your test report, application condition and circuit information, we will analyze and give suggestions for improvement or model adjustment.

Sure. Please provide key information including working voltage, rated current, equipment type, main noise frequency and installation condition. Our team will help you pick the most suitable filter solution for your system.
