VIIP VIP1-1E-10 10325 IEC Inlet EMI Power Filter 10A 115/250VAC 3-in-1 Dual Fuse Switch Module, Ultra-Low Leakage EMC Filter

Brand Name:	Weiaipu
Model Number:	VIP1-1E-10(10325)
MOQ:	112PCS
Price:	8-10USD
Packaging Details:	Carton
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Shen Zhen

Certification:

CQC CE ROHS TUV CB REACH UL

Part Number:

VIP1-1E-10(10325)

Brand:

VIIP Weiaipu

Manufacturer:

Shenzhen VIIP Electronics Co.,Ltd.

Rated Voltage:

115/250 VAC

Rated Current:

10 A RMS Max

Operating Frequency:

50/60 Hz

Supply Ability:

3000PCS/WEEK

Highlight:

IEC EMI power filter with dual fuse

Ultra-low leakage EMC filter

10A 115/250VAC IEC inlet module

Product Description

VIIP VIP1-1E-10 10325 IEC Inlet EMI Power Filter 10A 115/250VAC 3-in-1 Dual Fuse Switch Module

Product Overview

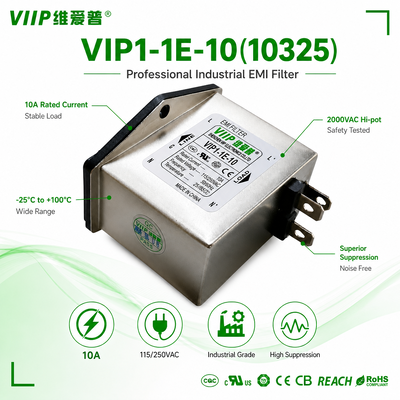

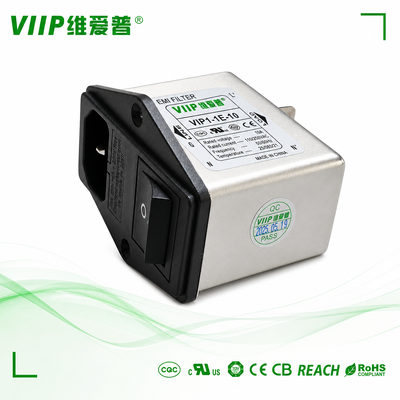

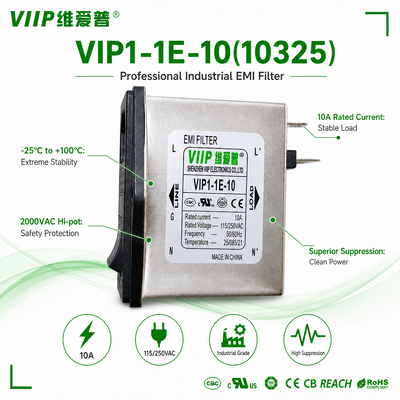

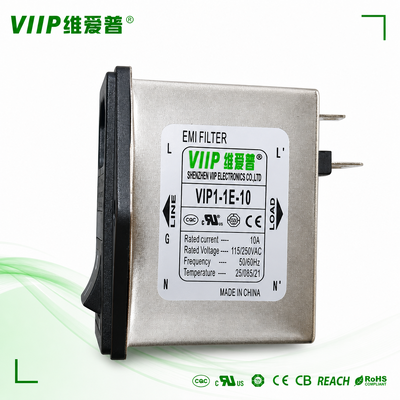

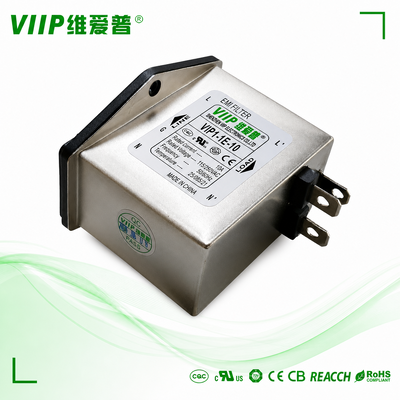

The VIP1‑1E‑10(10325) is a 3‑in‑1 integrated power entry module manufactured by VIIP (Shenzhen VIIP Electronics). This single‑phase EMI filter combines standard IEC C14 inlet socket, dual‑fuse over‑current protection, power switch and EMI filtering circuit within one compact metal‑shielded housing.

Panel‑mount design for front‑panel installation, with 6.3mm fast‑on terminals for output connection. It delivers effective common‑mode & differential‑mode noise attenuation against power‑line electromagnetic interference. Ultra‑low leakage current, high insulation resistance and wide operating temperature range guarantee stable performance for sensitive electronic devices. Fully complies with CE, RoHS and REACH environmental requirements.

Product Highlights

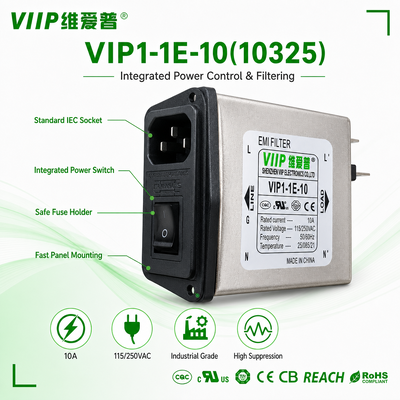

3‑in‑1 integrated power entry module: IEC C14 inlet, rocker power switch and dual fuses in one compact unit, saving internal cabinet space
Rated up to 10A RMS at 115/250VAC single‑phase AC, fits high‑current industrial and instrument power supply scenarios

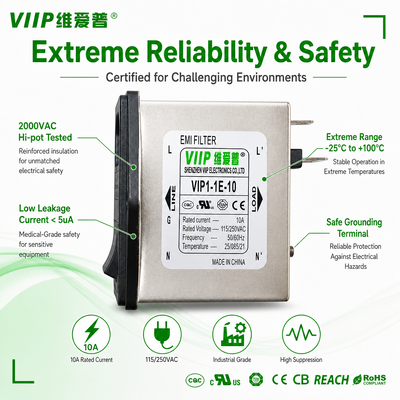

Extremely ultra‑low leakage current: max 2.0μA @115VAC/60Hz, max 5.0μA @250VAC/50Hz, ideal for medical and safety‑critical devices
Single‑stage LC filter topology, provides both common‑mode and differential‑mode EMI noise attenuation for AC power lines
High insulation resistance ≥100 MΩ @500VDC between input/output and ground terminal for enhanced electrical safety

Electrical Characteristics

Item	Specifications
Model No	VIP1‑1E‑10(10325)
Rated Voltage	115/250 VAC
Rated Current	10 A RMS Max.
Operating Frequency	50 / 60 Hz
Insulation Resistance	≥100 MΩ @500 VDC (Input / Output to Ground)
Hi‑pot Test	1 minute withstand test (per safety specification)
Operating Temperature	‑25 °C ~ +100 °C
Insertion Loss	Measured under 50‑Ohm test system (data for reference only)

Applications

Medical electronic equipment (patient monitors, diagnostic instruments, lab test devices)
Test & measuring instruments, laboratory analysis equipment
Industrial automation control devices
Telecommunication & IT equipment
Audio‑visual & precision electronic apparatus
Other sensitive electronic devices requiring EMC compliance & power‑line noise filtering

Product Documentation

Support and Services

Product Overview: High-performance single-phase EMI filter, compliant with international standards

Technical Support: Refer to the datasheet and installation manual for full specs, wiring diagrams, and safety guidelines

Installation: Must be performed by qualified personnel; ensure proper grounding and secure connections per applicable electrical codes

Maintenance: Regular inspection recommended to maintain filter efficiency and extend product lifespan

Troubleshooting: Verify wiring, check for physical damage, and confirm operating conditions meet specifications

Custom Solutions: Tailored EMI filter options available, including product testing and certification support

Frequently Asked Questions

What is your MOQ for VIP4-series power filters?

For standard off-the-shelf VIP4 series models, low MOQ is acceptable. Stock items support small-batch trial orders; for bulk mass production orders, MOQ will be based on production arrangement. Contact our sales team for detailed MOQ information.

Can I get samples of VIP4-series filters for my internal EMC performance pre-test?

Yes, sample service is available. Standard VIP4 models can be supplied as samples for your lab EMC validation and performance verification. Sample freight will be borne by the buyer.

What are the rated voltage, rated current and operating frequency for VIP4-series power filters?

VIP4 series single-phase filters are rated at 115/250VAC, operating frequency 50/60Hz. Different part numbers support different rated current from 1A-10A (for example VIP4-2B-10 is 10A model). Please refer to the product approval sheet for exact parameter of each model.

Can you provide insertion-loss curves including common-mode and differential-mode performance for VIP4-series filters?

Yes. Insertion-loss data under 50Ω standard test system is included in each model's approval sheet. We can provide test curves for common-mode and differential-mode noise attenuation for your circuit simulation and EMC evaluation.

What is the hip-pot (high-potential) test standard for VIP4-series power filters?

Every finished VIP4 filter undergoes hip-pot withstand voltage test for 1 minute as per specification, together with insulation resistance test (≥100MΩ @500VDC input/output to ground). Full test specification is shown on the approval sheet.

If my product fails during EMC testing after using VIP4 filters, can you provide technical support?

Yes, our in-house EMC engineering team can offer technical support. Please share your test report, application condition and circuit information, we will analyze and give suggestions for improvement or model adjustment.

Could you help select proper VIP-series filter model for my specific application such as inverter, servo drive or control cabinet?

Sure. Please provide key information including working voltage, rated current, equipment type, main noise frequency and installation condition. Our team will help you pick the most suitable filter solution for your system.
