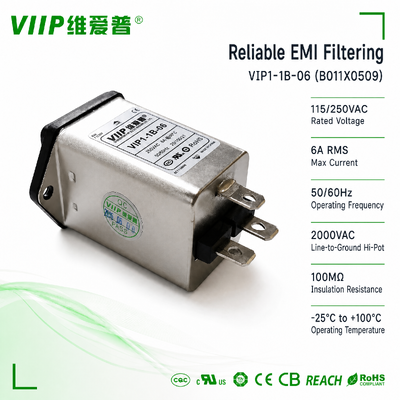

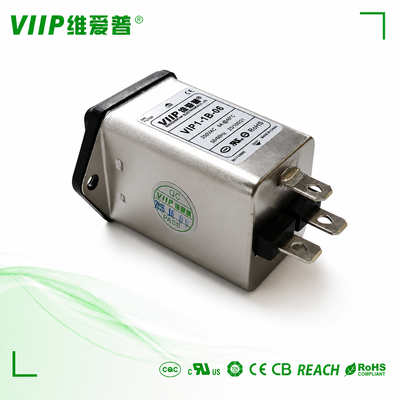

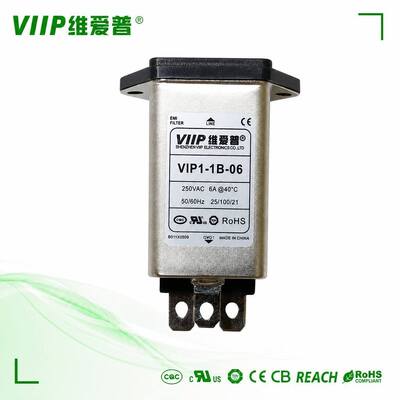

VIP1-1B-06 B011X0509 VIIP EMI Power Entry Module 115/250VAC 6A Dual Fuse Panel Mount EMC Noise Filter

Brand Name:	Weiaipu
Model Number:	VIP1-1B-06 (B011X0509)
MOQ:	175PCS
Price:	6.16USD
Packaging Details:	Carton
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Shen Zhen

Certification:

CQC CE ROHS TUV CB REACH UL

Brand:

VIIP Weiaipu

Rated Current:

6 A RMS Max

Part Number:

VIP1-1B-06 (B011X0509)

Operating Frequency:

50/60 Hz

Manufacturer:

Shenzhen VIIP Electronics Co.,Ltd.

Rated Voltage:

115/250 VAC

Supply Ability:

3000PCS/WEEK

Highlight:

EMI power entry module with dual fuse

VIIP EMC noise filter 6A

panel mount EMI filter 115/250VAC

Product Description

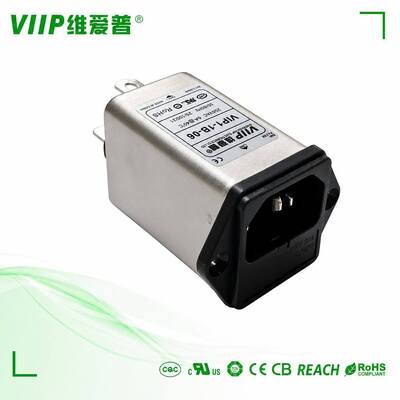

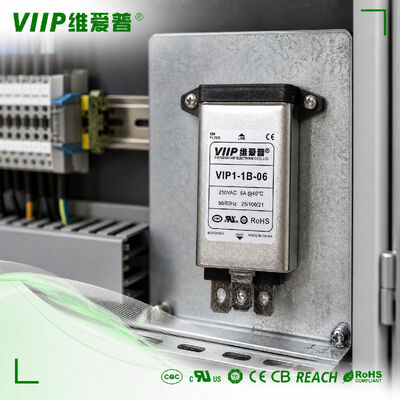

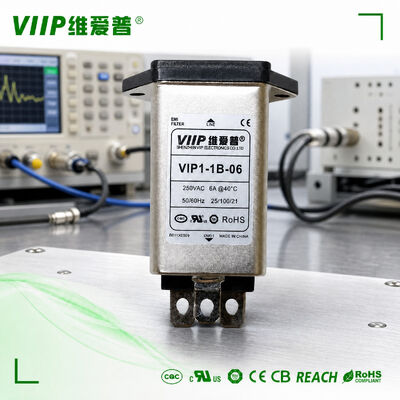

VIP1-1B-06 B011X0509 VIIP EMI Power Entry Module

Single Phase 6A AC EMI Filter VIP1-1B-06 (B011X0509)

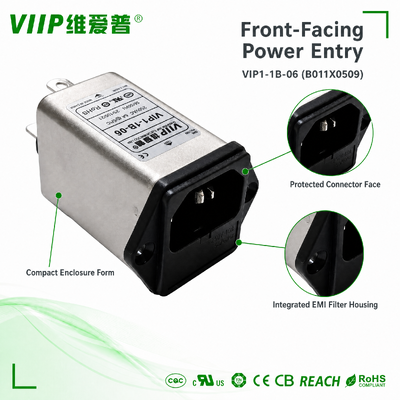

VIIP VIP1-1B-06 B011X0509 6A Dual Fuse EMI Power Filter. This single-phase AC IEC inlet EMI power filter integrates an IEC C14 socket and EMI filter circuit into one compact metal-shielded housing. The 6A rated filter suppresses both common-mode and differential-mode conducted noise on AC power lines, helping your equipment pass EMC compliance tests efficiently.

Product Highlights

Complete insertion-loss performance to restrain power-line interference from external grid
Effectively suppress noise generated by internal equipment to avoid interfering with surrounding devices
Compact overall dimension, saves internal cabinet space of end products

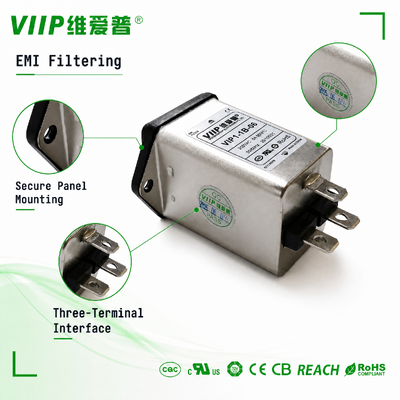

Standard panel cut-out size, compatible with most equipment enclosure mounting holes
Strict one-minute high-potential withstand test for stable electrical performance

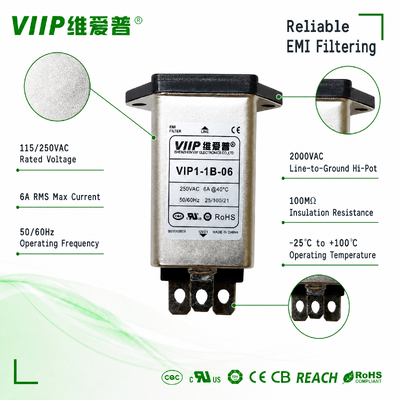

Electrical Characteristics

Item	Specification
Model	VIP1-1B-06 (B011X0509)
Rated Voltage	115 / 250 VAC
Rated Current	6A @ 50/60Hz
Operating Frequency	50 / 60 Hz
Leakage Current (LN to PE)	≤0.45mA @250VAC
Withstand Voltage	Line-Ground: 2000VAC; Line-Line: 1450VAC
Operating Temperature	-25℃ ~ +85℃
Filter Topology	Single stage low-pass EMI filter

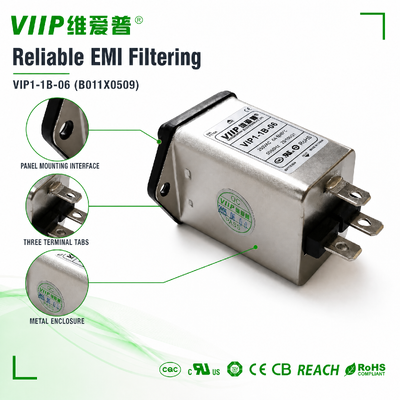

Housing	Metal shielded enclosure

Applications

Medical instruments & diagnostic equipment
Industrial test & measurement instruments
Automation control equipment
Lab analytical devices
Office & IT electronic equipment
Precision power supplies
Audio & visual professional equipment
Household medical & health-care devices

Product Documentation

Support and Services

Product Overview: High-performance single-phase EMI filter, compliant with international standards

Technical Support: Refer to datasheet and installation manual for full specifications, wiring diagrams, and safety guidelines

Installation: Must be performed by qualified personnel with proper grounding and secure connections

Maintenance: Regular inspection recommended to maintain filter efficiency and extend lifespan

Troubleshooting: Verify wiring, check for physical damage, and confirm operating conditions meet specifications

Custom Solutions: Tailored EMI filter options available with product testing and certification support

Frequently Asked Questions

What is your MOQ for VIP4-series power filters?

For standard off-the-shelf VIP4 series models, low MOQ is acceptable. Stock items support small-batch trial orders; for bulk mass production orders, MOQ will be based on production arrangement.

Can I get samples for internal EMC performance pre-test?

Yes, sample service is available. Standard VIP4 models can be supplied as samples for lab EMC validation and performance verification.

What are the electrical specifications for VIP4-series filters?

VIP4 series single-phase filters are rated at 115/250VAC, operating frequency 50/60Hz. Different part numbers support rated currents from 1A-10A.

Can you provide insertion-loss curves?

Yes. Insertion-loss data under 50Ω standard test system is included in each model's approval sheet with test curves for common-mode and differential-mode noise attenuation.

What is the hip-pot test standard?

Every finished VIP4 filter undergoes hip-pot withstand voltage test for 1 minute as per specification, together with insulation resistance test (≥100MΩ @500VDC input/output to ground).

Technical support for EMC test failures?

Yes, our in-house EMC engineering team can offer technical support. Please share your test report, application condition and circuit information for analysis and improvement suggestions.

Help selecting proper filter model for specific applications?

Sure. Please provide key information including working voltage, rated current, equipment type, main noise frequency and installation condition for suitable filter solution recommendations.
