VIIP VIP1-1B-06 B011X0509 115/250VAC Dual Fuse Power Entry EMI Filter Panel-mount Noise Reduction Filter

All Category

Flat Ferrite Core

Miss. Vicky Lee

vip6@szviip.com

19925448748

19925448748

Contact Now

VIIP VIP1-1B-06 B011X0509 115/250VAC Dual Fuse Power Entry EMI Filter Panel-mount Noise Reduction Filter

Brand Name:	Weiaipu
Model Number:	VIP1-1B-06 (B011X0509)
MOQ:	175PCS
Price:	6.16USD
Packaging Details:	Carton
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Shen Zhen

Certification:

CQC CE ROHS TUV CB REACH UL

Part Number:

VIP1-1B-06 (B011X0509)

Brand:

VIIP Weiaipu

Manufacturer:

Shenzhen VIIP Electronics Co.,Ltd.

Rated Voltage:

115/250 VAC

Rated Current:

6 A RMS Max

Operating Frequency:

50/60 Hz

Supply Ability:

3000PCS/WEEK

Highlight:

dual fuse power entry EMI filter

panel-mount EMI noise reduction filter

115/250VAC EMI filter with warranty

Product Description

VIIP VIP1-1B-06 B011X0509 115/250VAC Dual Fuse Power Entry EMI Filter Panel-mount Noise Reduction Filter

VIIP VIP1-1B-06 B011X0509 6A Dual Fuse EMI Power Filter

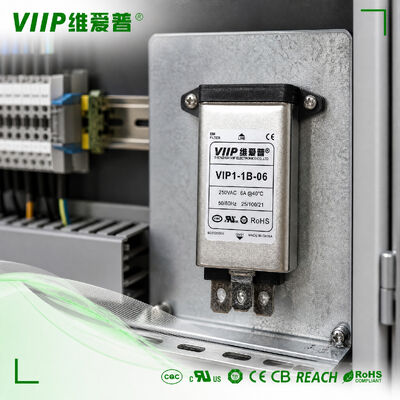

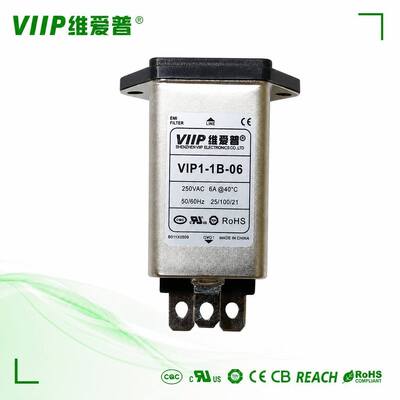

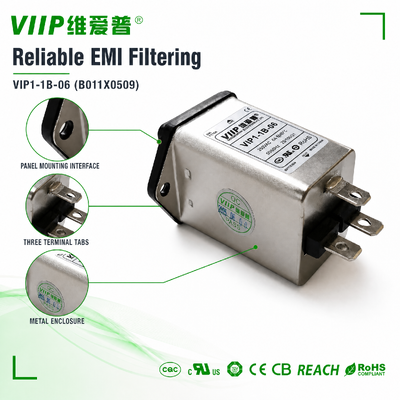

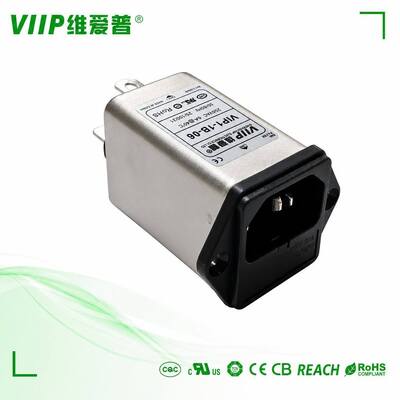

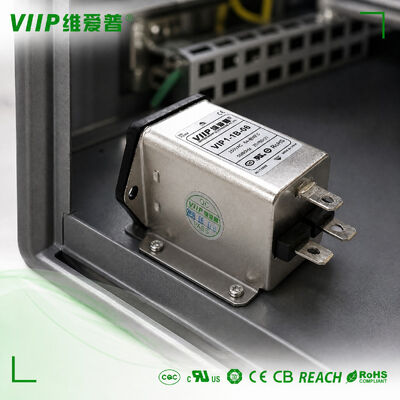

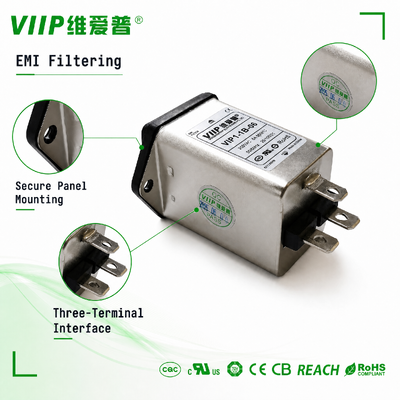

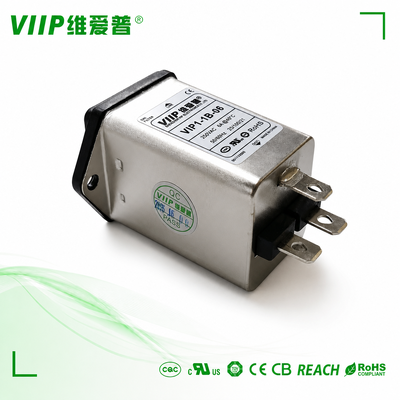

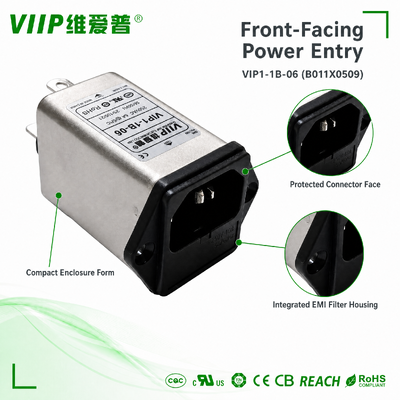

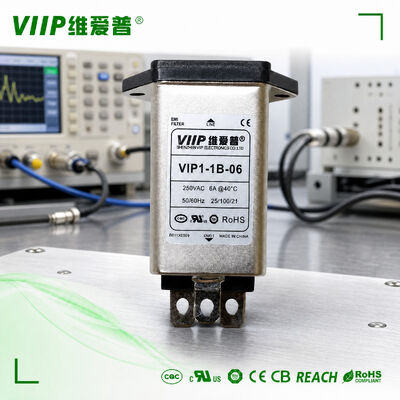

VIP1-1B-06 (B011X0509) is a single-phase AC IEC inlet EMI power filter developed by Shenzhen VIIP Electronics. It integrates an IEC C14 socket and EMI filter circuit into one compact metal-shielded housing. This 6A rated filter suppresses both common-mode and differential-mode conducted noise on AC power lines, helping your equipment pass EMC compliance tests efficiently. Built with internal fuse protection, it simplifies power entry design for end products and saves PCB layout space.

Product Highlights

Provides well-balanced attenuation performance across broadband frequency range from 0.15MHz up to 30MHz
Effectively lowers conducted interference to help end devices pass EMC related noise test requirements
Integrated resistive discharge circuit helps release residual voltage after power-off for higher operational safety
Optimized internal circuit layout minimizes signal crosstalk and guarantees stable filtering output
Supports large-volume OEM & ODM demands for customized power entry filter solutions

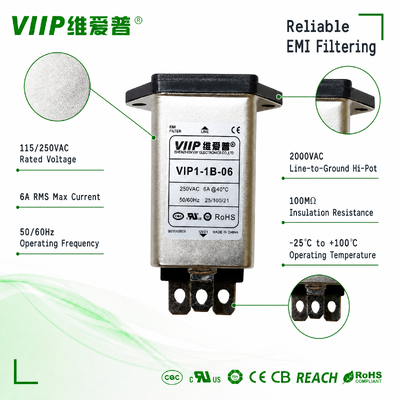

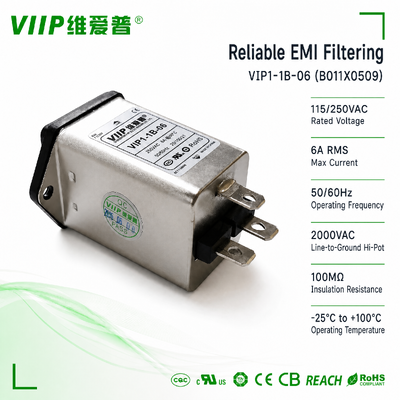

Electrical Characteristics

Item	Specification
Model	VIP1-1B-06 (B011X0509)
Rated Voltage	115 / 250 VAC
Rated Current	6A @ 50/60Hz
Operating Frequency	50 / 60 Hz
Leakage Current (LN to PE)	≤0.45mA @250VAC
Withstand Voltage	Line-Ground: 2000VAC; Line-Line:1450VAC
Operating Temperature	-25℃ ~ +85℃
Filter Topology	Single stage low-pass EMI filter
Housing	Metal shielded enclosure

Applications

Medical instruments & diagnostic equipment
Industrial test & measurement instruments
Automation control equipment
Lab analytical devices
Office & IT electronic equipment
Precision power supplies
Audio & visual professional equipment
Household medical & health-care devices

Product Documentation

Support and Services

Product Overview: High-performance single-phase EMI filter, compliant with international standards

Technical Support: Refer to the datasheet and installation manual for full specs, wiring diagrams, and safety guidelines

Installation: Must be performed by qualified personnel; ensure proper grounding and secure connections per applicable electrical codes

Maintenance: Regular inspection recommended to maintain filter efficiency and extend product lifespan

Troubleshooting: Verify wiring, check for physical damage, and confirm operating conditions meet specifications

Custom Solutions: Tailored EMI filter options available, including product testing and certification support

Frequently Asked Questions

What is your MOQ for VIP4-series power filters?

For standard off-the-shelf VIP4 series models, low MOQ is acceptable. Stock items support small-batch trial orders; for bulk mass production orders, MOQ will be based on production arrangement. Contact our sales team for detailed MOQ information.

Can I get samples of VIP4-series filters for my internal EMC performance pre-test?

Yes, sample service is available. Standard VIP4 models can be supplied as samples for your lab EMC validation and performance verification. Sample freight will be borne by the buyer.

What are the rated voltage, rated current and operating frequency for VIP4-series power filters?

VIP4 series single-phase filters are rated at 115/250VAC, operating frequency 50/60Hz. Different part numbers support different rated current from 1A-10A (for example VIP4-2B-10 is 10A model). Please refer to the product approval sheet for exact parameter of each model.

Can you provide insertion-loss curves including common-mode and differential-mode performance for VIP4-series filters?

Yes. Insertion-loss data under 50Ω standard test system is included in each model's approval sheet. We can provide test curves for common-mode and differential-mode noise attenuation for your circuit simulation and EMC evaluation.

What is the hip-pot (high-potential) test standard for VIP4-series power filters?

Every finished VIP4 filter undergoes hip-pot withstand voltage test for 1 minute as per specification, together with insulation resistance test (≥100MΩ @500VDC input/output to ground). Full test specification is shown on the approval sheet.

If my product fails during EMC testing after using VIP4 filters, can you provide technical support?

Yes, our in-house EMC engineering team can offer technical support. Please share your test report, application condition and circuit information, we will analyze and give suggestions for improvement or model adjustment.

Could you help select proper VIP-series filter model for my specific application such as inverter, servo drive or control cabinet?

Sure. Please provide key information including working voltage, rated current, equipment type, main noise frequency and installation condition. Our team will help you pick the most suitable filter solution for your system.
