Single Phase 6A AC EMI Filter VIP1-1B-06(B011X0509) Dual Fuse IEC Inlet Power Filter for Electronic Device EMC Compliance

Brand Name: Weiaipu
Model Number: VIP1-1B-06 (B011X0509)
MOQ: 175PCS
Price: 6.16USD
Packaging Details: Carton
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
Shen Zhen
Certification:
CQC CE ROHS TUV CB REACH UL
Part Number:
VIP1-1B-06 (B011X0509)
Brand:
VIIP Weiaipu
Manufacturer:
Shenzhen VIIP Electronics Co.,Ltd.
Rated Voltage:
115/250 VAC
Rated Current:
6 A RMS Max
Operating Frequency:
50/60 Hz
Supply Ability:
3000PCS/WEEK
Highlight:

Single Phase 6A AC EMI Filter

,

Dual Fuse IEC Inlet Power Filter

,

EMC Compliance Power Filter

Product Description
Single Phase 6A AC EMI Filter VIP1-1B-06(B011X0509)
VIIP VIP1-1B-06 B011X0509 6A Dual Fuse EMI Power Filter. This single-phase AC IEC inlet EMI power filter integrates an IEC C14 socket and EMI filter circuit into one compact metal-shielded housing. The 6A rated filter suppresses both common-mode and differential-mode conducted noise on AC power lines, helping your equipment pass EMC compliance tests efficiently.
Product Highlights
  • All-in-one power entry solution reduces extra wiring and part count
  • Stable filtering performance under long-term continuous operation
  • Ideal for equipment requiring EMC improvement and noise reduction
  • Dual-fuse structure provides rapid fault current cutoff during overload
  • Mature mass-production design ensures consistent quality for bulk orders

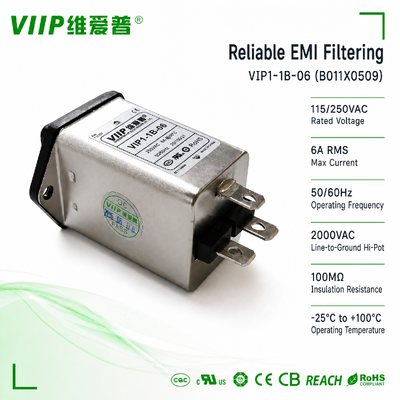

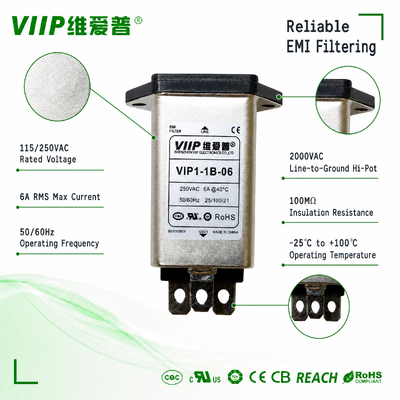

Electrical Characteristics
Item Specification
Model VIP1-1B-06 (B011X0509)
Rated Voltage 115 / 250 VAC
Rated Current 6A @ 50/60Hz
Operating Frequency 50 / 60 Hz
Leakage Current (LN to PE) ≤0.45mA @250VAC
Withstand Voltage Line-Ground: 2000VAC; Line-Line: 1450VAC
Operating Temperature -25℃ ~ +85℃
Filter Topology Single stage low-pass EMI filter
Housing Metal shielded enclosure
Applications
  • Medical instruments & diagnostic equipment
  • Industrial test & measurement instruments
  • Automation control equipment
  • Lab analytical devices
  • Office & IT electronic equipment
  • Precision power supplies
  • Audio & visual professional equipment
  • Household medical & health-care devices
Product Documentation
EMI Filter Technical Diagram

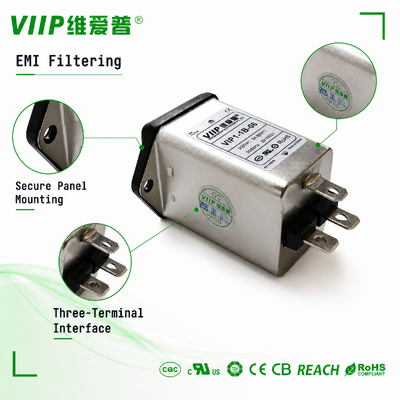

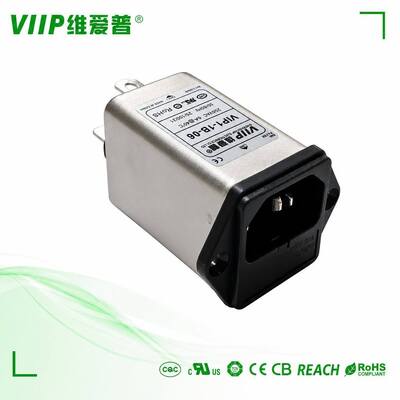

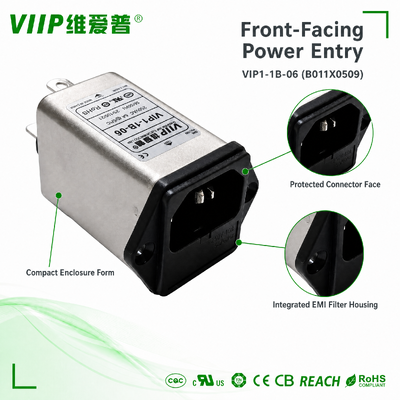

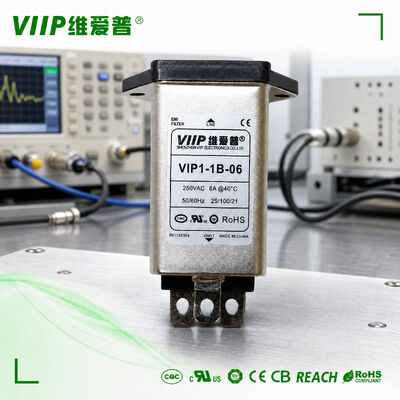

EMI Filter Product View - Front Perspective

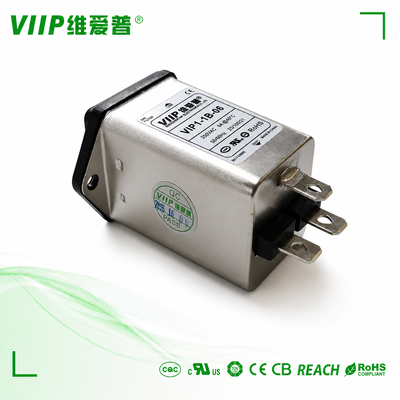

EMI Filter Product View - Side Perspective

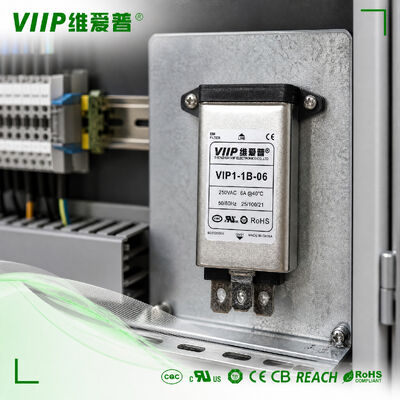

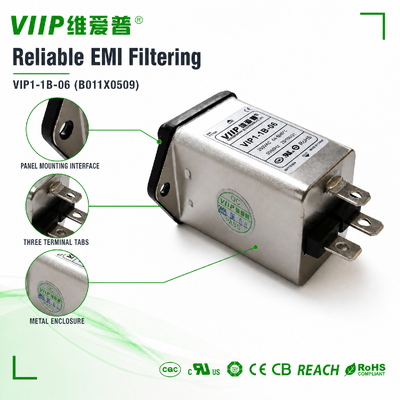

EMI Filter Product View - Mounting Details
EMI Filter Product View - Mounting Details
EMI Filter Technical Diagram
Support and Services
Product Overview: High-performance single-phase EMI filter, compliant with international standards
Technical Support: Refer to datasheet and installation manual for full specifications, wiring diagrams, and safety guidelines
Installation: Must be performed by qualified personnel with proper grounding and secure connections
Maintenance: Regular inspection recommended to maintain filter efficiency and extend lifespan
Troubleshooting: Verify wiring, check for physical damage, and confirm operating conditions meet specifications
Custom Solutions: Tailored EMI filter options available with product testing and certification support
Frequently Asked Questions
What is your MOQ for VIP4-series power filters?
For standard off-the-shelf VIP4 series models, low MOQ is acceptable. Stock items support small-batch trial orders; for bulk mass production orders, MOQ will be based on production arrangement.
Can I get samples for internal EMC performance pre-test?
Yes, sample service is available. Standard VIP4 models can be supplied as samples for lab EMC validation and performance verification.
What are the electrical specifications for VIP4-series filters?
VIP4 series single-phase filters are rated at 115/250VAC, operating frequency 50/60Hz. Different part numbers support rated currents from 1A-10A.
Can you provide insertion-loss curves?
Yes. Insertion-loss data under 50Ω standard test system is included in each model's approval sheet with test curves for common-mode and differential-mode noise attenuation.
What is the hip-pot test standard?
Every finished VIP4 filter undergoes hip-pot withstand voltage test for 1 minute as per specification, together with insulation resistance test (≥100MΩ @500VDC input/output to ground).
Technical support for EMC test failures?
Yes, our in-house EMC engineering team can offer technical support. Please share your test report, application condition and circuit information for analysis and improvement suggestions.
Help selecting proper filter model for specific applications?
Sure. Please provide key information including working voltage, rated current, equipment type, main noise frequency and installation condition for suitable filter solution recommendations.
