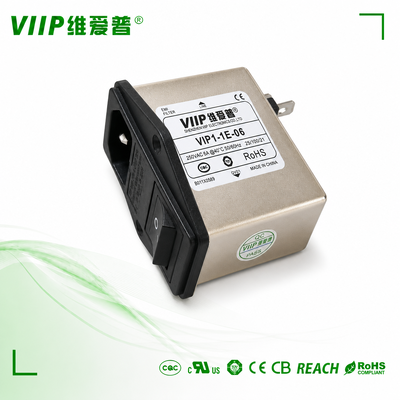

6A IEC Power Inlet EMI Filter VIP1-1E-06 Panel Mount Socket with Dual Fuse & Switch, Ultra-Low Leakage EMC Noise Suppressor

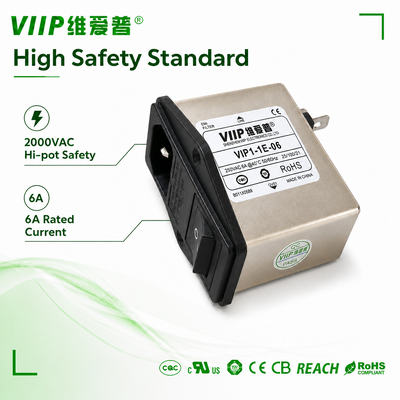

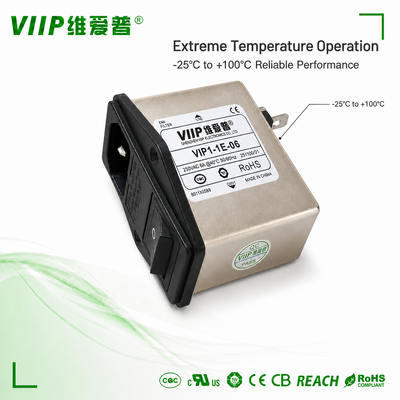

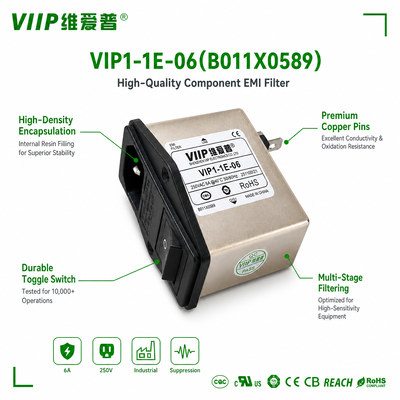

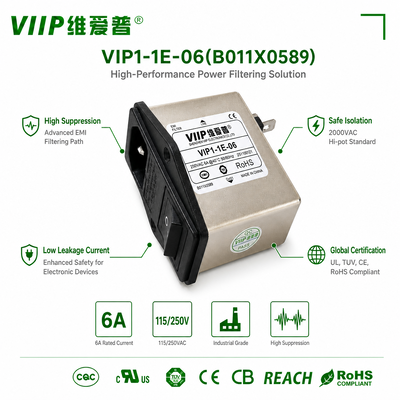

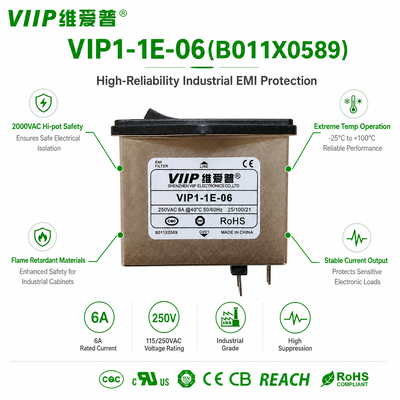

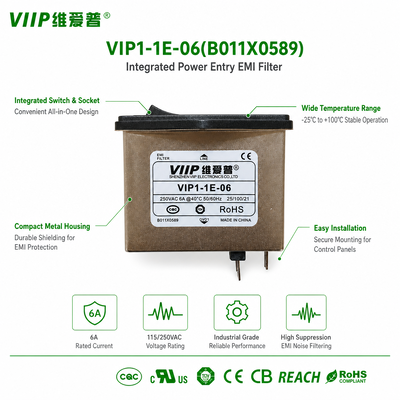

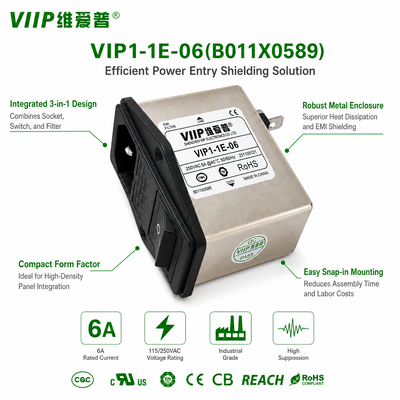

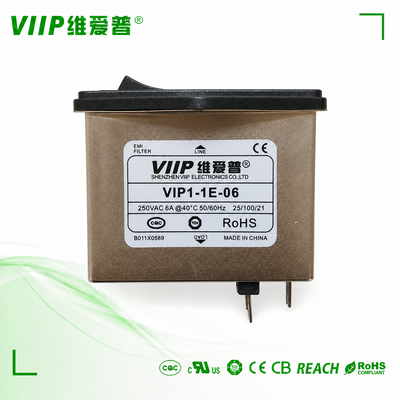

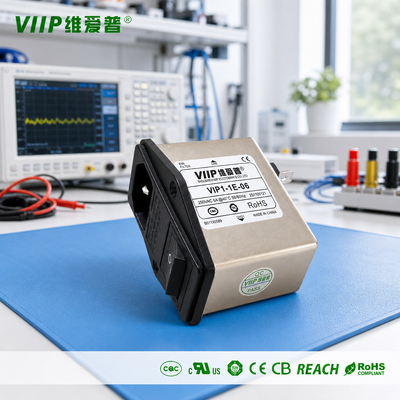

VIIP B011X0589 VIP1-1E-06 EMI Power Entry Filter is a 3-in-1 panel-mount EMI power filter developed by Shenzhen VIIP Electronics. This integrated unit combines an IEC power inlet, power switch, dual-fuse over-current protection and EMC filtering circuit in one compact housing, supporting front-panel installation with fast-on terminals for easy wiring. Rated for 6A RMS at 115/250VAC 50/60Hz, it suppresses both common-mode and differential-mode conductive electromagnetic noise on AC power lines. The device meets RoHS and REACH environmental requirements and features ultra-low leakage current, making it well-suited for safety-critical precision electronic equipment.

• 3-in-1 integrated design: IEC-C14 power inlet, double fuses and power switch combined into one compact unit, saving internal equipment space

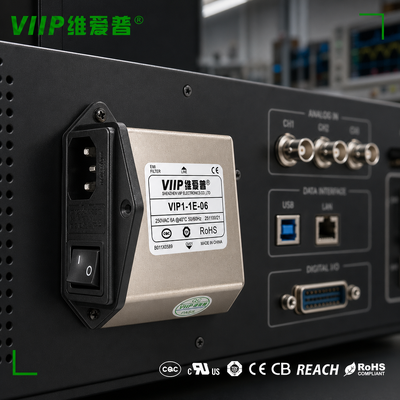

• Panel-mount installation style, fixed via mounting holes on flange, easy for front-panel assembly for end devices
• Rated 6A 115/250VAC single-phase AC, works stably under 50/60Hz mains power supply
• Ultra-low leakage current: max 2μA@115VAC 60Hz, max 5μA@250VAC 50Hz, suitable for high-safety requirement equipment
• Excellent common-mode & differential-mode noise attenuation, effectively suppress conducted EMI interference on AC power lines

• New-energy power conversion & charging devices
• Rail transit on-board electronics
• Semiconductor process manufacturing equipment
• Environmental monitoring instrumentation
• Optoelectronic & precision optical instruments
• Industrial robot servo control systems
• Commercial aerospace electronic assemblies
• Smart lab automated test systems

Product Overview: High-performance single-phase EMI filter, compliant with international standards

Technical Support: Refer to the datasheet and installation manual for full specs, wiring diagrams, and safety guidelines

Installation: Must be performed by qualified personnel; ensure proper grounding and secure connections per applicable electrical codes

Maintenance: Regular inspection recommended to maintain filter efficiency and extend product lifespan

Troubleshooting: Verify wiring, check for physical damage, and confirm operating conditions meet specifications

Custom Solutions: Tailored EMI filter options available, including product testing and certification support

What is your MOQ for VIP4-series power filters?
For standard off-the-shelf VIP4 series models, low MOQ is acceptable. Stock items support small-batch trial orders; for bulk mass production orders, MOQ will be based on production arrangement. Contact our sales team for detailed MOQ information.

Can I get samples of VIP4-series filters for my internal EMC performance pre-test?
Yes, sample service is available. Standard VIP4 models can be supplied as samples for your lab EMC validation and performance verification. Sample freight will be borne by the buyer.

What are the rated voltage, rated current and operating frequency for VIP4-series power filters?
VIP4 series single-phase filters are rated at 115/250VAC, operating frequency 50/60Hz. Different part numbers support different rated current from 1A-10A (for example VIP4-2B-10 is 10A model). Please refer to the product approval sheet for exact parameter of each model.

Can you provide insertion-loss curves including common-mode and differential-mode performance for VIP4-series filters?
Yes. Insertion-loss data under 50Ω standard test system is included in each model's approval sheet. We can provide test curves for common-mode and differential-mode noise attenuation for your circuit simulation and EMC evaluation.

What is the hip-pot (high-potential) test standard for VIP4-series power filters?
Every finished VIP4 filter undergoes hip-pot withstand voltage test for 1 minute as per specification, together with insulation resistance test (≥100MΩ @500VDC input/output to ground). Full test specification is shown on the approval sheet.

If my product fails during EMC testing after using VIP4 filters, can you provide technical support?
Yes, our in-house EMC engineering team can offer technical support. Please share your test report, application condition and circuit information, we will analyze and give suggestions for improvement or model adjustment.

Could you help select proper VIP-series filter model for my specific application such as inverter, servo drive or control cabinet?
Sure. Please provide key information including working voltage, rated current, equipment type, main noise frequency and installation condition. Our team will help you pick the most suitable filter solution for your system.
