3-in-1 IEC Power Entry Module VIP1-1E-06(B011X0589) 6A Single-phase EMI Filter with Fuse Holder & Switch AC 250V Panel Mount

All Category

Flat Ferrite Core

Miss. Vicky Lee

vip6@szviip.com

19925448748

19925448748

Contact Now

3-in-1 IEC Power Entry Module VIP1-1E-06(B011X0589) 6A Single-phase EMI Filter with Fuse Holder & Switch AC 250V Panel Mount

Brand Name:	Weiaipu
Model Number:	VIP1-1E-06(B011X0589)
MOQ:	112PCS
Price:	8-10USD
Packaging Details:	Carton
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Shen Zhen

Certification:

CQC CE ROHS TUV CB REACH UL

Part Number:

VIP1‑1E‑06(B011X0589)

Brand:

VIIP Weiaipu

Manufacturer:

Shenzhen VIIP Electronics Co.,Ltd.

Rated Voltage:

115/250 VAC

Rated Current:

6 A RMS Max

Operating Frequency:

50/60 Hz

Insulation Resistance:

≥100 MΩ @500 VDC (Input / Output To Ground)

Supply Ability:

3000PCS/WEEK

Highlight:

3-in-1 IEC power entry module with fuse holder

Single-phase EMI filter 6A 250V

Panel mount EMI filter with switch

Product Description

3-in-1 IEC Power Entry Module VIP1-1E-06(B011X0589)

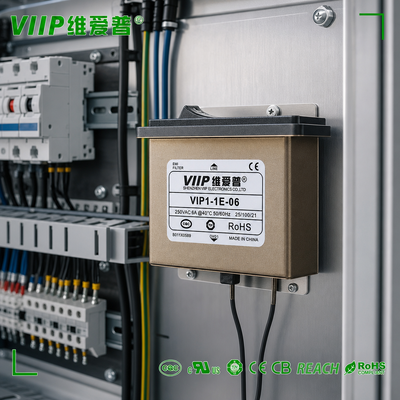

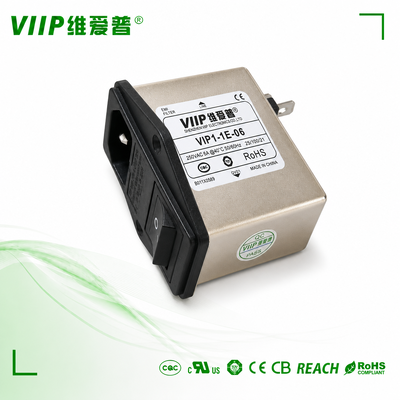

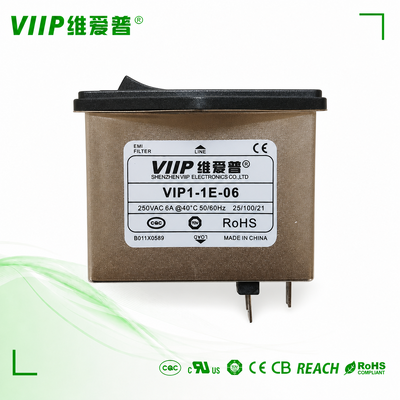

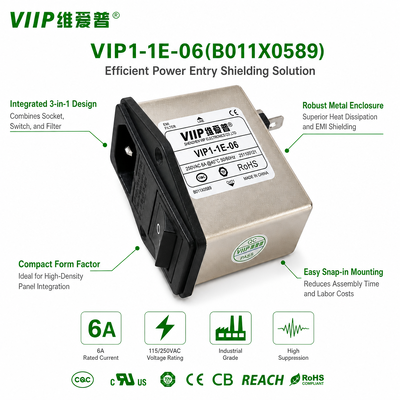

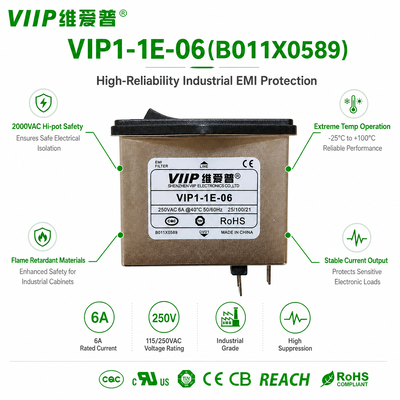

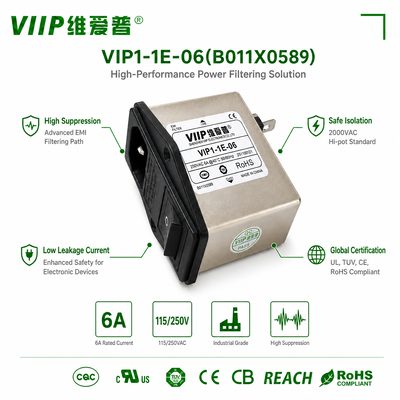

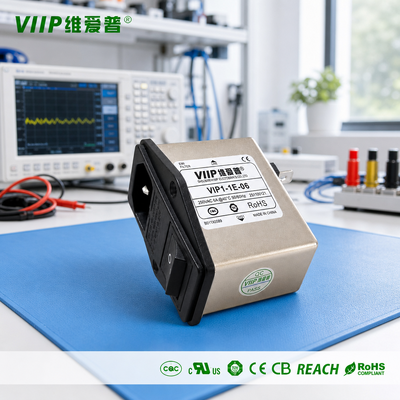

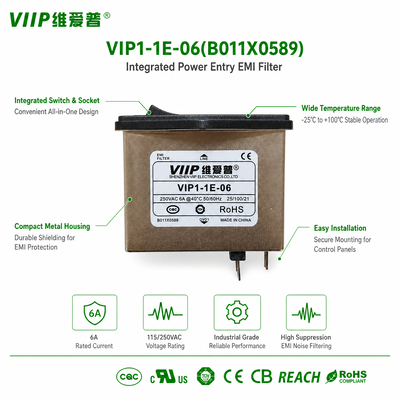

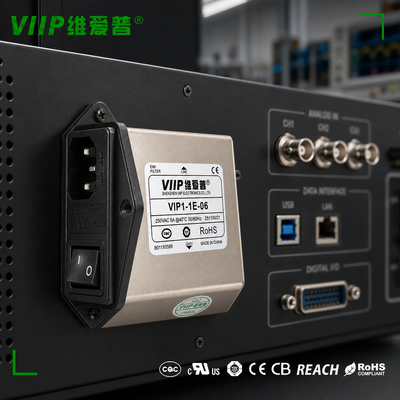

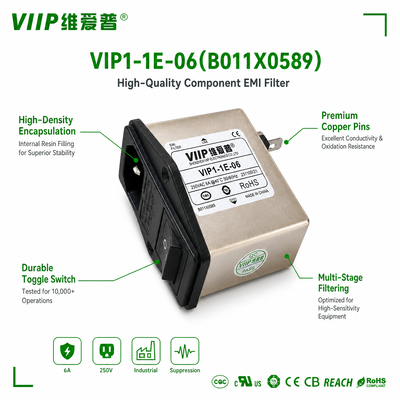

VIIP B011X0589 VIP1-1E-06 EMI Power Entry Filter is a 3-in-1 panel-mount EMI power filter developed by Shenzhen VIIP Electronics. This integrated unit combines an IEC power inlet, power switch, dual-fuse over-current protection and EMC filtering circuit in one compact housing, supporting front-panel installation with fast-on terminals for easy wiring. Rated for 6A RMS at 115/250VAC 50/60Hz, it suppresses both common-mode and differential-mode conductive electromagnetic noise on AC power lines. The device meets RoHS and REACH environmental requirements and features ultra-low leakage current, making it well-suited for safety-critical precision electronic equipment.

Product Highlights

High-performance magnetic core component, stable inductance value, avoid magnetic saturation under rated working current
Clear warning marking printed on housing, reminds users to use 250V rated fuse for correct safe application
Complete official approval sheet Rev4.0 documentation supplied, support customer incoming quality audit

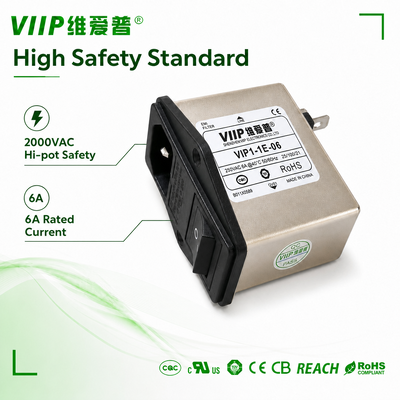

Strict hi-pot high-voltage test passed for 1 minute, guarantee high dielectric strength and electrical safety

Electrical Characteristics

Parameter	Specification
Rated Voltage	115/250 VAC
Rated Current	6 A RMS Max @115 VAC / 250 VAC
Operating Frequency	50 / 60 Hz
Leakage Current	≤2 μA Max @115 VAC,60 Hz ≤5 μA Max @250 VAC,50 Hz
Hi-pot Test	1 minute withstand (Line-to-Line / Line-to-Ground)
Insulation Resistance	≥100 MΩ @500 VDC (Input / Output to Ground)

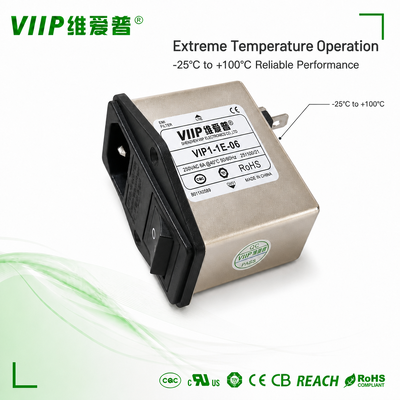

Operating Temperature Range	-25 °C ~ +100 °C
Insertion Loss	Measured under 50-Ω test system, suppress common-mode & differential-mode noise

Applications

Medical and clinical diagnostic devices
Power supply and charging system equipment
Security monitoring & surveillance systems
Factory automation and production test equipment
Audio-visual professional broadcast equipment
Laboratory analytical & scientific instruments
Communication base station auxiliary units
Precision industrial inspection instrumentation
Other devices needing AC line EMI noise mitigation

Product Documentation

Support and Services

Product Overview: High-performance single-phase EMI filter, compliant with international standards

Technical Support: Refer to the datasheet and installation manual for full specs, wiring diagrams, and safety guidelines

Installation: Must be performed by qualified personnel; ensure proper grounding and secure connections per applicable electrical codes

Maintenance: Regular inspection recommended to maintain filter efficiency and extend product lifespan

Troubleshooting: Verify wiring, check for physical damage, and confirm operating conditions meet specifications

Custom Solutions: Tailored EMI filter options available, including product testing and certification support

Frequently Asked Questions

What is your MOQ for VIP4-series power filters?

For standard off-the-shelf VIP4 series models, low MOQ is acceptable. Stock items support small-batch trial orders; for bulk mass production orders, MOQ will be based on production arrangement. Contact our sales team for detailed MOQ information.

Can I get samples of VIP4-series filters for my internal EMC performance pre-test?

Yes, sample service is available. Standard VIP4 models can be supplied as samples for your lab EMC validation and performance verification. Sample freight will be borne by the buyer.

What are the rated voltage, rated current and operating frequency for VIP4-series power filters?

VIP4 series single-phase filters are rated at 115/250VAC, operating frequency 50/60Hz. Different part numbers support different rated current from 1A-10A (for example VIP4-2B-10 is 10A model). Please refer to the product approval sheet for exact parameter of each model.

Can you provide insertion-loss curves including common-mode and differential-mode performance for VIP4-series filters?

Yes. Insertion-loss data under 50Ω standard test system is included in each model's approval sheet. We can provide test curves for common-mode and differential-mode noise attenuation for your circuit simulation and EMC evaluation.

What is the hip-pot (high-potential) test standard for VIP4-series power filters?

Every finished VIP4 filter undergoes hip-pot withstand voltage test for 1 minute as per specification, together with insulation resistance test (≥100MΩ @500VDC input/output to ground). Full test specification is shown on the approval sheet.

If my product fails during EMC testing after using VIP4 filters, can you provide technical support?

Yes, our in-house EMC engineering team can offer technical support. Please share your test report, application condition and circuit information, we will analyze and give suggestions for improvement or model adjustment.

Could you help select proper VIP-series filter model for my specific application such as inverter, servo drive or control cabinet?

Sure. Please provide key information including working voltage, rated current, equipment type, main noise frequency and installation condition. Our team will help you pick the most suitable filter solution for your system.
