VIIP B011X0589 VIP1-1E-06 EMI Power Entry Filter 6A 115-250VAC Panel Mount IEC Socket Integrated Switch Double-fuse Design

Brand Name:	Weiaipu
Model Number:	VIP1-1E-06(B011X0589)
MOQ:	112PCS
Price:	8-10USD
Packaging Details:	Carton
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Shen Zhen

Certification:

CQC CE ROHS TUV CB REACH UL

Part Number:

VIP1‑1E‑06(B011X0589)

Brand:

VIIP Weiaipu

Manufacturer:

Shenzhen VIIP Electronics Co.,Ltd.

Rated Voltage:

115/250 VAC

Rated Current:

6 A RMS Max

Operating Frequency:

50/60 Hz

Insulation Resistance:

≥100 MΩ @500 VDC (Input / Output To Ground)

Supply Ability:

3000PCS/WEEK

Highlight:

EMI power entry filter with IEC socket

Panel mount EMI filter double-fuse design

Single phase EMI filter 6A 115-250VAC

Product Description

VIIP B011X0589 VIP1-1E-06 EMI Power Entry Filter

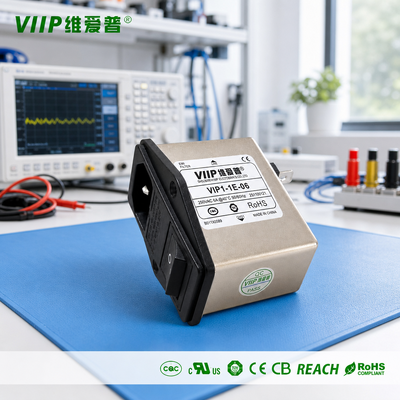

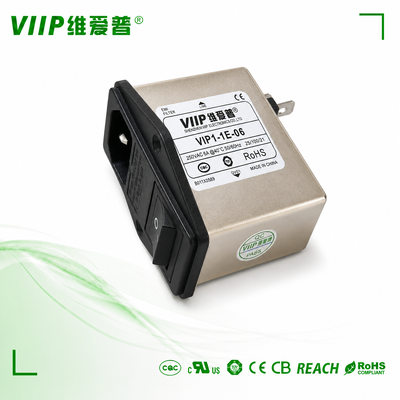

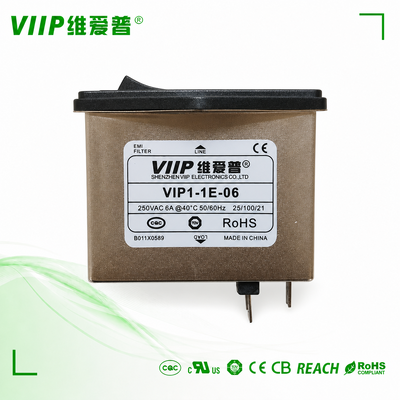

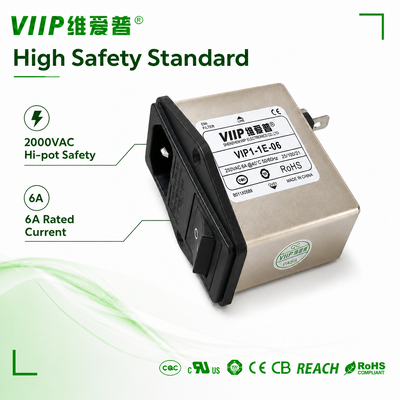

VIP1‑1E‑06 (B011X0589) is a 3‑in‑1 panel‑mount EMI power filter developed by Shenzhen VIIP Electronics. This integrated unit combines an IEC power inlet, power switch, dual‑fuse over‑current protection and EMC filtering circuit in one compact housing, supporting front‑panel installation with fast‑on terminals for easy wiring. Rated for 6A RMS at 115/250VAC 50/60Hz, it suppresses both common‑mode and differential‑mode conductive electromagnetic noise on AC power lines. The device meets RoHS and REACH environmental requirements and features ultra‑low leakage current, making it well‑suited for safety‑critical precision electronic equipment.

Product Highlights

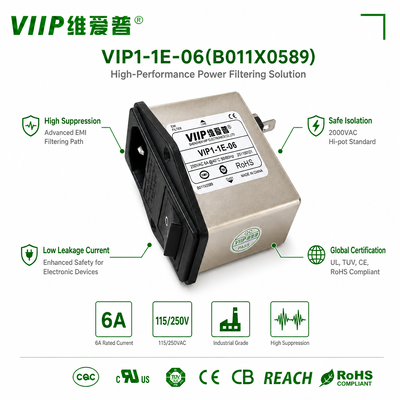

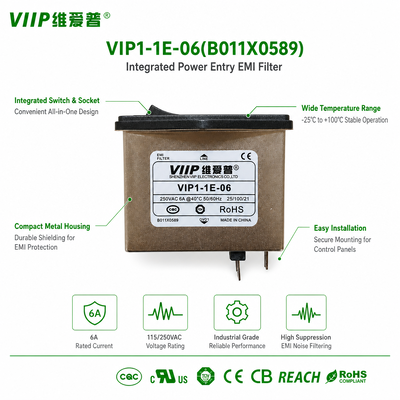

3‑in‑one integrated dual‑fuse design: IEC inlet, switch and dual independent fuse holders integrated into single assembly; dual‑fuse redundant protection enhances over‑current safety and simplifies mechanical assembly.
Ultra‑low leakage current: Max 2 μA @115VAC/60Hz, max 5 μA @250VAC/50Hz, suitable for applications with strict safety requirements such as medical instruments.

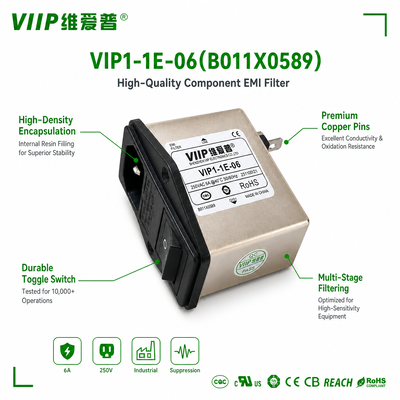

Excellent EMI suppression: Optimized LC filter network delivers high insertion loss under 50‑ohm test system, effectively attenuating power‑line electromagnetic interference over broadband frequency range.

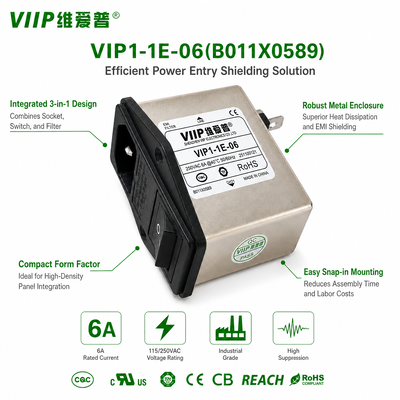

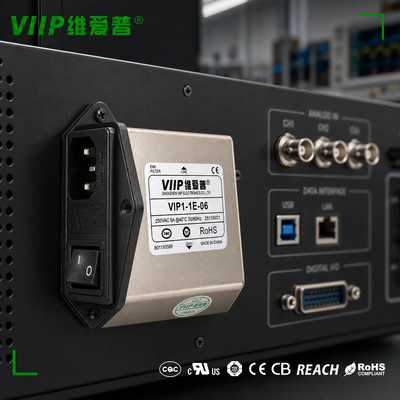

Compact panel‑mount form factor: Front‑panel mounting structure with standard fast‑on terminals (6.3 mm, T=0.8 mm), convenient for cabinet and device integration.

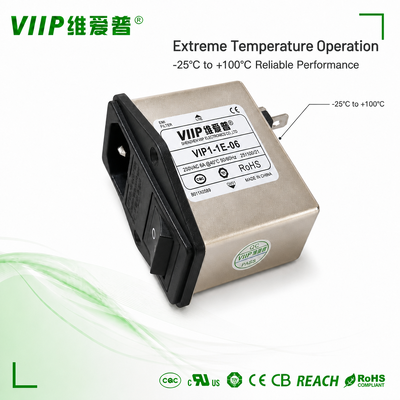

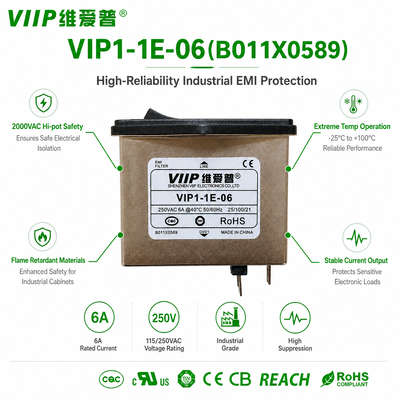

Robust electrical safety performance: Insulation resistance ≥100 MΩ @500 VDC, qualified high‑potential withstand test performance. Wide operating temperature range from ‑25 °C to +100 °C for stable operation under harsh ambient conditions.
Compliance: RoHS & REACH compliant for global market access.

Electrical Characteristics

Parameter	Specification
Rated Voltage	115/250 VAC
Rated Current	6 A RMS Max @115 VAC / 250 VAC
Operating Frequency	50 / 60 Hz
Leakage Current	≤2 μA Max @115 VAC,60 Hz ≤5 μA Max @250 VAC,50 Hz
Hi‑pot Test	1 minute withstand (Line‑to‑Line / Line‑to‑Ground)
Insulation Resistance	≥100 MΩ @500 VDC (Input / Output to Ground)
Operating Temperature Range	‑25 °C ~ +100 °C
Insertion Loss	Measured under 50‑Ω test system, suppress common‑mode & differential‑mode noise

Applications

Medical & healthcare electronic equipment (ultra‑low leakage current preferred)
Test & measurement instruments, laboratory analytical devices
Industrial automation controllers and industrial control equipment
Telecommunication and IT hardware
High‑end precision consumer electronics
Other electronic devices requiring EMC improvement and power‑line noise suppression

Product Documentation

Support and Services

Product Overview: High-performance single-phase EMI filter, compliant with international standards
Technical Support: Refer to the datasheet and installation manual for full specs, wiring diagrams, and safety guidelines
Installation: Must be performed by qualified personnel; ensure proper grounding and secure connections per applicable electrical codes
Maintenance: Regular inspection recommended to maintain filter efficiency and extend product lifespan
Troubleshooting: Verify wiring, check for physical damage, and confirm operating conditions meet specifications
Custom Solutions: Tailored EMI filter options available, including product testing and certification support

Frequently Asked Questions

What is your MOQ for VIP4-series power filters?

For standard off-the-shelf VIP4 series models, low MOQ is acceptable. Stock items support small-batch trial orders; for bulk mass production orders, MOQ will be based on production arrangement. Contact our sales team for detailed MOQ information.

Can I get samples of VIP4-series filters for my internal EMC performance pre-test?

Yes, sample service is available. Standard VIP4 models can be supplied as samples for your lab EMC validation and performance verification. Sample freight will be borne by the buyer.

What are the rated voltage, rated current and operating frequency for VIP4-series power filters?

VIP4 series single-phase filters are rated at 115/250VAC, operating frequency 50/60Hz. Different part numbers support different rated current from 1A-10A (for example VIP4-2B-10 is 10A model). Please refer to the product approval sheet for exact parameter of each model.

Can you provide insertion-loss curves including common-mode and differential-mode performance for VIP4-series filters?

Yes. Insertion-loss data under 50Ω standard test system is included in each model's approval sheet. We can provide test curves for common-mode and differential-mode noise attenuation for your circuit simulation and EMC evaluation.

What is the hip-pot (high-potential) test standard for VIP4-series power filters?

Every finished VIP4 filter undergoes hip-pot withstand voltage test for 1 minute as per specification, together with insulation resistance test (≥100MΩ @500VDC input/output to ground). Full test specification is shown on the approval sheet.

If my product fails during EMC testing after using VIP4 filters, can you provide technical support?

Yes, our in-house EMC engineering team can offer technical support. Please share your test report, application condition and circuit information, we will analyze and give suggestions for improvement or model adjustment.
