V18033H EMI Suppression Ferrite Core 6080024125 High Freq Noise Filter for Consumer Electronics PCBA Power Cables RoHS REACH

Brand Name:	Weiaipu
Model Number:	V18033H
MOQ:	15000PCS
Price:	0.03USD
Packaging Details:	Carton
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ROHS REACH

Product Name:

Ni‑Zn Ferrite Core V18033H

Manufacturer:

Shenzhen VIIP Electronics Co.,Ltd.

Type:

Toroidal / H‑Type EMI Ferrite Core

Function:

MI / EMC Noise Suppression，High‑frequency Noise Attenuation

Material Grade:

VN02 Nickel‑Zinc Ferrite

Compliance:

RoHS, REACH

Highlight:

EMI suppression ferrite core for PCBA

High frequency noise filter for power cables

RoHS compliant ferrite core for consumer electronics

Product Description

V18033H EMI Suppression Ferrite Core 6080024125 High Freq Noise Filter for Consumer Electronics PCBA Power Cables RoHS REACH

Product Overview

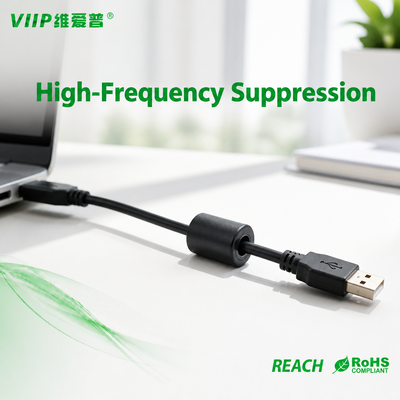

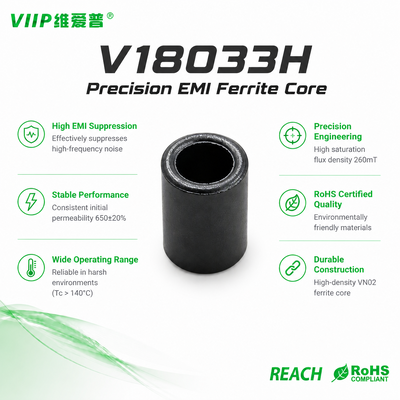

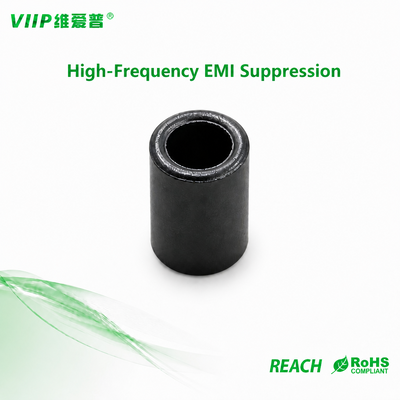

The V18033H is a toroidal gap-free Ni-Zn ferrite EMI suppression core manufactured by Shenzhen VIIP Electronics Co., Ltd, dedicated to EMC high-frequency noise suppression. This high-performance magnetic component effectively attenuates high-frequency electromagnetic interference inside electronic circuits and wiring harnesses, fully complying with RoHS & REACH environmental requirements.

Impedance performance is validated by production sample test data, covering noise-attenuation frequency range from 1 MHz to 500 MHz. Its closed toroidal magnetic-path structure delivers stable broadband EMI filtering performance for cable harness and PCBA-level EMC optimization. Full-set test records and impedance-frequency curve are documented in the official Rev.4.0 approval sheet (Doc No.6080024125) for engineering reference.

Key Features

Wide test bandwidth covering 1 MHz to 500 MHz for comprehensive impedance characterization
Compliant with RoHS and REACH standards, fit for global export electronic projects
Strict visual appearance criteria to ensure reliable mechanical strength during assembly
Perfect for circuit EMC debugging together with EMI filter solutions

Electrical Characteristics

Item	Specification
Test instrument	E4991A + 16194A
Test frequency range	1 MHz ~ 500 MHz
Test winding fixture	Ø0.50.5TS100L(mm)
Min. Impedance @25 MHz	≥20 Ω
Min. Impedance @100 MHz	≥50 Ω

Impedance-vs-frequency test curve is attached in the official approval sheet for reference.

Material & Physical Properties

Parameter	Value

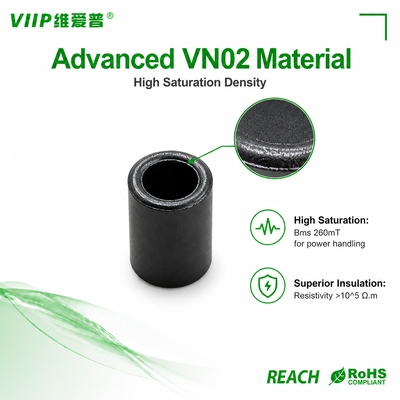

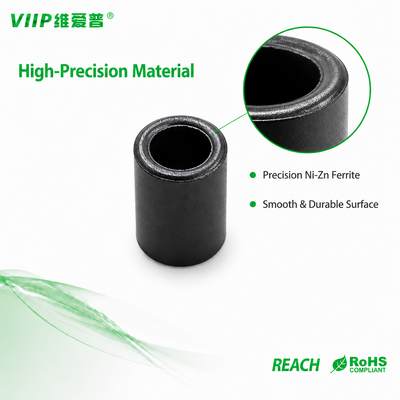

Material Grade	VN02 Ni-Zn Ferrite
Initial permeability μi	650 (±20%)
Relative Loss Factor tanδ/μi	20*10⁻⁶ @0.1 MHz
Saturation magnetic flux density Bs	260 mT @1600 A/m
Remanence Br	150 mT
Coercivity Hc	35 A/m
Curie temperature Tc	>140 °C
Resistivity	>10 Ω*m
Density	4.9 g/cm³
Dimension A	6.0±0.2 mm
Dimension B	10.0±0.3 mm
Dimension C	4.0±0.2 mm

Applications

Industrial field-bus signal cable EMI suppression
Building smart & fire alarm device noise filtering
Robot internal wiring & micro-actuator anti-interference
Data acquisition & RS485 communication harness EMC optimization
Low-energy storage auxiliary power noise attenuation
Lab test & measurement equipment cable noise suppression

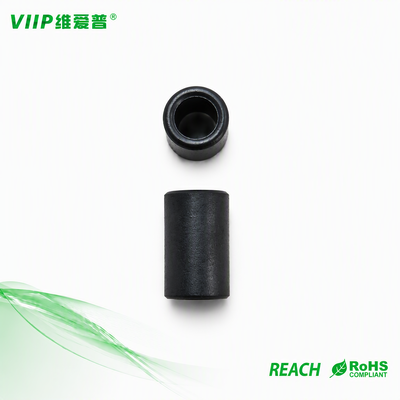

Product Images

Frequently Asked Questions

Can I get free samples for H-series ferrite cores?

Yes, we can provide free H-series ferrite core samples for your performance testing and product evaluation.

What is your regular order requirement for ferrite cores?

Normally mass orders need to comply with our minimum package quantity requirement.

Does the free-sample policy allow small-quantity orders below MOQ for regular purchases?

Free samples are only intended for performance verification. While your first trial order can be negotiated, formal repeat orders must follow our minimum package quantity rule.

What certificates do H-series ferrite cores have?

Our H-series ferrite cores meet RoHS and REACH regulatory requirements.

What is the typical production lead-time for mass-production ferrite core orders?

Typical production lead-time ranges from 2 to 5 weeks, subject to order volume and stock status. Exact lead-time will be confirmed prior to your formal order placement.

Can you customize impedance, physical dimensions or material for H-type ferrite cores?

Customization service is available based on your detailed technical specifications. A dedicated MOQ will apply for all customized ferrite core projects.

Could you provide EMC technical support when I apply your ferrite cores in my projects?

Sure. Our in-house engineering team provides basic EMC technical consultation to assist you with noise-suppression design and circuit debugging work.

What applications are H-series ferrite cores suitable for?

H-series Ni-Zn ferrite cores are widely used for EMI / EMC noise suppression on PCBA traces, wiring harnesses, power cables, consumer electronics, power supplies and communication-related equipment.
