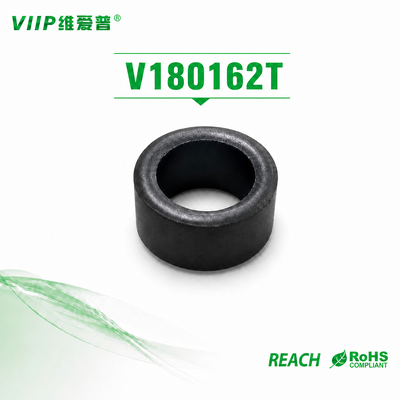

VIIP V180162T EMC Ferrite Core: 1-500MHz Tested by E4991A for Industrial and Medical Wiring Harness EMI Interference Reduction

Product Overview

V180162T Medical-Grade VIIP Ferrite Core: High Impedance EMC Magnetic Core for Medical Equipment Power Cable Anti-Interference. This EMI suppression ferrite core from Shenzhen VIIP Electronics Co., Ltd. effectively suppresses high-frequency electromagnetic interference within electronic circuits and fully complies with RoHS & REACH environmental requirements.

Impedance performance is verified with 10-piece production sample test data, targeting noise attenuation across the 1-500 MHz frequency range. Its toroidal gap-free magnetic-path design provides stable broadband noise-reduction performance for cable harness and circuit-level EMC optimization.

Key Features

Full raw-material traceability, every production lot can be tracked back to raw material batches
Finished-lot test records are archived, available for customers' internal audit and project filing
Stable batch-to-batch consistency, minimizes performance deviation among different production lots
Manufactured under precision production process, stable physical dimension tolerance for easy assembly
Fully RoHS & REACH compliant, meets EU environmental requirements for export medical and industrial equipment

Physical Dimension

Dimensional data sourced from official approval sheet sample test records (Rev.4.0). Sample measured typical values (10-sample average): A=18.98 mm, B=10.98 mm, C=12.90 mm. Full dimensional tolerance data and individual sample readings available upon request - refer to approval sheet 6080025020-V180162T Rev4.0.

Electrical Characteristics

Item	Specification
Test instrument	E4991A
Test frequency range	1 MHz ~ 500 MHz
Test winding fixture	Ø0.5×0.5TS×100L(mm)
Typical inductance L (average of 10 samples)	29.96 μH
Typical Impedance @25 KHz (average)	85.04 Ω
Typical Impedance @100 MHz (average)	18.98 Ω

Impedance-vs-frequency test curve is attached in the official approval sheet for reference.

Material Properties

Parameter	Value
Initial permeability μi	650 (±20%)
Relative Loss Factor	20*10⁻⁶ @0.1 MHz
Saturation magnetic flux density	260 mT (@1600 A/m)
Remanence Br	150 mT
Coercivity	35 A/m
Curie temperature	>105 °C
Electrical resistivity	High resistivity to minimize eddy-current loss under high-frequency working conditions

Appearance Criteria

Multi-grade breakage-limit standard: Defect area and maximum allowable defect quantity are defined according to core outer dimension for mass-production quality control. All samples passed visual inspection (Y/N = Y for all tested samples) per the approval sheet report.

Applications

EMI noise suppression for printing & packaging industrial equipment, injection-molding machine control cabinets and factory automation signal cables
Anti-interference treatment for water-quality monitoring analyzers, environmental detection sensors and outdoor meteorological station electronic assemblies
High-frequency noise filtering for banking self-service terminals, payment kiosks and financial peripheral device wiring
Conducted interference reduction for elevator main control boards, lift safety sensing units and elevator car internal cable assemblies
EMC optimization for petroleum industry field acquisition instruments, oil-well monitoring modules and field-deployed industrial communication hardware
