VIIP V180162T Anti-Interference Ferrite Core: RoHS REACH Certified, Batch Traceable, Supports EMC Docs for Power Harness

Brand Name:	Weiaipu
Model Number:	V180162T
MOQ:	1728PCS
Price:	USD0.07
Packaging Details:	Carton
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ROHS REACH

Model:

V180162T

Product Type:

Ferrite Core (EMI / EMC Noise Suppression)

Compliance:

RoHS, REACH

Highlight:

EMI Ferrite Core with RoHS certification

Anti-Interference Ferrite Core for power harness

Batch Traceable Ferrite Core EMC compliant

Product Description

VIIP V180162T Anti-Interference Ferrite Core

Medical-grade ferrite core with EMC noise damping magnetic core for hospital device power cable anti-interference. RoHS REACH certified, batch traceable, supports EMC documentation for power harness applications.

Product Overview

The V180162T is an EMI suppression ferrite core manufactured by Shenzhen VIIP Electronics Co., Ltd, dedicated for EMC noise suppression. This component effectively suppresses high-frequency electromagnetic interference within electronic circuits and fully complies with RoHS & REACH environmental requirements.

Impedance performance is verified with 10-piece production sample test data, targeting noise attenuation across the 1-500 MHz frequency range. Its toroidal gap-free magnetic-path design provides stable broadband noise-reduction performance for cable harness and circuit-level EMC optimization.

Key Features

Perfect match for medical equipment power harness, such as monitors, ventilators, diagnostic instruments
Widely applicable for industrial automation equipment, switching power supplies and control system wiring
Sample support for customer performance testing and prototype evaluation
OEM & ODM acceptable, customized service for special dimension or application demands
Manufactured by Shenzhen VIIP Electronics, professional EMC component supplier with rich export experience

Physical Dimension

Dimensional data is sourced from the official approval sheet sample test records (Rev.4.0). Sample measured typical values (10-sample average): A=18.98 mm, B=10.98 mm, C=12.90 mm. Full dimensional tolerance data and individual sample readings are available upon request, refer to approval sheet 6080025020-V180162T Rev4.0.

Electrical Characteristics

Item	Specification
Test instrument	E4991A
Test frequency range	1 MHz ~ 500 MHz
Test winding fixture	Ø0.50.5TS100L(mm)
Typical inductance L (average of 10 samples)	29.96 μH
Typical Impedance @25 KHz (average)	85.04 Ω
Typical Impedance @100 MHz (average)	18.98 Ω

Impedance-vs-frequency test curve is attached in the official approval sheet for reference.

Material Properties

Parameter	Value
Initial permeability μi	650 (±20%)
Relative Loss Factor	20*10⁻⁶ @0.1 MHz
Saturation magnetic flux density	260 mT (@1600 A/m)
Remanence Br	150 mT
Coercivity	35 A/m
Electrical resistivity	High resistivity to minimize eddy-current loss under high-frequency working conditions

Applications

EMI noise mitigation for photovoltaic inverters, energy-storage systems and off-grid power supply units
High-frequency noise suppression for data-center servers, network switches and communication base-station signal cables
EMI filtering for consumer fast-charge adapters, smart home appliances and multimedia peripheral cabling
Noise attenuation for LED intelligent driving power supplies, lighting control modules and smart lighting harnesses
Conducted interference suppression for on-board infotainment systems, automotive ADAS sensing and vehicle wiring assemblies
EMC compliance optimization for security monitoring equipment, access-control terminals and IoT wireless sensor hardware

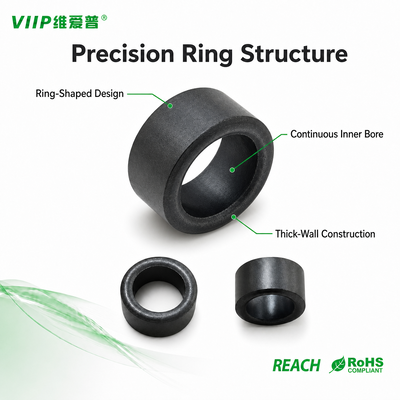

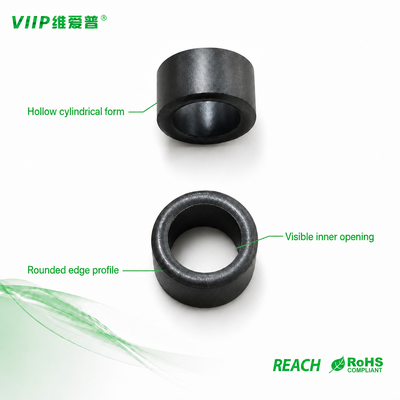

Product Images

Frequently Asked Questions

Can I get free samples for ferrite cores?

Yes, we can provide free ferrite core samples for your performance testing and evaluation.

What is your regular order requirement for ferrite cores?

Normally orders shall follow our minimum package quantity.

Does the free-sample policy mean I can place small-quantity orders below MOQ for all orders?

Free samples are for performance verification only. Except for your first trial order, formal repeat orders need to follow our minimum package quantity requirement.

What certificates do your ferrite cores have? Can you provide approval sheets and test reports?

Our ferrite cores comply with RoHS and REACH standards. We are able to supply PDF approval sheets together with batch test reports for your project certification review.

What is the typical production lead-time for ferrite core mass orders?

Production lead-time is typically 2-5 weeks, depending on order quantity and stock availability. The exact lead-time will be confirmed before you place the formal order.

Can you customize impedance, dimension or material for ferrite cores?

Custom service is available according to your technical specifications. A specific MOQ will be applied for customized ferrite core projects.

Can you offer EMC technical support when I use your ferrite cores in my projects?

Yes. Our engineering team can offer basic EMC technical consultation to support your noise-suppression design and debugging.
