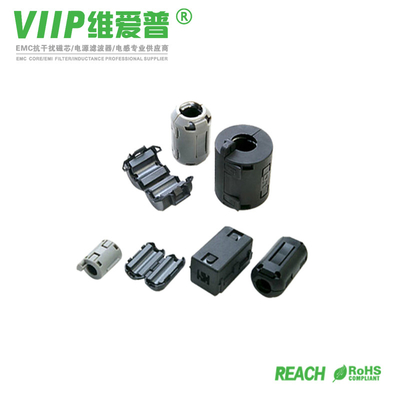

VIIP 7mm Cable EMI Suppressor Using Cylindrical Ferrite Ring Core Clip On Type

VIIP 7mm Cable EMI Suppressor Using Cylindrical Ferrite Ring Core Clip On Type
VIIP 7mm Cable EMI Suppressor Using Cylindrical Ferrite Ring Core Clip On Type
VIIP 7mm Cable EMI Suppressor Using Cylindrical Ferrite Ring Core Clip On Type VIIP 7mm Cable EMI Suppressor Using Cylindrical Ferrite Ring Core Clip On Type

Large Image :  VIIP 7mm Cable EMI Suppressor Using Cylindrical Ferrite Ring Core Clip On Type

Product Details:
Place of Origin: china
Brand Name: VIIP
Certification: Rohs Reach
Model Number: V18002S
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Delivery Time: 5-8 days
Payment Terms: T/T, Western Union
Supply Ability: 5k For one week

VIIP 7mm Cable EMI Suppressor Using Cylindrical Ferrite Ring Core Clip On Type

Description
Material: F9 Color: Black
Inner Size: 7mm Product Namee: Clip On Ferrite Core
Samples: ON STOCK Certificate: Rohs Reach
High Light:

Reach Ferrite Ring Core

,

EMI Suppressor Ferrite Ring Core

,

7mm Cable Clip On Ferrite Core

VIIP 3mm Cable EMI Suppressor Using Cylindrical Ferrite Ring Core (Clip-on Type)



Description:



RFI/EMI Noise Reduction Cable Clip:•EMI/RFI Noise Filter Clip using ferrite cores with protective plastic covers.
•Helps suppress EMI disturbances in AC power lines.



Ferrite Cores:

•Attenuate electromagnetic interference and enhance signal quality.
•Easy to fit by clipping on cables; provides improved signal clarity and accelerated data transfer.



Specifications:



Place of Origin Guangdong, China
Brand Name VIIP
Model Number

V18002

Type Soft
Composite Ferrite Magnet
Application Industrial Magnet







Specifications:

No. Specifications Fig Dimensions:mm Impedance(Ω)min
ΦA B ΦC D E 25MHz 100MHz
1 V18001A 1 13±1 11.8±1 3.5±0.8 25.2±1 2.5±1 135 260
2 V18001 1 13±1 12±1 5±0.8 25.2±1 2.5±1 90 190
3 V18002 1 16.5±1 14±1 7±0.8 30±1 2.5±1 80 195
4 V18002C 5 20.7±1 39.4±1 7.2±0.5 / / 120 220
5 V18003 1 19.5±1 18±1 9±0.8 35±1 5.5±1 100 240
6 V18004 1 23.5±1 22.2±1 13.5±0.8 36±1 10.5±1 90 190
7 V18005 2 17.5±1 19.5±1 6.5±0.8 32.5±1 / 135 330
8 V18006 2 22±1 23.5±1 10±0.8 33±1 / 90 250
9 V18007 2 29±1 30±1 13±0.8 32.2±1 / 160 280
10 V18008 3 19.5±1 23±1 8±0.8 17±1 23±1 70 140
11 V18009 3 19.5±1 23±1 8±0.8 19.5±1 26±1 80 160
12 V18010 4 15±1 14±1 7±1 18±1 22±1 45 125
13 V18011 4 19.5±1 / 9±1 32±1 36±1 105 185
14 V18011A 4 20.5±1 20.5±1 11±0.8 32±1 36±1 80 155
15 V18011B 3 28±1 31±1 11.4±0.8 17.5±1 23.5±1 75 135
16 V18012 4 30±1 / 13±0.8 34±1 39±1 125 230
17 V18013 5 16.5±1 29.5±1 5±0.8 / / 80 165
18 V18017 4 40.5±1 / 17±1 49.8±1 / 200 350
19 V18018 3 29±1 33±1 15±0.8 15.5±1 21.5±1 55 110
20 V18019 1 19.5±1 18±1 8±0.8 35±1 5.5±1 120 175
21 V18020 3 24±1 27±1 10±0.8 13.5±1 19±1 60 110
22 V18021 1 11.7±1 10.8±1 4±0.8 21.4±1 2.6±1 90 160
23 V18031 2 15±1 14±1 6±1 23±1 / 80 160
24 V18032 1 19.5±1 18.0±1 5.0±1 35±0.8 / 190 320
25 V18033 4 19.5±1 / 8±0.8 32±1 36±1 120 175





Applications:

✔7mm / 0.27in (inner diameter): suitable for 0.2 - 0.27in / 5 - 7mm cables
Application: AV cable, Coaxial Audio, Audio Power Line, IP Serial Port Camera etc.







VIIP 7mm Cable EMI Suppressor Using Cylindrical Ferrite Ring Core Clip On Type 0

VIIP 7mm Cable EMI Suppressor Using Cylindrical Ferrite Ring Core Clip On Type 1

FAQ:
Q: Do you offer customized products?
A: Yes, we can develop custom molds to suit your specific needs if you can provide us with samples, drawings or detailed specifications.Q: Are you an ISO 9001 certified manufacturer?
A: Yes, we are a professional EMI filter designer and manufacturer founded in 2008. We have been ISO 9001 certified.Q: What payment methods do you accept?
A: We accept payment via wire transfer (T/T), Western Union, PayPal, etc.

Q: What certifications do you have?
A: We hold various certifications including ISO 9001, CE, TUV, UL, ROHS, ENEC and REACH certification.
