| Brand Name: | VIIP |
| Model Number: | VIP4-1B-06 |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | 33*33*18 |
| Payment Terms: | T/T, Western Union |
| Place of Origin: China | Input Impedance: 50Ω |
| Model Number: VIP4-1B-06 | Rated current: 6A |
| Brand Name: VIIP | Rated voltage: 110V/250V |
| Type:AC EMI Filter | Insertion Loss: 30-100dB |
| Transfer Function: Low Pass | Line To Line: 1760VDC |
| Nominal Center Frequency: 150KHZ~30MHZ | Line to ground: 2000VAC |
| Port: SHENZHEN | Certificate: ISO9001 CE ROHS cUL TUV |
| MOQ: 1PCS | Operating Frequency: 50/60HZ |
| Package Type: Surface Mount | Temperature Range: 25 / 085 / 21 |

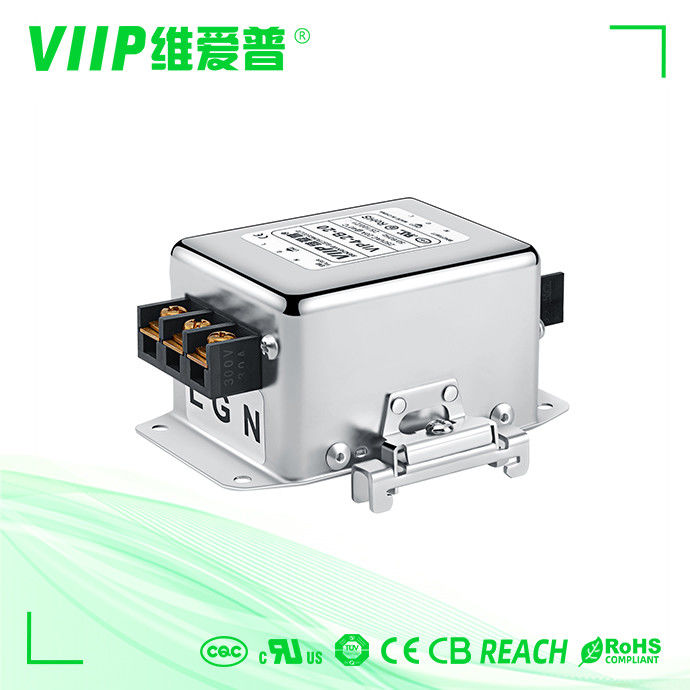

General purpose single phase AC power line filters ,easy to install ,available for small electronic equipment’s and measuring instrument
Outline Drawing and Dimensions :
Specifications:
| Part No. | Rated Current [A] | 250VAC/50Hz @ 20C Leakage Current [mA] |
Physical Dimensions | Electrical Schematics | Terminals | Weight [g] | ||
| screw | terminal block | wires | ||||||
| VIP4-1A-01 | 1A | <0.5mA | Fig 1 | Fig 1 | - - - | - - - | 0 | 65 |
| VIP4-1A-03 | 3A | <0.5mA | Fig 1 | Fig 1 | - - - | - - - | 0 | 65 |
| VIP4-1A-06 | 6A | <0.5mA | Fig 1 | Fig 1 | - - - | - - - | 0 | 65 |
| VIP4-1A-10 | 10A | <0.5mA | Fig 2 | Fig 1 | - - - | 0 | - - - | 75 |
| VIP4-1B-06 | 6A | <1.0mA | Fig 3/Fig4 | Fig 2 | M4 | 0 | - - - | 140 |
| VIP4-1B-10 | 10A | <1.0mA | Fig 3/Fig4 | Fig 2 | M4 | 0 | - - - | 170 |
| VIP4-1B-20 | 20A | <1.0mA | Fig 3/Fig4 | Fig 2 | M4 | 0 | - - - | 170 |
| VIP4-1B-30 | 30A | <1.0mA | Fig 5 | Fig 2 | M6 | - - - | - - - | 320 |
| VIP4-1B-50 | 50A | <2.0mA | Fig 5 | Fig 2 | M6 | - - - | - - - | 600 |
| VIP4-1B-100 | 100A | <2.0mA | Fig 5 | Fig 2 | M8 | - - - | - - - | 1380 |
| VIP4-1B-150 | 150A | <2.0mA | Fig 5 | Fig 2 | M10 | - - - | - - - | 1900 |
| VIP4-1B-200 | 200A | <2.0mA | Fig 5 | Fig 2 | M10 | - - - | - - - | 1900 |
Electrical schematic:
Mechanical Dimension(Unit: mm)
Applications:
White household
Smart home
Smart terminal
Power supply
Power & energy
Electrical & electronic equipment
Consumer goods
medical device
datacome equipment
FAQ:
Q1:How about the certificates?
A:ISO 9001, TUV, UL, CE, CQC, CB, ENEC, ROHS, REACH etc.
Q2: Are you a factory?
A: Yes, we have been a professional manufacturer of EMI&EMC FILTER and ferrite core since 2009.
Q3: How long is the delivery time?
A: We ensure the fast delivery. Generally, it will take 2-5 days for small order or the stock goods; 10 to 15 days for mass production after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Please contact us for details.
Q4: How about the payment terms?
A: We usually require T/T in advance. we also accept other payment methods.
Q5: Do you offer customized product ?
A: Yes, we can develop a new mold as your requirement if you can provide us with the samples or drawings and specifications.
Q6: How about the samples?
A: Free samples. You need to pay for freight cost. Please contact us for details.
We Can Provide EMC technical rectification and always can custom product as your requirement to pass the EMC test. Let's talk in details.
|
|
