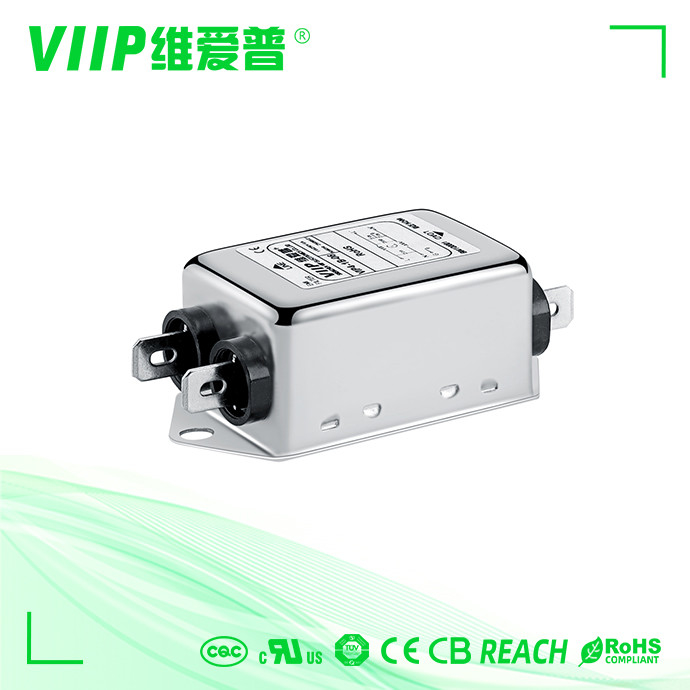

CE ROHS EMI Filter 6A For Test And Measurement Equipment 110VAC 250VAC

CE ROHS EMI Filter 6A For Test And Measurement Equipment 110VAC 250VAC
CE ROHS EMI Filter 6A For Test And Measurement Equipment 110VAC 250VAC
CE ROHS EMI Filter 6A For Test And Measurement Equipment 110VAC 250VAC CE ROHS EMI Filter 6A For Test And Measurement Equipment 110VAC 250VAC

Large Image :  CE ROHS EMI Filter 6A For Test And Measurement Equipment 110VAC 250VAC

Product Details:
Place of Origin: China
Brand Name: VIIP
Model Number: VIP4-1B-03(10331)
Payment & Shipping Terms:
Minimum Order Quantity: 100 PCS
Price: Negotiable
Packaging Details: 33*33*18
Payment Terms: T/T, Western Union
Supply Ability: 2000 pcs within 10-15 days

CE ROHS EMI Filter 6A For Test And Measurement Equipment 110VAC 250VAC

Description
Certification: CE ROHS,CE CQC,ISO & TUV Type: EMI FILTER
Rated Current: 3A Rated Voltage: 110/250VAC
MOQ: 1 PCS Housing: Metal
High Light:

CE EMI Filter 6A

,

Metal Housing EMI Filter 6A

,

110VAC Single Phase EMI Filter

CE ROHS EMI Filter 3A For Test and measurement equipment 110VAC 250VAC

Quick Detail:

Place of Origin China
Input Impedance 50Ω
Brand Name VIIP
Insertion loss 30-100dB
Line to line 1760VDC
Nominal Center Frequency:  150KHZ~30MHZ
Port SHENZHEN
MOQ 1PCS
leading time  samples are available



General purpose single phase AC power line filters ,easy to install ,available for small electronic equipment’s and measuring instrument







Tabulates for single phase emi filter VIP4-1B-03(10331) :



Part No. Rated Current [A] 250VAC/50Hz @ 20C
Leakage Current [mA]
Physical Dimensions Electrical Schematics Terminals Weight [g]
screw terminal block wires
VIP4-1A-01 1A <0.5mA Fig 1 Fig 1 - - - - - - 0 65
VIP4-1A-03 3A <0.5mA Fig 1 Fig 1 - - - - - - 0 65
VIP4-1A-06 6A <0.5mA Fig 1 Fig 1 - - - - - - 0 65
VIP4-1A-10 10A <0.5mA Fig 2 Fig 1 - - - 0 - - - 75
VIP4-1B-06 6A <1.0mA Fig 3/Fig4 Fig 2 M4 0 - - - 140
VIP4-1B-10 10A <1.0mA Fig 3/Fig4 Fig 2 M4 0 - - - 170
VIP4-1B-20 20A <1.0mA Fig 3/Fig4 Fig 2 M4 0 - - - 170
VIP4-1B-30 30A <1.0mA Fig 5 Fig 2 M6 - - - - - - 320
VIP4-1B-50 50A <2.0mA Fig 5 Fig 2 M6 - - - - - - 600
VIP4-1B-100 100A <2.0mA Fig 5 Fig 2 M8 - - - - - - 1380
VIP4-1B-150 150A <2.0mA Fig 5 Fig 2 M10 - - - - - - 1900
VIP4-1B-200 200A <2.0mA Fig 5 Fig 2 M10 - - - - - - 1900



Electrical schematic:

CE ROHS EMI Filter 6A For Test And Measurement Equipment 110VAC 250VAC 0



Mechanical Dimension(Unit: mm)





Applications:

White household

Smart home

Smart terminal

Power supply

Power & energy

Electrical & electronic equipment

Consumer goods

medical device

datacome equipment





CE ROHS EMI Filter 6A For Test And Measurement Equipment 110VAC 250VAC 1CE ROHS EMI Filter 6A For Test And Measurement Equipment 110VAC 250VAC 2
