Product Details:
|
| Transfer Function: | Iec Socket Power Filter | Rated Current: | 1-10A |
|---|---|---|---|
| Function: | With Fuse | Input Impedance: | 50Ω |
| Rated Voltage: | 110/250VAC | Case: | Metal |
| High Light: | 6A 250V EMI Noise Filter,EMI Noise Filter 1500VDC,1500VDC Low Pass EMI Filter |
||

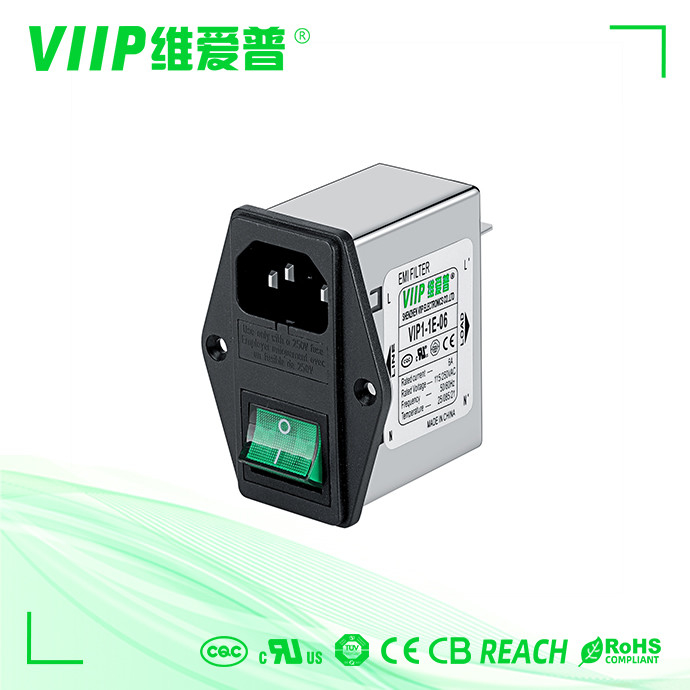

6A 250V EMI Noise IEC EMI Low Pass Filter Iec Filter Fuse Iec
Quick Detail:
| Item | IEC Filter |
| Model | IEC Filter VIP1 |
| Transfer Function | Low Pass |
| Package Type | Surface Mount |
| Nominal Center Frequency | 150K-30MHZ |
| Insertion Loss | 60~90dB |
| Input Impedance | 50Ω |
| Rated Voltage | 110V/250V |
| Rated Current | 1~10A |
| Environmental Temperature | 40°C |
| Temperature Range | 25 / 085 / 21 |
| Operating Frequency | 50/60HZ |
| Line to Line | 1500VDC |
| Line to Ground | 1500VDC |
| Maximum Leakage Current | 250VAC/60HZ 0.8mA Max |
| MOQ | 100pcs |
| Flammability | UL 94V-0 |
| Lead Time | 5~15 weekday |
Description:
specially designed for standard IEC connector ,fast and simple installation,highly cost effective
Specifications:
| Part No. | Rated Current [A] | 250VAC/50Hz @ 20C Leakage Current [mA] |
Physical Dimensions | Electrical Schematics | Terminals | Weight [g] |
| VIP1-1B-01 | 1A | <0.5mA | Fig 1 | Fig 1 | 0 | 50 |
| VIP1-1B-03 | 3A | <0.5mA | Fig 1 | Fig 1 | 0 | 50 |
| VIP1-1B-06 | 6A | <0.5mA | Fig 1 | Fig 1 | 0 | 52 |
| VIP1-1B-10 | 10A | <0.5mA | Fig 1 | Fig 1 | 0 | 53 |
| VIP1-1C-01 | 1A | <0.5mA | Fig 2 | Fig 2 | 0 | 50 |
| VIP1-1C-03 | 3A | <0.5mA | Fig 2 | Fig 2 | 0 | 50 |
| VIP1-1C-06 | 6A | <0.5mA | Fig 2 | Fig 2 | 0 | 53 |
| VIP1-1C-10 | 10A | <0.5mA | Fig 2 | Fig 2 | 0 | 56 |
Electrical schematic:
Mechanical Dimension(Unit: mm)
Applications:
Widely used for telecommunication equipment ,medical equipment ,instruments and meters ,household small tools ,test and measurement equipment ,electronic equipment requiring connection of standard plug
