IEC EMI Filter

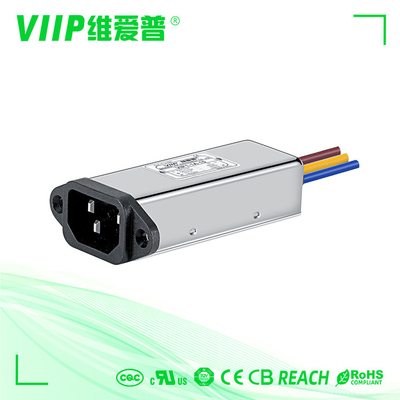

3A 60Hz Ac Power Line IEC EMI Filter Male Socket With Wires 1500VDC

All Category

Flat Ferrite Core

Miss. Vicky Lee

vip6@szviip.com

19925448748

Contact Now

3A 60Hz Ac Power Line IEC EMI Filter Male Socket With Wires 1500VDC

Brand Name:	VIIP
Model Number:	VIP1-1A
MOQ:	Negotiable
Price:	Negotiable
Packaging Details:	333318
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE TUV UL ROHS REACH

Transfer Function:

Iec Socket Power Filter

Rated Current:

Function:

With Wires

Insertion Loss:

60dB-90dB

Application:

Electronic Equipments

Case:

Metal

Supply Ability:

2000 pcs within 10-15 days

Highlight:

3A IEC EMI Filter Male Socket

3A 60Hz Ac Power Line Filter

1500VDC Ac Power Line Filter

Product Description

3A 60Hz IEC EMI Filter For Small Medium Machines Male Socket With Wires

Quick Detail:

Item	IEC Filter
Model	IEC Filter VIP-1A
Transfer Function	Low Pass
Package Type	Surface Mount
Nominal Center Frequency	150K-30MHZ
Insertion Loss	60~90dB
Input Impedance	50Ω
Rated Voltage	110V/250V
Rated Current	1~10A
Environmental Temperature	40°C
Temperature Range	25 / 085 / 21
Operating Frequency	50/60HZ
Line to Line	1500VDC
Line to Ground	1500VDC
Maximum Leakage Current	250VAC/60HZ 0.8mA Max
MOQ	5pcs
Port	Shenzhen
Leading Time	5~15 days

Description:

specially designed for standard IEC connector ,fast and simple installation,highly cost effective

Specifications:

Part No.	Rated Current [A]	250VAC/50Hz @ 20C Leakage Current [mA]	Physical Dimensions	Electrical Schematics	Terminals			Weight [g]
Part No.	Rated Current [A]	250VAC/50Hz @ 20C Leakage Current [mA]	Physical Dimensions	Electrical Schematics	screw	terminal block	wires	Weight [g]
VIP1-1A-01	1A	<0.5mA	Fig 1	Fig 1	0	- - -	- - -	45
VIP1-1A-03	3A	<0.5mA	Fig 1	Fig 1	0	- - -	- - -	45
VIP1-1A-06	6A	<0.5mA	Fig 1	Fig 1	0	- - -	- - -	46
VIP1-1A-10	10A	<0.5mA	Fig 1	Fig 1	0	- - -	- - -	47
VIP1-1A-15	15A	<3.0mA	Fig.2	Fig 1	- - -	0	- - -	355
VIP1-1A-16	16A	<3.5mA	Fig.3	Fig 1	- - -	- - -	0	355

Electrical schematic:

3A 60Hz Ac Power Line IEC EMI Filter Male Socket With Wires 1500VDC 0

Mechanical Dimension(Unit: mm)

3A 60Hz Ac Power Line IEC EMI Filter Male Socket With Wires 1500VDC 1

Applications for emi emc filter:

Widely used for telecommunication equipment ,medical equipment ,instruments and meters ,household small tools ,test and measurement equipment ,electronic equipment requiring connection of standard plug

Our Company

1.Customized:We have a professional R&D team; our aims is we won't let customers

spend any extra money.

2.Listed company:National high-tech enterprises, brand assurance, reliable quality, and we have the relevant product certifications.

3.Rectification test: We cooperate with top scientific research laboratories to provide free

EMC rectification technical support, samples; and free conduction test.

4.Scale production:Automation technology, scale production, great price,excellent, service,
