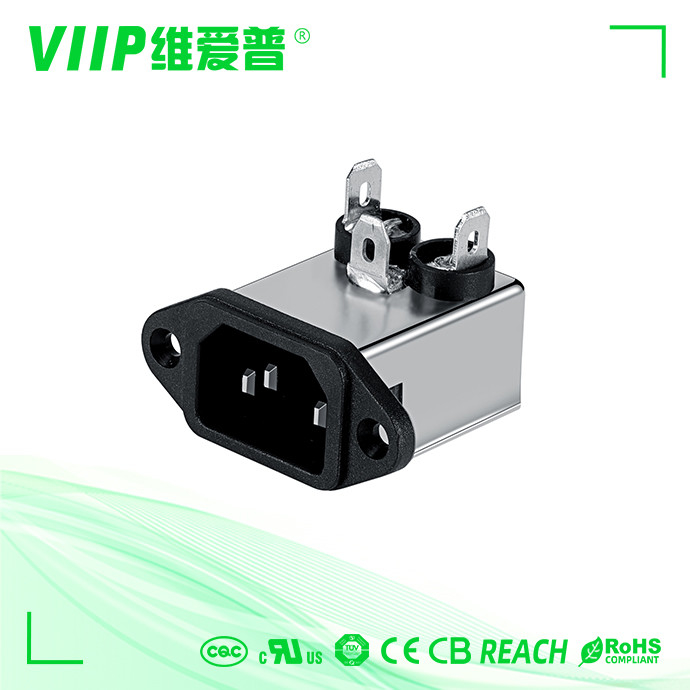

Name: General Inline AC IEC EMI Filter IEC320 Socket Electrical Outlet
Brand: Shenzhen VIIP Electronics Co., Ltd.
SKU: VIP1-1A-06
Price: 14.05 USD
Availability: InStock

Brand Name:	VIIP
Model Number:	VIP1-1A-06
MOQ:	Negotiable
Price:	Negotiable
Packaging Details:	333318
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE TUV UL ROHS REACH

Rated Current:

Rated Voltage:

110/250VAC

Line To Line:

1500VDC

Case:

Metal

Type:

EMC Filter

Application:

Electronic Equipments

Supply Ability:

2000 pcs within 10-15 days

Highlight:

IEC EMI Filter IEC320 Socket

General Inline AC EMI Filter

AC EMI Filter IEC320 Socket

Product Description

General Inline IEC EMI Filter With IEC320 Socket Electrical Outlet

Quick Detail:

Place of Origin	China
Rated current	3A
Rated voltage	110V/250V
Type	AC EMI Filter
Transfer Function	Low Pass
Line to ground	1500VAC
Port	SHENZHEN
Certificate:	ISO9001 CE ROHS cUL TUV
Temperature Range	25 / 085 / 21

Specially designed for standard IEC connector,fast and simple installation ,highly cost effective

Specifications:

Part No.	Rated Current [A]	250VAC/50Hz @ 20C Leakage Current [mA]	Physical Dimensions	Electrical Schematics	Terminals			Weight [g]
Part No.	Rated Current [A]	250VAC/50Hz @ 20C Leakage Current [mA]	Physical Dimensions	Electrical Schematics	screw	terminal block	wires	Weight [g]
VIP1-1A-01	1A	<0.5mA	Fig 1	Fig 1	0	- - -	- - -	45
VIP1-1A-03	3A	<0.5mA	Fig 1	Fig 1	0	- - -	- - -	45
VIP1-1A-06	6A	<0.5mA	Fig 1	Fig 1	0	- - -	- - -	46
VIP1-1A-10	10A	<0.5mA	Fig 1	Fig 1	0	- - -	- - -	47
VIP1-1A-15	15A	<3.0mA	Fig.2	Fig 1	- - -	0	- - -	355
VIP1-1A-16	16A	<3.5mA	Fig.3	Fig 1	- - -	- - -	0	355

Electrical schematic:
General Inline AC IEC EMI Filter IEC320 Socket Electrical Outlet 0
Mechanical Dimension(Unit: mm)

Applications:

Portable electrical and electronic equipment

Medical equipment

Test and measurement equipment

Small and medium-sized machines and household equipment

Single-phase power supply,switch-mode power supply

Product Picture

Our service
Sample
Sample Fee: Negotiate
Sample Time: 3~5 days

Payment
---Payment terms: Western Union, T/T

---Please remember to leave the correct contact information for delivery
