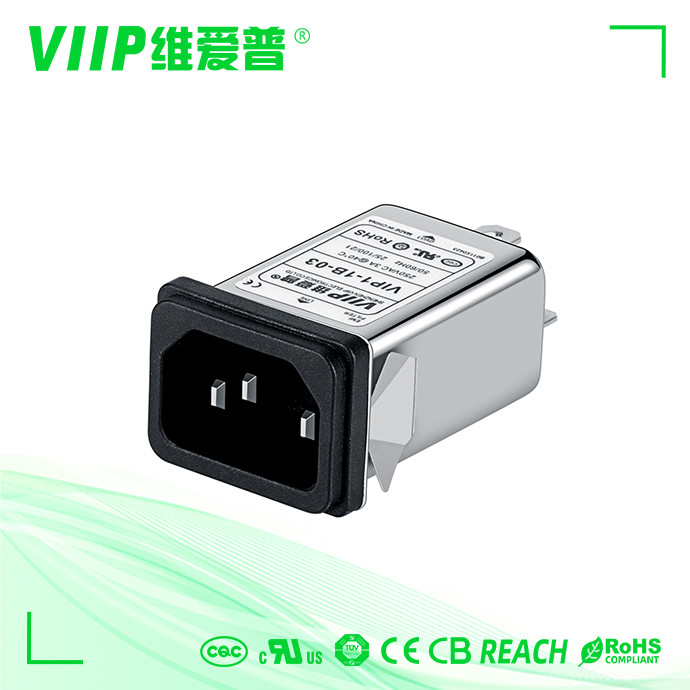

94v-0 Single Fuse IEC EMI Filter 60-90dB For Test Equipment

Brand Name: VIIP
Model Number: VIP1-1B
MOQ: Negotiable
Price: Negotiable
Packaging Details: 33*33*18
Payment Terms: T/T, Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE TUV UL ROHS REACH
Transfer Function:
Iec Socket Power Filter
Rated Current:
3A
Rated Voltage:
110/250VAC
Function:
With Single Fuse
Case:
Metal
Application:
Electronic Equipments
Supply Ability:
2000 pcs within 10-15 days
Highlight:

94v-0 Single Fuse IEC EMI Filter

,

Single Fuse IEC EMI Filter 60dB

,

iec inlet filter 90dB For Test Equipment

Product Description

94v-0 IEC EMI Low Pass Filter For Test Equipment Single Fuse


Quick Detail:


Item IEC Filter
Model IEC Filter VIP1
Transfer Function Low Pass
Package Type Surface Mount
Nominal Center Frequency 150K-30MHZ
Insertion Loss 60~90dB
Input Impedance 50Ω
Rated Voltage 110V/250V
Rated Current 1~10A
Environmental Temperature 40°C
Temperature Range 25 / 085 / 21
Operating Frequency 50/60HZ
Line to Line 1500VDC
Line to Ground 1500VDC
Maximum Leakage Current 250VAC/60HZ 0.8mA Max
MOQ 100pcs
Flammability UL 94V-0
Lead Time 5~15 weekday




Features:



1. High performance and high attenuation power filters with IEC 320 socket



2. This  types comply with the requirements of IEC/EN60601-1 for safety clearance, leakage current and hipot testing



3. There are a variety of parts and combinations to meet different customer's EMC tests



Specifications:
94v-0 Single Fuse IEC EMI Filter 60-90dB For Test Equipment 0

94v-0 Single Fuse IEC EMI Filter 60-90dB For Test Equipment 1







Applications:

  Widely used for telecommunication equipment ,medical equipment ,instruments and meters ,household small tools ,test and measurement equipment ,electronic equipment requiring connection of standard plug


94v-0 Single Fuse IEC EMI Filter 60-90dB For Test Equipment 294v-0 Single Fuse IEC EMI Filter 60-90dB For Test Equipment 3


FAQ

About VIIP
Q:Are you manafacturer or trading company?
Shenzhen VIIP is a manafacturer forEMI/EMC Products located in Shenzhen Guangdong China.
About Products
Q:What certification do you have for your products?
We have got CE ROHS FCC and so on.
Q:What is your MOQ?
It depends on different items,we have low MOQ request ,because we have a big warehouse for stock orders.
Q:What shipping ways do you support for delivery?
We support air, sea and railway shipment.
About Sample Order
Q: Can I have a sample order for your products?
A: Yes, we offer product samples, including mixed samples.

About Service

Q: Which payments are acceptable?
A:We accept T/T, Paypal, Western Union ect.
Q: Can I visit your company and factory in China?
A: Sure. We are happy to receive you in Shenzhen, China and show you around our workplaces.
