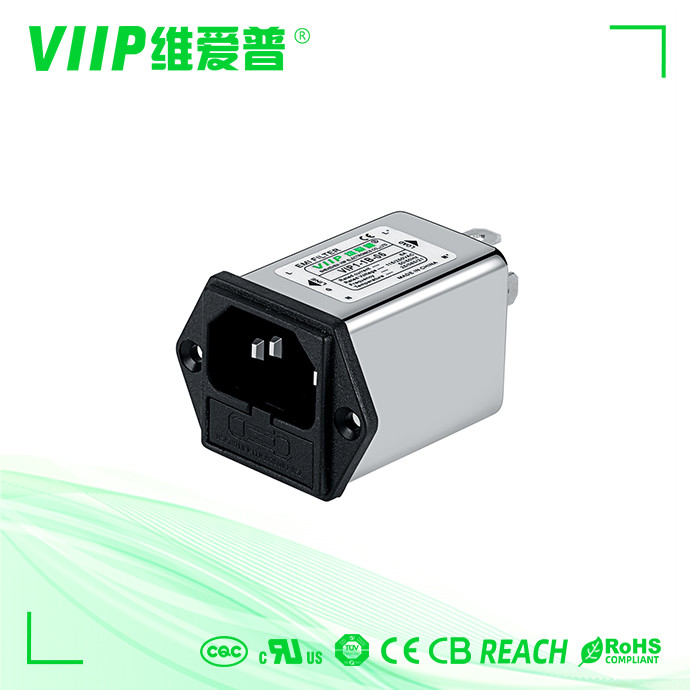

CE ROHS IEC 30mhz Low Pass Filter With Double Fuse C14 Male

Brand Name: VIIP
Model Number: VIP1-1B-06
MOQ: Negotiable
Price: Negotiable
Packaging Details: 33*33*18
Payment Terms: T/T, Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE TUV UL ROHS REACH
Transfer Function:
Iec Socket Power Filter
Rated Current:
6A
Rated Voltage:
110/250VAC
Certification:
CE ROHS
Case:
Metal
Temperature Range:
25 / 085 / 21
Supply Ability:
2000 pcs within 10-15 days
Highlight:

IEC 30mhz Low Pass Filter

,

CE ROHS Low Pass EMI Filter

,

C14 Male Low Pass EMI Filter

Product Description

IEC EMI Filter With Double Fuse C14 Male Test And Measurement Equipment


Quick Detail:

  • Item IEC Filter
    Model IEC Filter VIP1
    Transfer Function Low Pass
    Package Type Surface Mount
    Nominal Center Frequency 150K-30MHZ
    Insertion Loss 60~90dB
    Input Impedance 50Ω
    Rated Voltage 110V/250V
    Rated Current 6A
    Environmental Temperature 40°C
    Temperature Range 25 / 085 / 21
    Operating Frequency 50/60HZ
    Line to Line 1500VDC
    Line to Ground 1500VDC
    Maximum Leakage Current 250VAC/60HZ 0.8mA Max
    MOQ 5pcs
    Port Shenzhen
    Lead Time 5~15 days


Description:
specially designed for standard IEC connector ,fast and simple installation,highly cost effective

Specifications:
CE ROHS IEC 30mhz Low Pass Filter With Double Fuse C14 Male 0

CE ROHS IEC 30mhz Low Pass Filter With Double Fuse C14 Male 1


Applications:

  Widely used for telecommunication equipment ,medical equipment ,instruments and meters ,household small tools ,test and measurement equipment ,electronic equipment requiring connection of standard plug


CE ROHS IEC 30mhz Low Pass Filter With Double Fuse C14 Male 2CE ROHS IEC 30mhz Low Pass Filter With Double Fuse C14 Male 3

Our service

Sample

Sample Fee: Negotiate

Sample Time: 3~5 days



Payment

---Payment terms: Western Union, T/T

---Please remember to leave the correct contact information for delivery

Tags:
