120V Ac Power Line Inline EMI Filter With Fuse C14 Male Socket

120V Ac Power Line Inline EMI Filter With Fuse C14 Male Socket
120V Ac Power Line Inline EMI Filter With Fuse C14 Male Socket
120V Ac Power Line Inline EMI Filter With Fuse C14 Male Socket 120V Ac Power Line Inline EMI Filter With Fuse C14 Male Socket

Large Image :  120V Ac Power Line Inline EMI Filter With Fuse C14 Male Socket

Product Details:
Place of Origin: China
Brand Name: VIIP
Certification: CE TUV UL ROHS REACH
Model Number: VIP1-1E-03
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 33*33*18
Payment Terms: T/T, Western Union
Supply Ability: 2000 pcs within 10-15 days

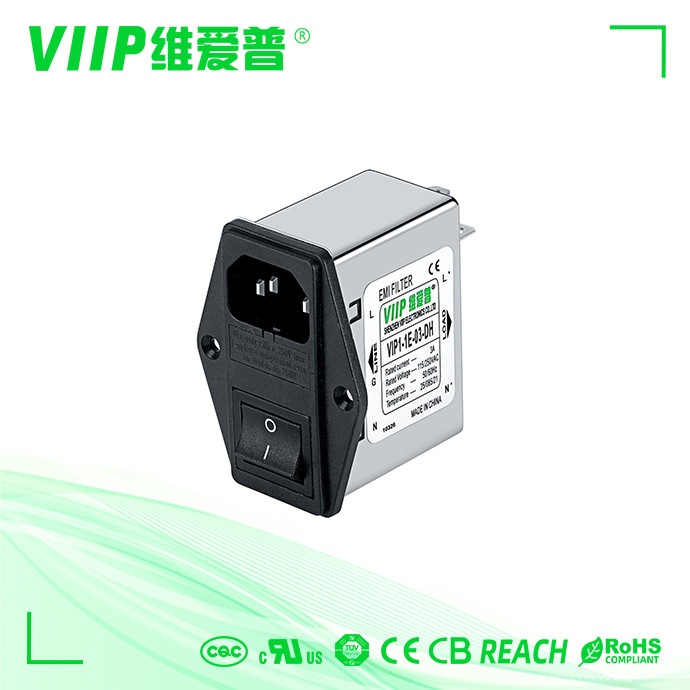

120V Ac Power Line Inline EMI Filter With Fuse C14 Male Socket

Description
Transfer Function: Iec Socket Power Filter Rated Current: 3A
Rated Voltage: 110/250VAC Function: With Fuse
Case: Metal Line To Ground: 1500VDC
High Light:

120V Inline EMI Filter With Fuse

,

C14 Male ac power line filter

,

120V EMI ac power line filter

C14 Male Socket 110V 250V Inline IEC EMI Filter Commercial Inline EMI Filter With Fuse



Quick Detail:

  • Item IEC Filter
    Model IEC Filter VIP1
    Transfer Function Low Pass
    Package Type Surface Mount
    Nominal Center Frequency 150K-30MHZ
    Insertion Loss 60~90dB
    Input Impedance 50Ω
    Rated Voltage 110V/250V
    Rated Current 6A
    Environmental Temperature 40°C
    Temperature Range 25 / 085 / 21
    Operating Frequency 50/60HZ
    Line to Line 1500VDC
    Line to Ground 1500VDC
    Maximum Leakage Current 250VAC/60HZ 0.8mA Max
    MOQ1 pcs
    Port Shenzhen
    Lead Time 5~15 weekdays


Description:

specially designed for standard IEC connector ,fast and simple installation,highly cost effective



Specifications:

120V Ac Power Line Inline EMI Filter With Fuse C14 Male Socket 0



120V Ac Power Line Inline EMI Filter With Fuse C14 Male Socket 1















Applications:



  Widely used for telecommunication equipment ,medical equipment ,instruments and meters ,household small tools ,test and measurement equipment ,electronic equipment requiring connection of standard plug





120V Ac Power Line Inline EMI Filter With Fuse C14 Male Socket 2120V Ac Power Line Inline EMI Filter With Fuse C14 Male Socket 3
