| Brand Name: | VIIP |
| Model Number: | VIP1-1A-03 |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | 33*33*18 |
| Payment Terms: | T/T, Western Union |
| Place of Origin: China | Input Impedance: 50Ω |
| Model Number: VIP1-1A-03 | Rated current: 3A |
| Brand Name: VIIP | Rated voltage: 110V/250V |
| Type:AC EMI Filter | Insertion Loss: 30-100dB |
| Transfer Function: Low Pass | Line To Line: 1500VDC |
| Leakage Current:0.4mA Max~0.8mA Max. | Line to ground: 1500VAC |
| Port: SHENZHEN | Certificate: ISO9001 CE ROHS cUL TUV |
| MOQ: 1PCS | Operating Frequency: 50/60HZ |
| Package Type:Socket | Temperature Range: 25 / 085 / 21 |
Specially designed for standard IEC connector,fast and simple installation ,highly cost effective
Tabulates for Inlet socket filter :
| Part No. | Rated Current [A] | 250VAC/50Hz @ 20C Leakage Current [mA] |
Physical Dimensions | Electrical Schematics | Terminals | Weight [g] | ||
| screw | terminal block | wires | ||||||
| VIP1-1A-01 | 1A | <0.5mA | Fig 1 | Fig 1 | 0 | - - - | - - - | 45 |
| VIP1-1A-03 | 3A | <0.5mA | Fig 1 | Fig 1 | 0 | - - - | - - - | 45 |
| VIP1-1A-06 | 6A | <0.5mA | Fig 1 | Fig 1 | 0 | - - - | - - - | 46 |
| VIP1-1A-10 | 10A | <0.5mA | Fig 1 | Fig 1 | 0 | - - - | - - - | 47 |
| VIP1-1A-15 | 15A | <3.0mA | Fig.2 | Fig 1 | - - - | 0 | - - - | 355 |
| VIP1-1A-16 | 16A | <3.5mA | Fig.3 | Fig 1 | - - - | - - - | 0 | 355 |
Electrical schematic:
Mechanical Dimension(Unit: mm)
Applications:
Portable electrical and electronic equipment
Medical equipment
Test and measurement equipment
Small and medium-sized machines and household equipment
Single-phase power supply,switch-mode power supply

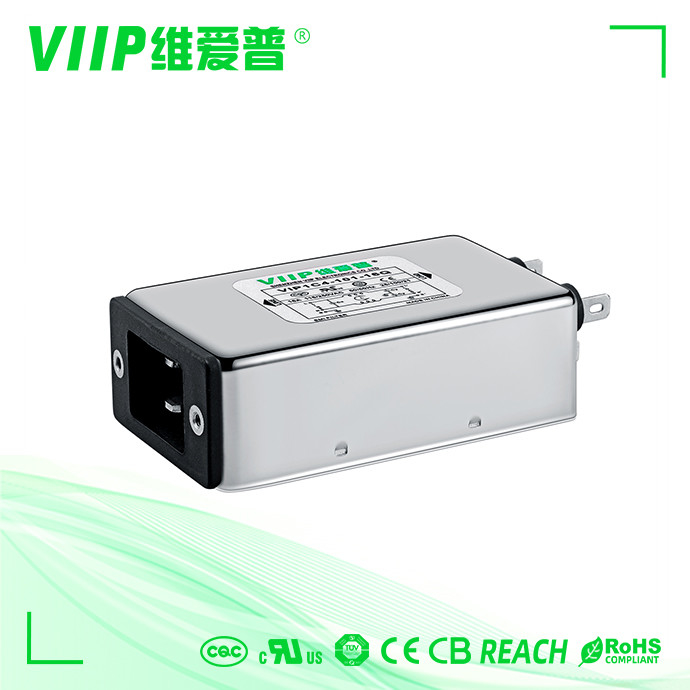

Product Picture
|
