Product Brief

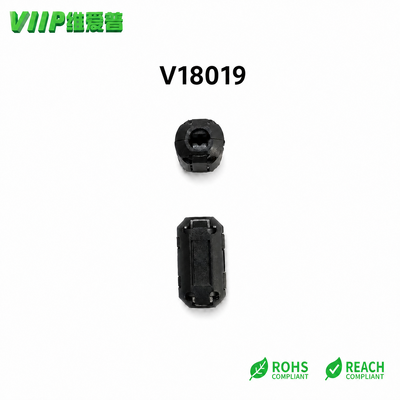

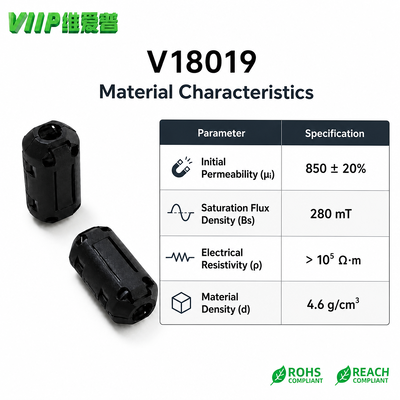

V18019 split ferrite core adopts VN09 NiZn ferrite raw material and features initial permeability of 850. Thanks to its high resistivity and low eddy current loss, it delivers outstanding high frequency noise absorbing performance. The snap together structure is manufactured with tight dimension control to guarantee firm locking. Its Curie temperature exceeds 130 degrees Celsius, which enables consistent magnetic performance when the surrounding temperature changes. As a stable EMI suppression component, it effectively cuts down high frequency electromagnetic interference on cables and protects signals from distortion.

Application Scope

It can be applied to consumer electronic products communication facilities audio video equipment smart home devices industrial control instruments new energy charging units computer connecting wires and other similar application scenarios.

Purpose

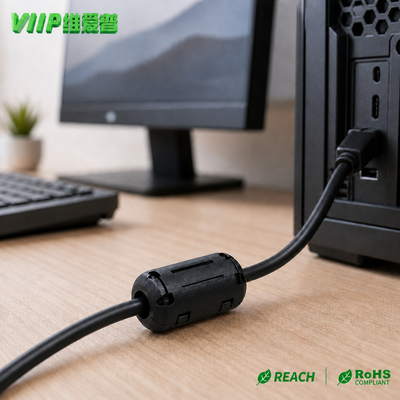

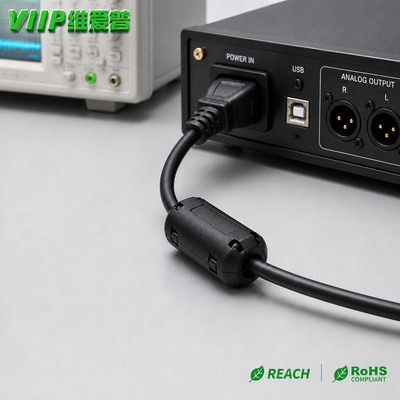

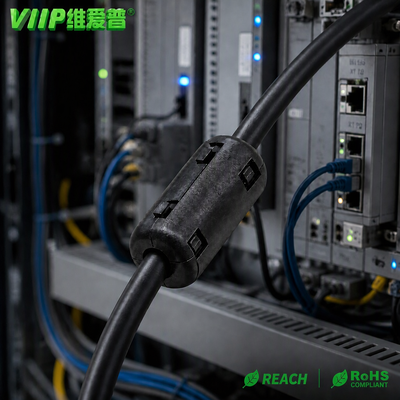

It is mounted on power cables data transmission lines USB cords and audio video signal cables to filter high frequency EMI and RFI noise. It suppresses stray interference in the signal transmission path improves signal quality and helps end products satisfy EMC test standards.

FAQ

1.Q Can this ferrite core work for both power cables and signal cables ?

A Yes this NiZn snap ferrite core is compatible with both power cables and signal cables. It can suppress high frequency noise on both types of wires for stable operation.

2.Q What will affect the noise suppression effect of the ferrite core ?

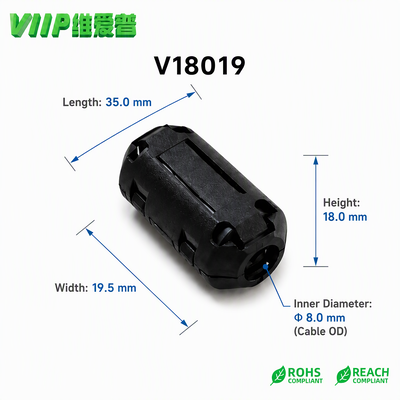

A The matching degree between inner hole size and cable outer diameter installation position and the interference frequency band will all influence the final noise reduction result.

3.Q Is the plastic housing of the snap ferrite core durable ?

A The plastic shell is made of high strength engineering plastic. It is tough and not easy to crack under normal assembly and repeated opening and closing operations.

4.Q Do you keep stock for this V18019 ferrite core model ?

A We maintain regular stock for common models. You can send us your required quantity and we will check the stock status and inform you promptly.

5.Q Can you provide impedance curve test report for this ferrite core?

 A Yes we can offer impedance curve and related technical test reports for this model to support your EMC design and verification.
