VIP4‑1B‑06 Single‑Stage Single‑Phase EMI Power Line Filter 6A RMS 115/250VAC Metal Case Bolt Mount EMC Noise Suppression Filter for Industrial Automation Test Instrument Power

Brand Name:	Weiaipu
Model Number:	VIP4-1B-06(B041Q0994)
MOQ:	120PCS
Price:	6-8USD
Packaging Details:	Carton
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Shen Zhen

Certification:

CQC CE ROHS TUV CB REACH UL

Voltage Rating:

115/250VAC

Leakagecurrent:

0.5 mA Max @115VAC / 60 Hz1.0 mA Max @250VAC / 50 Hz

Operating Frequency:

50/60Hz

Current Rating:

6A RMS Max

Productname:

Single Phase EMI Filter

Insertion Loss:

Tested Under 50‑Ohm System (data For Reference Only)

Supply Ability:

3000PCS/WEEK

Highlight:

Single-Phase EMI Power Line Filter

6A 115/250VAC EMI Filter

Bolt Mount EMC Noise Suppression Filter

Product Description

VIP4‑1B‑06 Single‑Stage Single‑Phase EMI Power Line Filter 6A RMS 115/250VAC Metal Case Bolt Mount EMC Noise Suppression Filter for Industrial Automation Test Instrument Power

Product Overview

The VIP4‑1B‑06 is a single‑phase one‑stage EMI power‑line filter manufactured by VIIP (Shenzhen VIIP Electronics). It adopts LC common‑mode & differential‑mode filter circuit topology to suppress conducted electromagnetic interference on AC power lines. This bolt‑mount metal‑cased filter delivers clean power by attenuating high‑frequency common‑mode and differential‑mode noise. Rated for 6A RMS at 115/250VAC, it complies with CE, RoHS and REACH requirements, well‑suited for general‑purpose EMC noise‑mitigation for commercial and industrial electronic equipment.

Highlights

Single‑phase one‑stage LC filter design, effective suppression for common‑mode & differential‑mode power‑line noise
Robust metal shielded enclosure, reliable bolt‑on mounting with 2×Ø5 mounting holes for easy installation
Low leakage current design, meets safety requirements for most commercial electronic devices
High insulation resistance and high‑voltage withstand capability for long‑term operational reliability
Compliant with CE, RoHS, REACH; full traceable manufacturing from VIIP factory
Wide operating temperature range: ‑25 °C ~ +100 °C, adaptable to diverse working environments
Good insertion loss performance under 50‑Ω standard test system for EMI noise attenuation

Application

Suitable for single‑phase AC equipment requiring EMC improvement and power‑line noise suppression:
- Industrial automation equipment & control systems
- Test & measurement instruments
- Office automation devices
- Household & commercial electronic appliances
- Communication and data‑processing hardware
- General‑purpose power supply units for electronic devices

Electrical Characteristics

Item	Specification
Rated Voltage	115 / 250 VAC
Rated Current	6 A RMS Max. (115VAC & 250VAC)
Operating Frequency	50 / 60 Hz
Leakage Current (Line‑to‑Ground)	0.5 mA Max @115VAC / 60 Hz 1.0 mA Max @250VAC / 50 Hz
Hi‑pot Test (1 min)	Per standard safety specification
Insulation Resistance	≥100 MΩ @500 VDC (Input / Output to Ground)
Operating Temperature Range	‑25 °C ~ +100 °C
Filter Topology	Single‑stage LC (Common‑mode + Differential‑mode)
Insertion Loss	Tested under 50‑Ohm system (data for reference only)

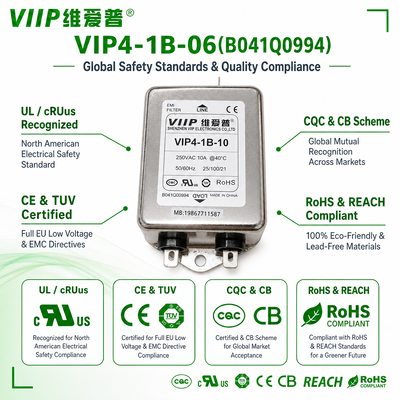

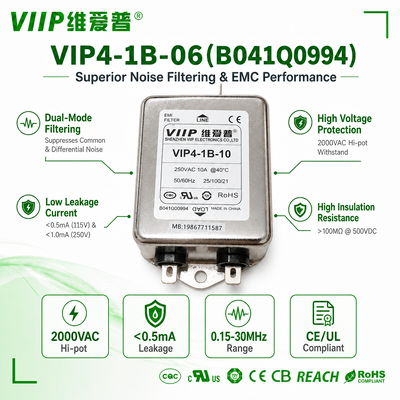

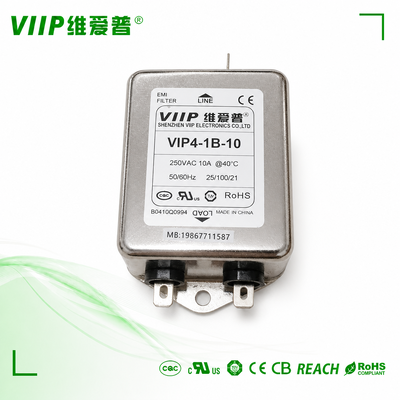

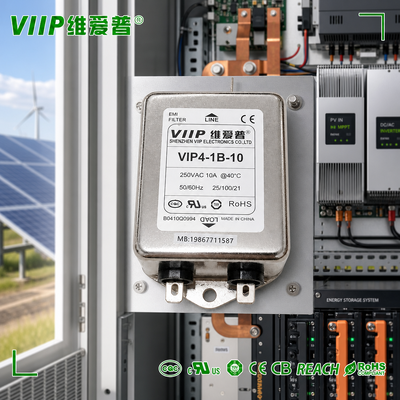

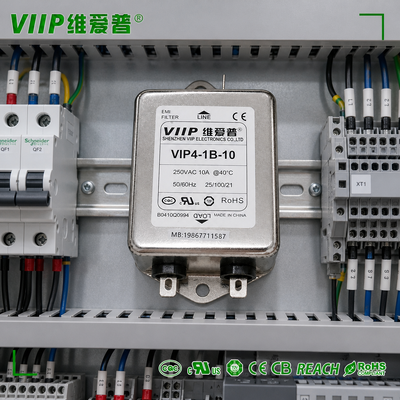

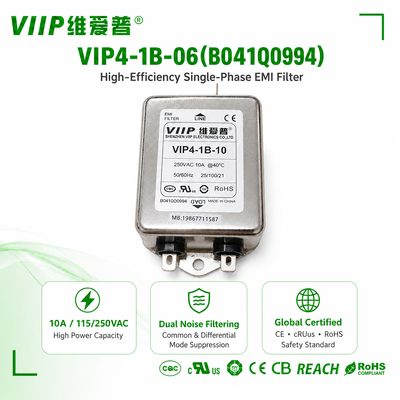

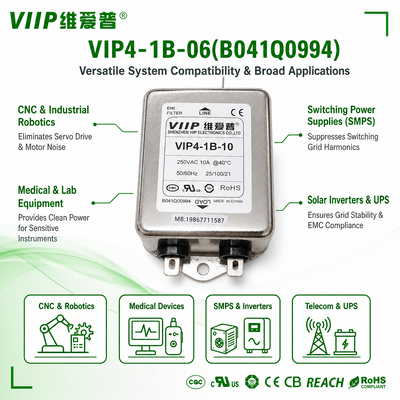

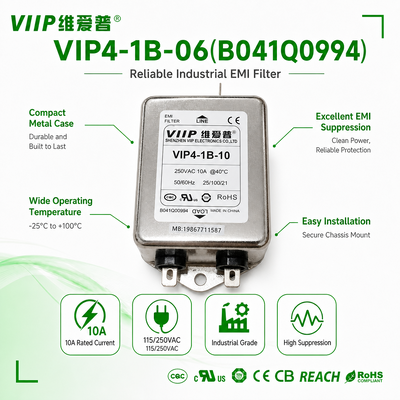

Electrical Schematic & Product Images

Support and Services

Product Overview: High-performance single-phase EMI filter, compliant with international standards.
Technical Support: Refer to the datasheet and installation manual for full specs, wiring diagrams, and safety guidelines.
Installation: Must be performed by qualified personnel; ensure proper grounding and secure connections per applicable electrical codes.
Maintenance: Regular inspection recommended to maintain filter efficiency and extend product lifespan.
Troubleshooting: Verify wiring, check for physical damage, and confirm operating conditions (temperature/humidity) meet specifications.
Custom Solutions: Tailored EMI filter options available, including product testing and certification support. Contact our technical team for application advice and problem resolution.

Frequently Asked Questions

Q1: What safety and environmental certifications does VIP4‑1B‑06 have?

A1: VIP4‑1B‑06 is certified with CE, RoHS and REACH, meeting EU environmental and safety requirements.

Q2: What are voltage, current, temperature & leakage current specs of VIP4‑1B‑06?

A2: Rated voltage: 115/250VAC; Rated current: 6A RMS Max; Operating frequency: 50/60Hz; Operating temperature range: ‑25°C ~ +100°C. Max leakage current: 0.5 mA @115VAC/60Hz, 1.0 mA @250VAC/50Hz.

Q3: What's its hi‑pot standard? Mount type & EMI suppression effect?

A3: Insulation resistance ≥100 MΩ @500VDC (Input / Output to Ground). High‑potential withstand test runs for 1 minute. It is metal‑cased bolt‑mount type with 2×Ø5 mounting holes. Adopts single‑stage LC topology with common‑mode inductor, Cx and Cy capacitors, suppressing both common‑mode and differential‑mode conducted noise for EMC compliance. Insertion loss data is measured under 50‑Ohm system for reference only.

Q4: Do you offer free EMC pre‑test & model selection guide? Can you support EMI rectification for inverters and servo equipment?

A4: Free EMC pre‑test and filter model‑selection guidance are available. We provide professional EMC debugging and EMI rectification solutions for inverters, servo systems and other industrial devices.

Q5: What is the recommended wire cross‑section for VIP4‑1B‑06? Can it suppress high‑frequency interference from servo drives?

A5: The matching wire shall satisfy 6A current‑carrying capacity. Its internal LC filter circuit can effectively attenuate high‑frequency EMI noise generated by servo drives. Actual performance is subject to real‑world installation and system impedance.
