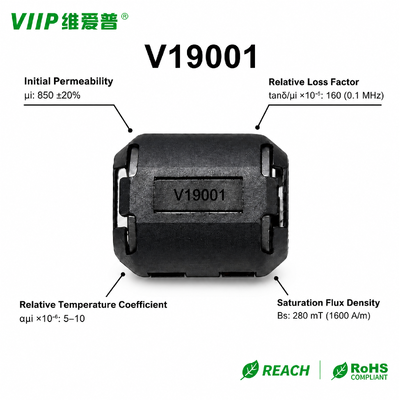

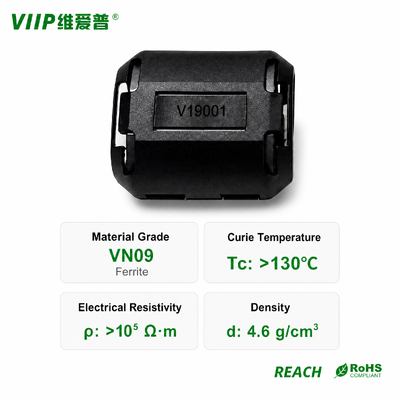

V19001 split ferrite core is manufactured from VN09 nickel zinc ferrite raw material and comes with an initial permeability of 850. It provides excellent ability to dampen high frequency noise signals. Adopting a convenient snap fit design, this item maintains consistent dimensions under strict tolerance control. There is no requirement to cut cables when mounting it. The magnetic material has a Curie temperature higher than 130 degrees Celsius and high resistivity for stable insulation performance. It complies with RoHS and REACH environmental directives and has robust mechanical strength to prevent breakage. This component efficiently suppresses high frequency electromagnetic interference and radio frequency noise carried over cables to stabilise power and signal transmission. It is a dependable and mature EMC component for noise reduction.

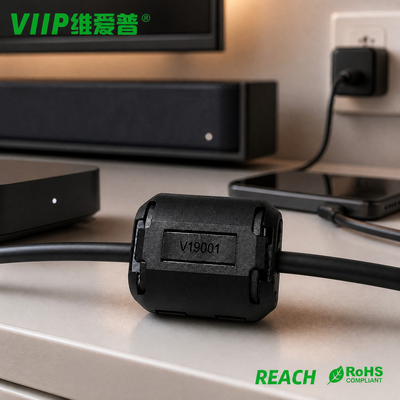

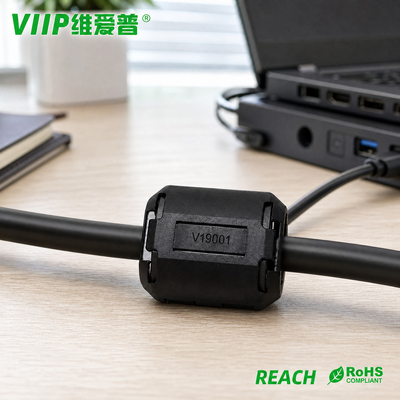

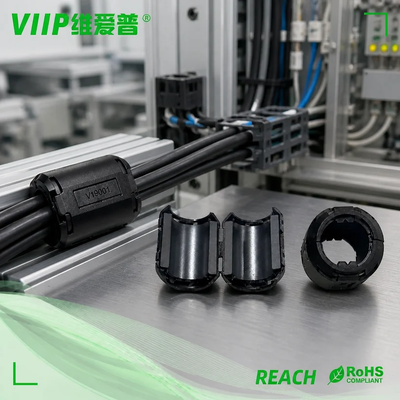

It finds broad applications in consumer electronics smart home devices industrial automation machinery communication units power adapters audio and video hardware medical electronics printers scanners and other peripheral devices. It is suitable for EMI optimisation of finished power wires data cables signal lines and audio video cords. It can be applied for EMC debugging in new product development and on site modification of already deployed equipment.

This component is engineered to suppress conducted high frequency EMI and RFI noise on cables and filter out undesired interference signals. It helps cut down common issues brought by electromagnetic disturbance such as signal distortion data corruption screen flicker and accidental activation of devices. It helps end products pass EMC compliance testing smoothly and guarantees continuous stable operation of electronic systems.

Question 1: Does the ferrite core need to be grounded to achieve good filtering effect ?

Answer 1: No grounding is required for this type of snap on ferrite core. It works by converting high frequency noise into heat through its magnetic loss property. Grounding will not improve its suppression performance.

Question 2: Can this ferrite core operate on DC power cables ?

Answer 2: Yes it is compatible with DC power lines. It targets high frequency interference signals while leaving the direct current power itself unaffected. It is widely used for EMI filtering on DC output cables of adapters.

Question 3: Will bending or twisting the cable affect the performance of the ferrite core ?

Answer 3: Cable bending itself will not change the magnetic characteristic of the ferrite core. But sharp bends near the core may damage the cable insulation. You should reserve enough slack during installation.

Question 4: What is the difference between a snap on ferrite core and a solid ring ferrite core ?

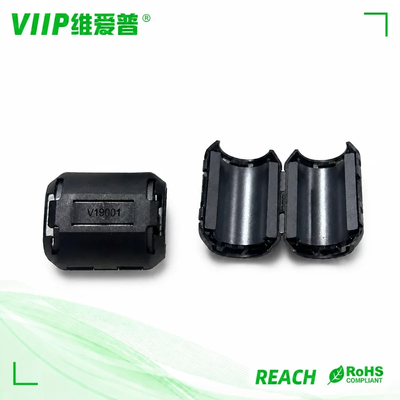

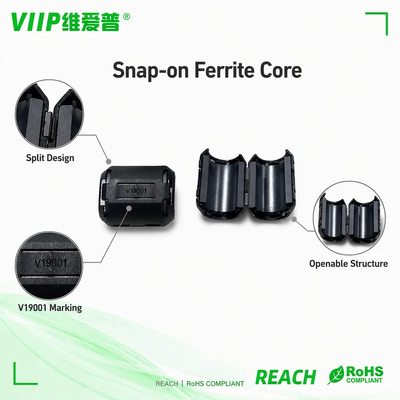

Answer 4: The snap on type can be opened and fitted on terminated cables without disassembly. Solid ring cores must be threaded onto cables before connectors are crimped. Both can deliver similar EMI performance with the same magnetic material and size.

Question 5: Can this ferrite core help solve radiation EMI issues?

 Answer 5: It mainly addresses conducted noise along cables. It can indirectly reduce radiated interference by cleaning up noise on the cable which often acts as an antenna. For severe radiation problems extra shielding measures may still be needed.
