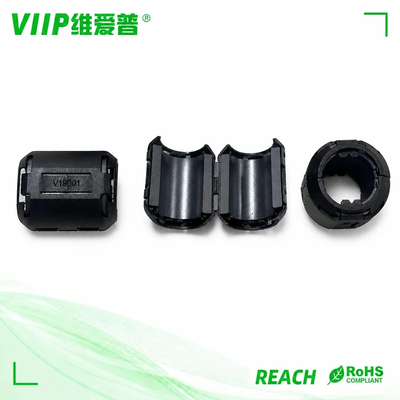

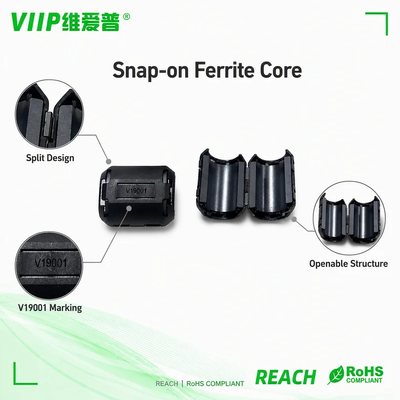

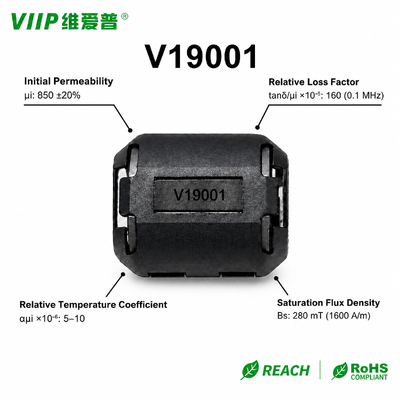

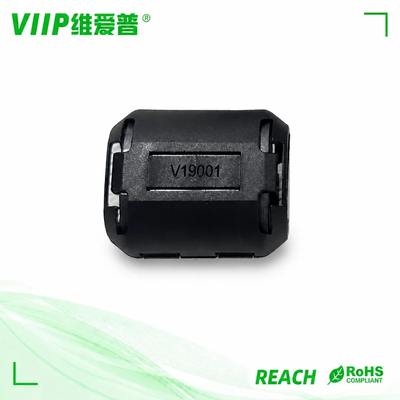

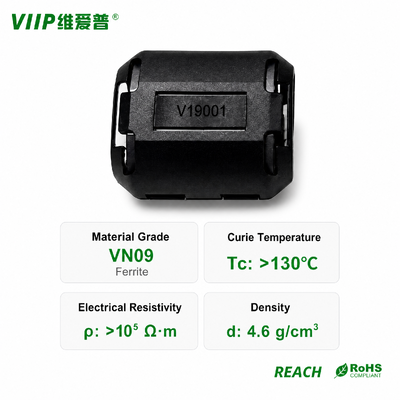

V19001 clip-on split ferrite core is fabricated from VN09 nickel zinc ferrite material, featuring an initial permeability of 850. It delivers outstanding capability to attenuate high-frequency noise signals. Equipped with a user-friendly snap-fit construction, this product keeps consistent physical dimensions under precise tolerance control. Cable cutting is not needed during installation. The magnetic material owns a Curie temperature above 130 degrees Celsius and high resistivity to ensure reliable insulation performance. It meets RoHS and REACH environmental standards and features strong mechanical strength to resist cracking. This EMC component effectively mitigates high-frequency electromagnetic interference and radio frequency noise transmitted via cables, stabilising power supply and signal transmission. It is a trustworthy and well-proven solution for noise suppression.

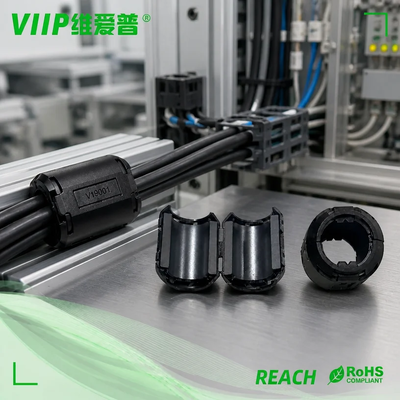

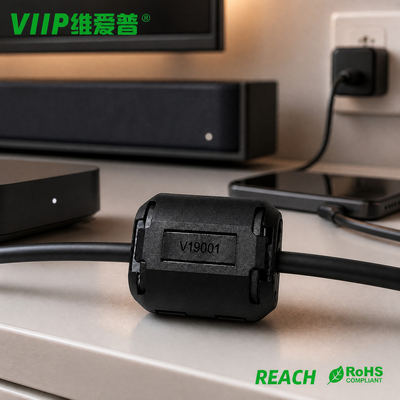

It is widely deployed in consumer electronics, smart home hardware, industrial automation equipment, communication modules, power adapters, audio and video equipment, medical electronics, printers, scanners and other peripheral products. It works great for EMI optimisation of finished power cords, data cables, signal wires and audio-video cables. It supports EMC tuning in new product development and field retrofitting for equipment already put into service.

This component is designed to attenuate conducted high-frequency EMI and RFI noise on cables and filter out unwanted interference signals. It reduces common faults triggered by electromagnetic disturbance, including signal distortion, data corruption, screen flicker and unintended device triggering. It assists finished products in passing EMC compliance tests smoothly and ensures sustained and stable operation of electronic systems.

Question 1: Does the ferrite core need to be grounded to achieve good filtering effect ?

Answer 1: Grounding is not necessary for this snap on ferrite core. It functions by transforming high frequency noise into heat relying on its magnetic loss property. Ground connection will not boost its noise suppression capability.

Question 2: Can this ferrite core operate on DC power cables ?

Answer 2: Yes, it can be used on DC power cables. It only acts on high frequency interference signals and will not interfere with normal direct current. It is commonly applied for EMI filtering on the DC output cables of power adapters.

Question 3: Will bending or twisting the cable affect the performance of the ferrite core?

 Answer 3: Cable bending will not alter the magnetic properties of the ferrite core itself. However, sharp bends close to the core may damage the cable insulation layer. Sufficient cable slack should be reserved during installation.

Question 4: What is the difference between a snap on ferrite core and a solid ring ferrite core?

 Answer 4: Snap on ferrite cores can be opened and mounted on cables with pre installed connectors without extra disassembly. Solid ring cores have to be threaded onto cables before connector crimping. Given the same magnetic material and dimension, both types can offer comparable EMI suppression results.

Question 5: Can this ferrite core help solve radiation EMI issues ?

Answer 5: It mainly handles conducted noise travelling along cables. Since noisy cables often work like antennas, cleaning up conducted noise can indirectly cut radiated interference. Additional shielding solutions may still be required if you face serious radiation problems.
