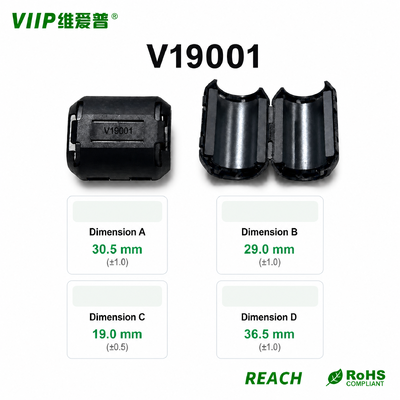

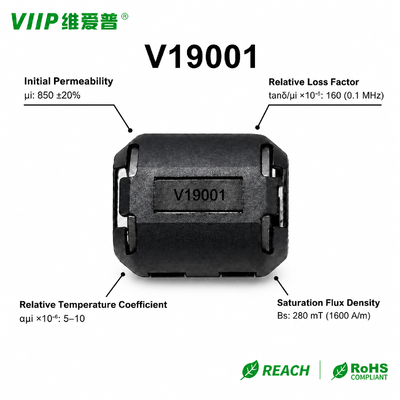

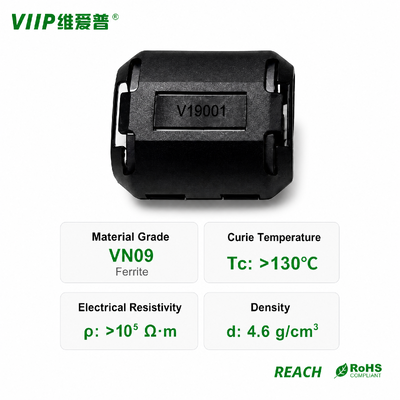

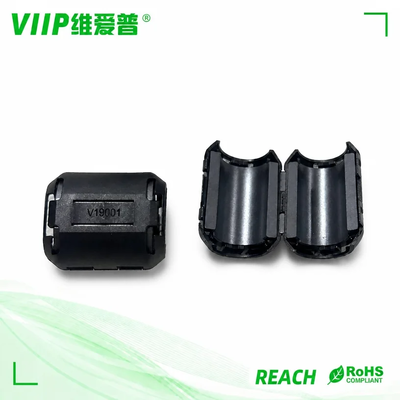

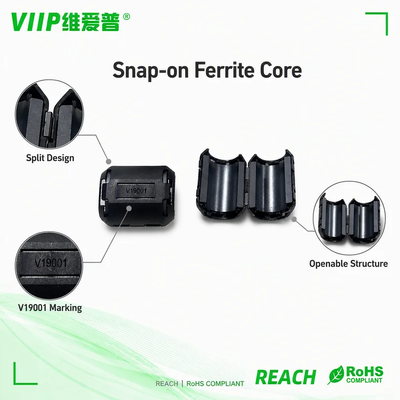

V19001 snap on ferrite core is produced from VN09 nickel zinc ferrite material with an initial permeability value of 850. It delivers strong capacity to attenuate high frequency noise signals. Designed with an open clip structure, this product maintains stable dimensions under rigorous tolerance management. Users do not need to cut cables during installation. The magnetic material features a Curie temperature above 130 degrees Celsius and high resistivity to deliver reliable insulation. It meets RoHS and REACH environmental standards and possesses good mechanical strength to resist cracking. This component effectively suppresses high frequency electromagnetic interference and radio frequency noise transmitted along cables, stabilising power supply and signal transmission. It is a reliable and well proven EMC component for noise mitigation.

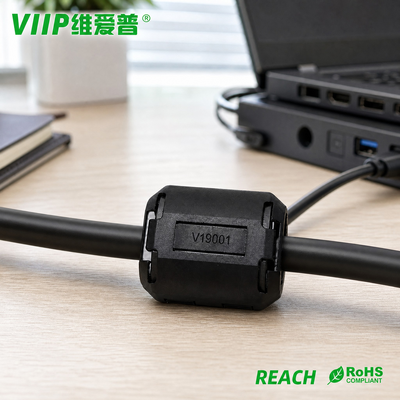

It is widely adopted in consumer electronics smart home hardware industrial automation equipment communication products power adapters audio visual devices medical electronics printers scanners and other peripheral gadgets. It fits EMI optimisation for finished power cords data cables signal wires and audio video lines. It can be used for EMC tuning during new product development as well as on site upgrade of already installed equipment.

This part is developed to reduce conducted high frequency EMI and RFI noise on cables and filter out unwanted interference signals. It helps reduce common faults caused by electromagnetic disturbance including signal distortion data loss screen flicker and unintended triggering of equipment. It supports finished products to pass EMC compliance assessments smoothly and ensures stable continuous operation of electronic systems.

Question 1: Does the ferrite core work the same on all cable sizes?

 Answer 1: The noise suppression performance varies with cable outer diameter. You need to select a ferrite core with proper inner diameter to fit your cable tightly. Loose fitting will greatly weaken its EMI reduction effect.

Question 2: Can this ferrite core be used for outdoor equipment?

 Answer 2: This standard ferrite core can work outdoors if it is placed inside a sealed enclosure. Direct long term exposure to rain heavy moisture and ultraviolet rays may damage the plastic shell and affect its service life.

Question 3: What will happen if the ferrite core is installed far away from the noise source?

 Answer 3: If you place the ferrite core too far from the interference source, noise may re couple onto the cable section between the core and the device. It will lower the overall filtering performance significantly.

Question 4: Is custom service available for ferrite cores?

 Answer 4: Yes we provide custom solutions. We can adjust dimensions magnetic materials and housing structures according to your unique frequency requirements and housing installation space.

Question 5: How should I store unused ferrite cores ?

Answer 5: Keep unused ferrite cores in dry and room temperature conditions. Avoid heavy squeezing dropping and exposure to corrosive chemicals. Proper storage prevents shell breakage and maintains stable magnetic properties.
