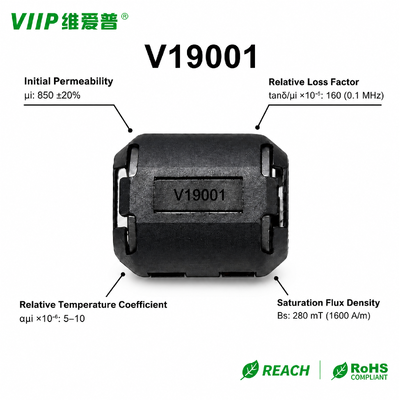

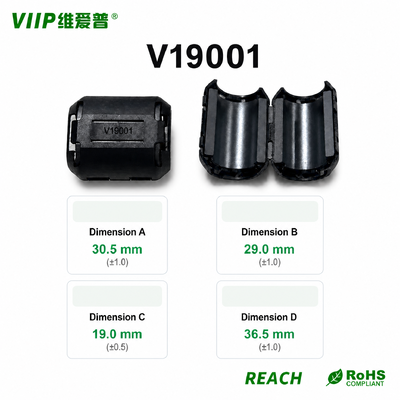

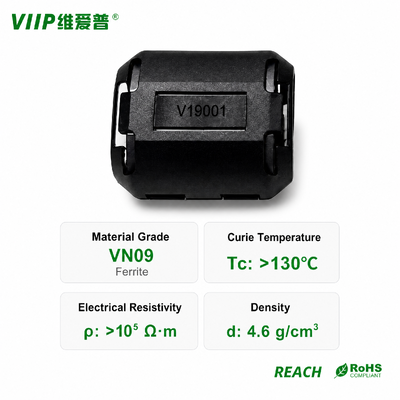

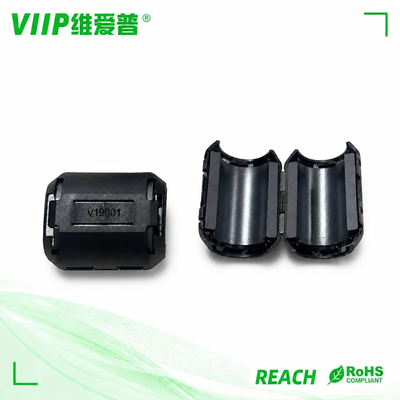

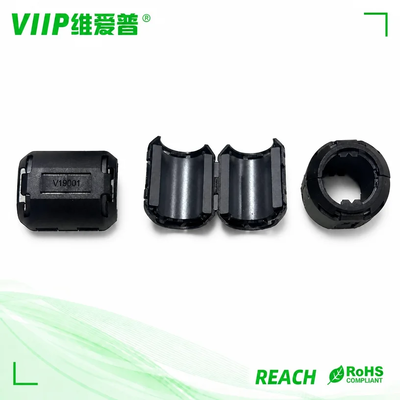

V19001 clip on ferrite core adopts VN09 nickel zinc ferrite raw material with an initial permeability of 850. It offers excellent capability to absorb high frequency noise signals. Featuring a split clip structure, this product maintains consistent dimensions with strict tolerance control. No cable cutting is necessary during installation. The magnetic material has a Curie temperature exceeding 130 degrees Celsius and high resistivity for dependable insulation performance. It conforms to RoHS and REACH environmental standards and boasts solid mechanical strength to avoid breakage. This component efficiently absorbs high frequency electromagnetic interference and radio frequency noise carried by cables, stabilising power supply and signal transmission. It is a practical and mature EMC part for noise reduction.

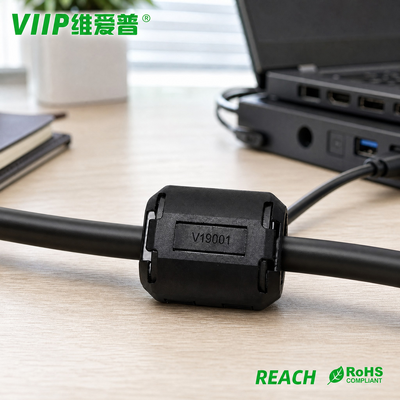

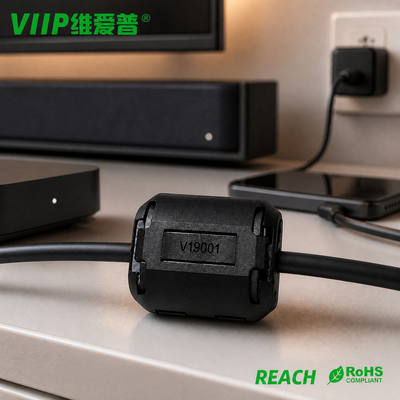

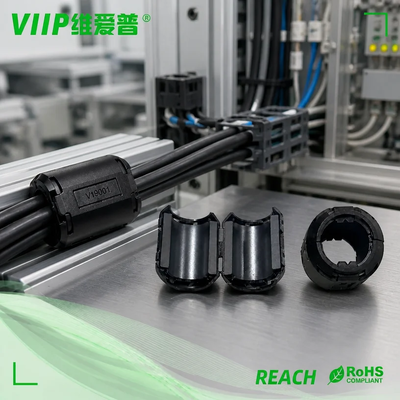

It is extensively applied in consumer electronics smart home products industrial automation units communication facilities power adapters audio and video equipment medical electronics printers scanners and other peripheral devices. It is suitable for anti interference optimisation of finished power lines data lines signal cables and audio video wires. It can be used for EMC debugging in new product development as well as field modification of installed equipment.

This item is designed to curb conducted high frequency EMI and RFI noise on cables and filter out undesired interference signals. It helps minimise typical problems triggered by electromagnetic disturbance such as signal distortion data failure screen flickering and accidental activation of devices. It helps end products pass EMC compliance tests without difficulty and guarantees steady long time operation of electronic systems.

Question 1: Can one ferrite core solve all kinds of electromagnetic interference problems?

 Answer 1: A single ferrite core cannot handle every type of EMI issue. The suppression effect is closely related to the interference frequency cable specification and installation layout. We can suggest suitable magnetic materials and installation schemes according to your actual test conditions.

Question 2: Can multiple ferrite cores be stacked or used together on the same cable?

Answer 2: Ferrite cores can be fitted on the same cable to enhance filtering effect in most cases. However stacking too many cores will not bring unlimited improvement. You need to verify the actual effect with EMC testing to avoid unnecessary cost increase.

Question 3: Will the ferrite core affect the normal transmission of power or signals?

Answer 3: Properly selected and installed ferrite cores only consume high frequency interference signals. They have little influence on low frequency power and normal working signals. Improper material selection may cause unexpected impacts on signal quality.

Question 4: What is the service life of this split ferrite core?

 Answer 4: Under normal operating environment within the rated temperature range, the ferrite core has a long service life. Its magnetic properties will not degrade rapidly. Physical damage from heavy impact or improper storage is the main cause of performance failure.

Question 5: What is the difference between nickel zinc ferrite and manganese zinc ferrite?

Answer 5: Nickel zinc ferrite works better for high frequency EMI suppression, which is the common choice for clip on cable cores. Manganese zinc ferrite is suitable for low frequency noise filtering and power transformation scenarios. You can pick the type based on your interference frequency band.
