VIIP V19008 Snap On Ferrite Core Noise Reduction Ferrite Core for General Electronic Cables

Brand Name:	VIIP WeiAiPu
Model Number:	V19008
MOQ:	196
Price:	1.55USD
Packaging Details:	Carton
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Certification:

Rohs Reach

Reman-ence:

Initial Permeability:

Mate-rial:

Density:

Relative Loss Factor:

16(0.01MHz)

Coercivity:

Highlight:

Snap On Ferrite Core

Noise Reduction Ferrite Core

EMI Ferrite Core for Cables

Product Description

Product Introduction

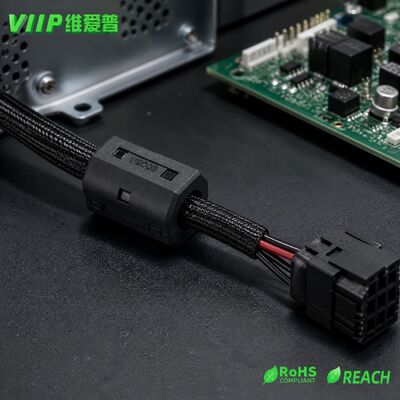

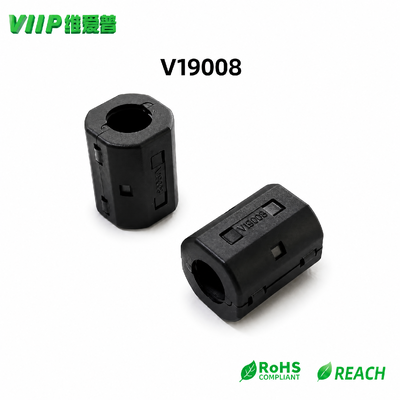

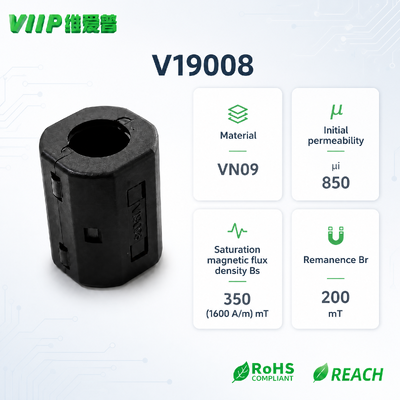

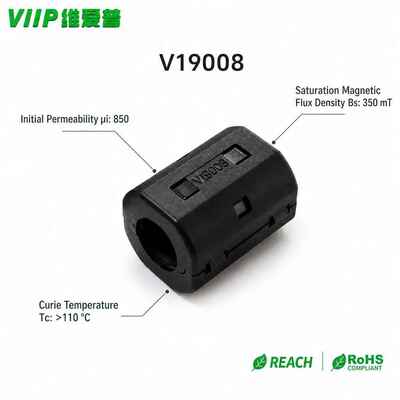

VIIP V19008 snap type ferrite core is produced from premium VN09 ferrite material with an initial permeability of 850 and reliable high frequency noise reduction capability. It delivers minimum impedance of 75 Ohm at 25 MHz and 135 Ohm at 100 MHz. This item features an open clip style housing with precise dimension control and consistent tolerance. It has a curie temperature higher than 110 degree Celsius high resistivity and low magnetic loss. It keeps steady EMI filtering performance amid changing ambient temperatures and prolonged continuous operation. It can be quickly clamped onto pre assembled cable harnesses with no need for wire cutting or insulation peeling and it is a popular EMC part to solve electromagnetic interference issues across the electronics sector.
VIIP V19008 Snap On Ferrite Core Noise Reduction Ferrite Core for General Electronic Cables

Application Scope

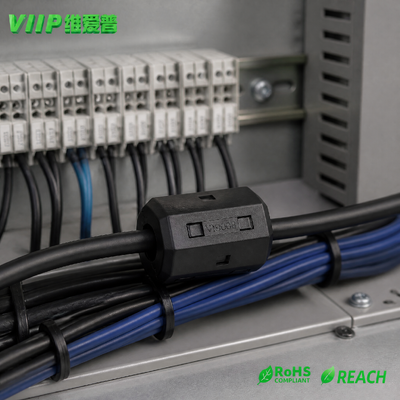

It finds broad application in consumer electronics industrial control devices power adapters communication hardware audio visual equipment medical electronics lighting products and automated wiring systems. It works well with many cable types including signal wires DC power lines USB data cords audio video cables and internal and external wiring harnesses for electronic machinery.
VIIP V19008 Snap On Ferrite Core Noise Reduction Ferrite Core for General Electronic Cables

Purpose

It serves to curb high frequency common mode electromagnetic noise on wiring reduce radiated electromagnetic emissions from cables and shield internal transmission signals from outside electromagnetic disturbance. It enhances signal integrity cuts down the radiation level of electronic devices assists end products in meeting EMC electromagnetic compatibility requirements and prevents typical interference problems such as signal distortion screen artifacts and audio static noise.

FAQ

1.Question What is the proper wire size for V19008 snap on ferrite core?

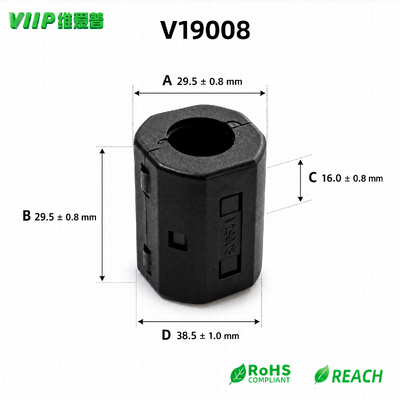

Answer The inner hole size of this ferrite core fits cables within the corresponding diameter range you need to check the outer diameter of your wire before selection

2.Question Will repeated opening and closing damage the clip housing of the ferrite core ?

Answer The plastic shell is designed for repeated clamping operations but excessive frequent disassembly may shorten the service life of the buckle structure

3.Question Can this ferrite core work well for wireless module wiring?

Answer Yes it is suitable for the wiring of most wireless modules to suppress high frequency interference and stabilize wireless signal transmission

4.Question What factors will shorten the service life of this snap on ferrite core ?

Answer Long term exposure to corrosive liquid strong impact and continuous ultra high temperature environment will accelerate aging and damage of the product

5.Question Do you offer customized ferrite cores with different impedance specifications ?

Answer We support customization for ferrite cores including different material grades sizes and impedance parameters based on your project requirements

Tags:

Nizn High Permeability Ferrite Core

Transformer EMI Ferrite Core Coil

ferrite toroid core OEM ODM

Products Details

Home > Products >

EMI Ferrite Core

VIIP V19008 Snap On Ferrite Core Noise Reduction Ferrite Core for General Electronic Cables

All Category

EMC EMI Filter

Single Phase EMI Filter

3 Phase EMI Filter

Ferrite Rings Around Cables

DC EMI Filters

AC EMI Filter

IEC EMI Filter

Military EMI Filters

Inverter EMI Filter

PCB Low Pass Filter

EMI Suppression Filter

Clip On Ferrite Core

Snap On Ferrite Choke

EMI Ferrite Core

Flat Ferrite Core

VIIP V19008 Snap On Ferrite Core Noise Reduction Ferrite Core for General Electronic Cables

Brand Name:	VIIP WeiAiPu
Model Number:	V19008
MOQ:	196
Price:	1.55USD
Packaging Details:	Carton
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Brand Name:

VIIP WeiAiPu

Certification:

Rohs Reach

Model Number:

V19008

Reman-ence:

200

Initial Permeability:

850

Mate-rial:

VN09

Density:

4.7

Relative Loss Factor:

16(0.01MHz)

Coercivity:

Minimum Order Quantity:

196

Price:

1.55USD

Packaging Details:

Carton

Payment Terms:

T/T
