Product Introduction

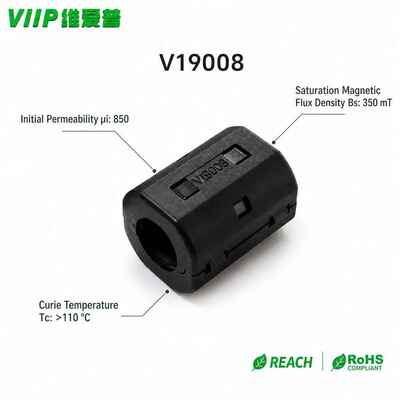

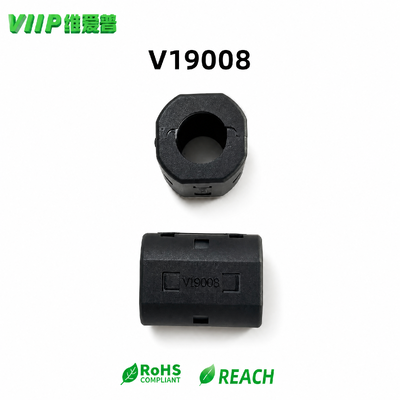

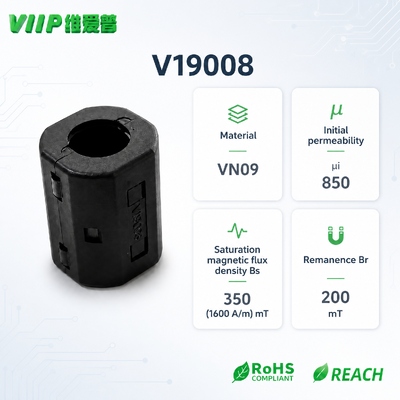

VIIP V19008 snap on ferrite core is produced from premium VN09 ferrite material which has an initial permeability of 850 and great capability to block high frequency noise. It delivers a minimum impedance of 75 Ohm at 25 MHz and 135 Ohm at 100 MHz. This clip on ferrite core comes with an easy open housing and precisely controlled dimensions with consistent tolerances. It features a curie temperature above 110 degree Celsius high resistivity and low magnetic loss. It can sustain reliable EMI filtering performance when temperature changes or the equipment runs continuously for a long period. It clamps onto existing cable harness easily with no wire cutting or insulation removal required and serves as a popular EMC part to resolve electromagnetic interference issues for electronic products.

Application Scope

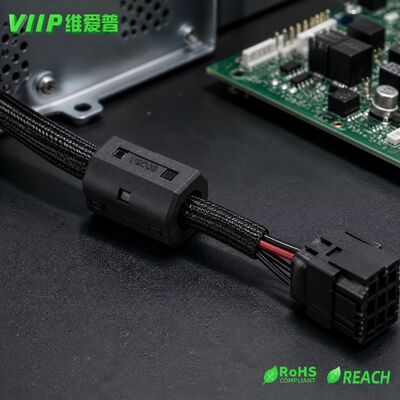

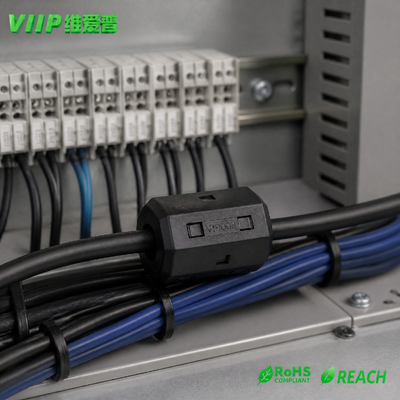

It is commonly applied for consumer electronics industrial controllers power adapters communication hardware audio visual devices medical electronics lighting fixtures and automation wiring systems. It works well with many kinds of cables such as signal lines DC power wires USB cables audio video cords and internal and external wiring harness of different electronic machines.

Purpose

It functions to attenuate high frequency common mode noise on wires cut down unwanted electromagnetic radiation from cables and shield internal signals from outside electromagnetic disturbance. It optimizes signal transmission quality reduces radiation levels of electronic devices assists finished products in meeting EMC compliance standards and prevents common problems triggered by interference including signal disruption screen noise and audio static.

FAQ

1. Question Is this V19008 snap on ferrite core available for bulk order Answer Yes we support bulk production for this snap on ferrite core we can provide stable supply and customized packing solutions to match your purchasing demands
2. Question What is the lead time if I place an order for V19008 ferrite core Answer Our regular lead time for standard snap on ferrite core orders is about one to two weeks it will be confirmed once we receive your formal order details
3. Question Can you provide test reports or material certificates for this ferrite core Answer We can offer relevant material data sheet and performance test documents for V19008 snap on ferrite core to support your EMC project evaluation
4. Question What is the minimum order quantity for the V19008 snap on ferrite core Answer The standard minimum order quantity for this ferrite core is negotiable you can contact our sales team to get the exact MOQ for your order
5. Question Is the plastic housing of this clip ferrite core flame retardant Answer The outer shell of V19008 snap on ferrite core adopts flame retardant plastic material it meets common safety requirements for electronic wiring accessories
