VIP4‑1A‑10(10247) EMI Power Filter, Single‑Stage Common‑Mode Choke with Cx/Cy Capacitors, 10A 115‑250VAC for Conducted Noise Suppression

All Category

Flat Ferrite Core

Miss. Vicky Lee

vip6@szviip.com

19925448748

19925448748

Contact Now

VIP4‑1A‑10(10247) EMI Power Filter, Single‑Stage Common‑Mode Choke with Cx/Cy Capacitors, 10A 115‑250VAC for Conducted Noise Suppression

Brand Name:	Weiaipu
Model Number:	VIP4-1A-10（10247）
MOQ:	245PCS
Price:	2.82USD
Packaging Details:	Carton
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Shen Zhen

Certification:

CQC CE ROHS TUV CB REACH UL

Voltage Rating:

115/250VAC

Leakagecurrent:

≤0.3mA @115VAC/60Hz；≤0.6mA @250VAC/50Hz

Operating Frequency:

50/60Hz

Current Rating:

10A RMS Max

Productname:

Single Phase EMI Filter

Insertion Loss:

Tested Under 50Ω System, For Reference Only

Supply Ability:

3000PCS/WEEK

Highlight:

EMI power filter 10A

single-stage common-mode choke filter

115-250VAC noise suppression filter

Product Description

10A 250VAC Single Phase EMI Filter VIP4‑1A‑10(10247) Low Leakage Current Chassis Mount EMC Power Noise Filter

Product Overview

VIP4‑1A‑10(10247) is VIIP single‑phase 10A AC EMI power filter for 115/250VAC 50/60Hz equipment. Single‑stage LC topology with common‑mode choke, Cx/Cy capacitors suppress line‑borne common‑mode and differential‑mode noise. Metal housing with spade tab terminals and mounting holes for chassis installation.

Highlights

‑ 10A RMS,115/250VAC 50/60Hz
‑ Single‑stage LC EMI suppression circuit
‑ Low leakage current, high insulation resistance ≥100MΩ@500VDC
‑ Metal enclosure, spade tab terminals, chassis‑mount design
‑ Temp range:‑25℃~+100℃

Application

Suitable for switching power supply, industrial automation, test instruments, office equipment and other single‑phase AC devices needing power‑line EMI filtering.

Electrical Characteristics

Item	Specification
Model	VIP4‑1A‑10 (10247)
Phase	Single‑phase
Rated Voltage	115 / 250 VAC
Rated Current	10 A RMS Max.
Operating Frequency	50 / 60 Hz
Leakage Current (Line‑to‑Ground)	≤0.3 mA @115VAC,60Hz ≤0.6 mA @250VAC,50Hz
Insulation Resistance	≥100 MΩ @500VDC (Input/Output to Ground)
Circuit Topology	Single‑stage LC (Common‑mode choke + Cx, Cy capacitors)
Operating Temperature Range	‑25℃ ~ +100℃
Insertion Loss	Tested under 50Ω system (for reference only)

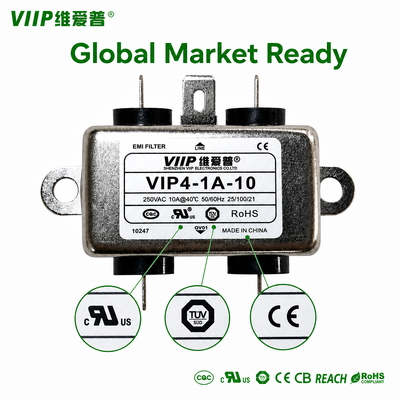

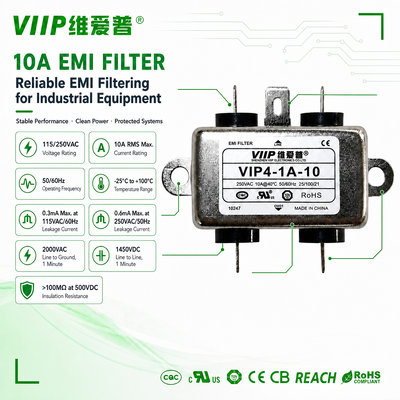

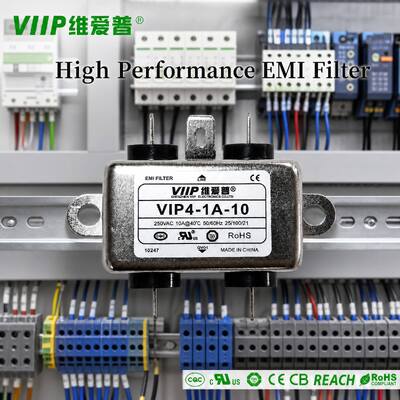

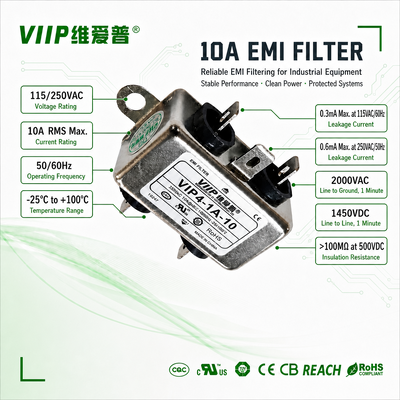

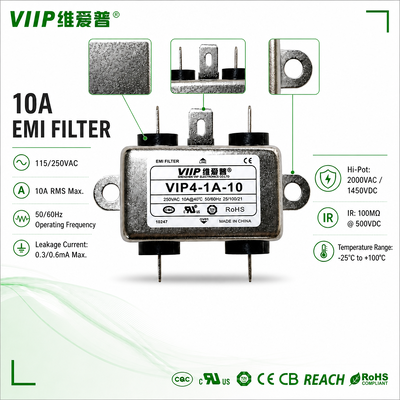

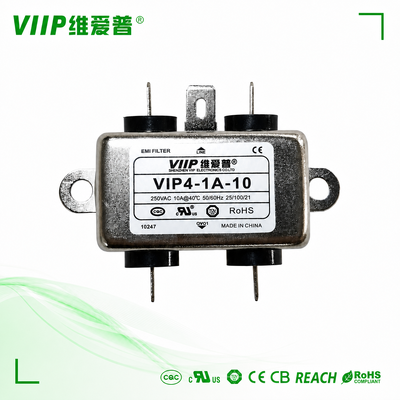

Electrical Schematic & Product Images

Support and Services

Product Overview: High-performance single-phase EMI filter, compliant with international standards.
Technical Support: Refer to the datasheet and installation manual for full specs, wiring diagrams, and safety guidelines.
Installation: Must be performed by qualified personnel; ensure proper grounding and secure connections per applicable electrical codes.
Maintenance: Regular inspection recommended to maintain filter efficiency and extend product lifespan.
Troubleshooting: Verify wiring, check for physical damage, and confirm operating conditions (temperature/humidity) meet specifications.
Custom Solutions: Tailored EMI filter options available, including product testing and certification support. Contact our technical team for application advice and problem resolution.

Frequently Asked Questions

What safety and environmental certifications does VIP4-1A-10 have?

VIP4-1A-10 owns CE, UL, CQC, TUV, CB, RoHS and REACH certificates.

What are voltage, current, temp & leakage current specs of VIP4‑1A‑10?

115/250VAC, 10A RMS max, 50/60Hz, operating temperature: ‑25°C ~ +100°C. Max leakage current: 0.3mA@115VAC/60Hz, 0.6mA@250VAC/50Hz.

What's its hi‑pot standard? Mount type & EMI suppression effect?

Insulation resistance ≥100MΩ @500VDC (Input/Output to Ground) for 1‑minute test. Spade tab terminals with mounting holes. Built‑in single‑stage common‑mode choke with Cx/Cy capacitors to suppress common‑mode & differential‑mode EMI noise for EMC compliance test.

Free EMC pre‑test & model selection guide? Support EMI rectification for inverters?

Free EMC pre‑test and product selection advice are available. We provide dedicated EMI rectification solutions for inverters, servo equipment.

What's the standard wire cross‑section of VIP4‑1A‑10? Can it suppress high‑frequency interference from servo drives?

Matching wiring shall satisfy 10A current‑carrying capacity. Its built‑in LC filter circuit can effectively suppress high‑frequency EMI noise generated by servo drives.
