Chassis Mount Single‑Phase EMI Power Filter VIP4‑2B‑20(B042Q0707),20A 115/250VAC Wide Operating Temperature‑25℃~+100℃ High Insulation Resistance RFI Filter for Sensitive Electronic Equipment

Brand Name:	Weiaipu
Model Number:	VIP4‑2B‑20 (B042Q0707)
MOQ:	80PCS
Price:	8.64USD
Packaging Details:	Carton
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Shen Zhen

Certification:

CQC CE ROHS TUV CB REACH UL

Model:

VIIP VIP4‑2B‑20(B042Q0707)

Brand:

VIIP Weiaipu

Manufacturer:

Shenzhen VIIP Electronics Co.,Ltd.

Rated Voltage:

115/250 VAC

Rated Current:

20A RMS Max

Operating Frequency:

50/60 Hz

Insulation Resistance:

≥100 MΩ @500VDC (Input / Output To Ground)

Supply Ability:

3000PCS/WEEK

Highlight:

Single-Phase EMI Power Filter 20A

RFI Filter 115/250VAC Wide Temperature

Chassis Mount EMI Filter Sensitive Equipment

Product Description

Product Overview

VIP4‑2B‑20 (B042Q0707) is a cost-effective single-phase two-stage EMI filter from VIIP Electronics, rated for 20A RMS at 115/250VAC mains. It provides reliable conducted noise suppression to help manufacturers pass EMC emission tests without excessive component cost. The chassis mount design with screw terminals enables simple integration into mass-produced electronics. It delivers consistent EMI filtering performance while keeping total BOM cost under control for volume production projects.

Product Highlights

Dual-stage LC filter design delivers reliable common-mode & differential-mode noise attenuation
20A RMS current rating fits most single-phase AC powered electronic equipment
Balanced design of leakage current and filtering performance for cost-sensitive projects
Standard metal shield housing with stable and mature manufacturing process
Consistent electrical performance for mass volume orders
Wide operating temperature range for versatile end-product use
Simple chassis mounting and screw wiring to cut assembly labor cost

Applications

Mass-produced consumer electronics and AV equipment
Commercial retail display and signage systems
Standard power supply modules for general electronics
Low and medium volume industrial automation devices
Office automation equipment and test auxiliary devices
Electronic manufacturers looking for affordable EMC noise suppression solutions

Electrical Characteristics

Item	Specifications
Model	VIP4‑2B‑20 (B042Q0707)
Rated Voltage	115 / 250 VAC
Rated Current	20A RMS Max.
Operating Frequency	50 / 60 Hz
Max. Leakage Current (Line‑to‑Ground)	0.5mA Max @115VAC /60Hz 1.0mA Max @250VAC /50Hz
Hi‑pot Test	1 minute withstand (refer to datasheet)
Insulation Resistance	≥100MΩ @ 500VDC (Input / Output to Ground)
Operating Temperature Range	‑25°C ~ +100°C
Insertion Loss	Measured under 50‑Ohm test system *Data for reference only

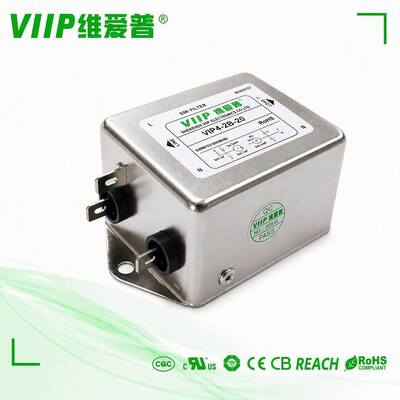

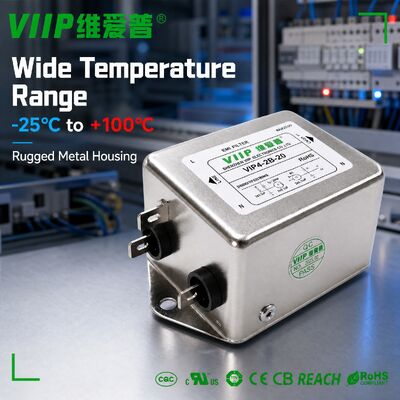

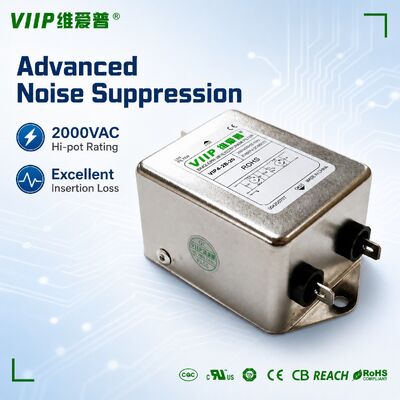

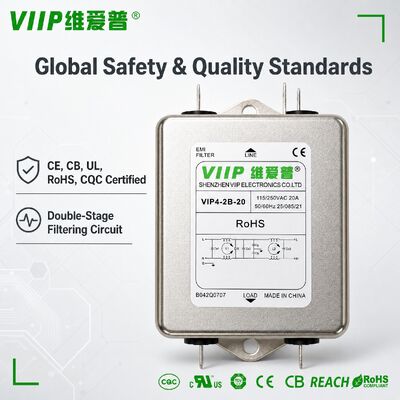

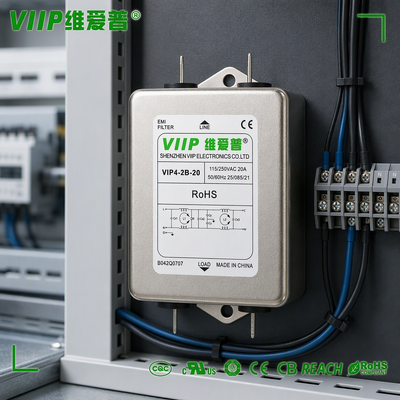

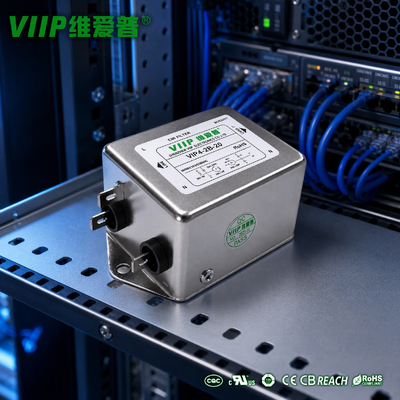

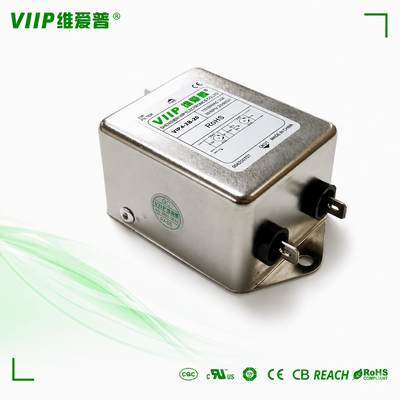

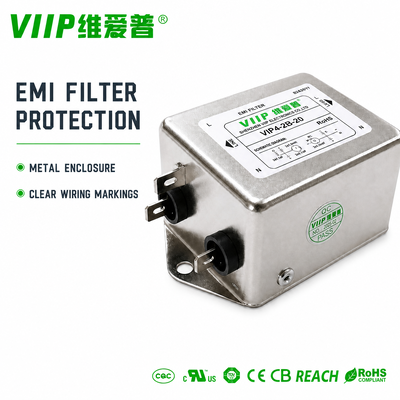

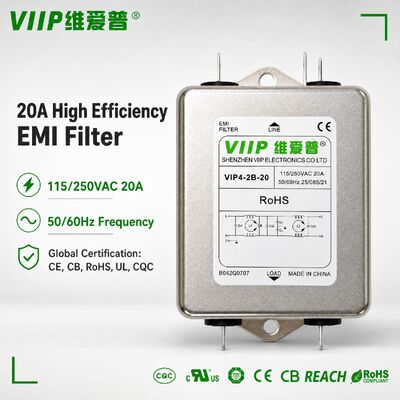

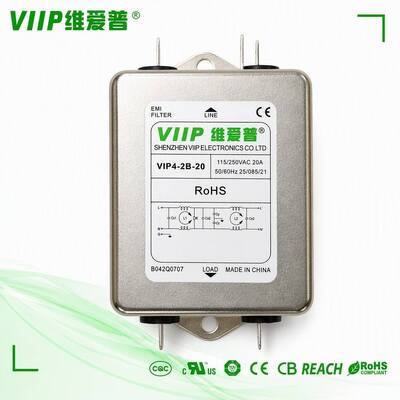

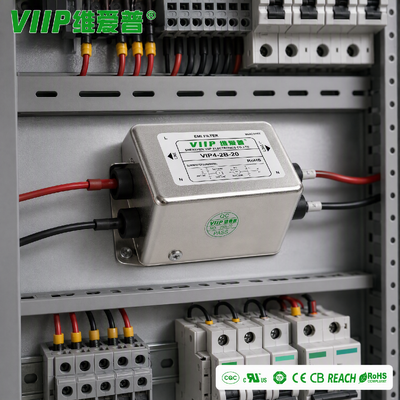

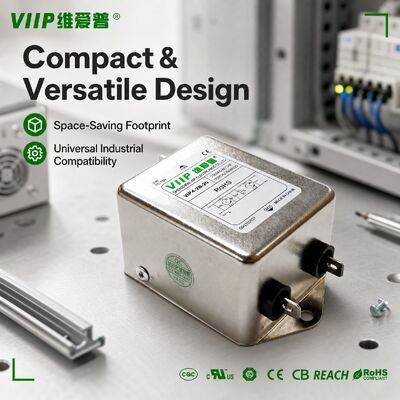

Electrical Schematic & Product Images

Support and Services

Product Overview: High-performance single-phase EMI filter, compliant with international standards
Technical Support: Refer to the datasheet and installation manual for full specs, wiring diagrams, and safety guidelines
Installation: Must be performed by qualified personnel; ensure proper grounding and secure connections per applicable electrical codes
Maintenance: Regular inspection recommended to maintain filter efficiency and extend product lifespan
Troubleshooting: Verify wiring, check for physical damage, and confirm operating conditions (temperature/humidity) meet specifications
Custom Solutions: Tailored EMI filter options available, including product testing and certification support. Contact our technical team for application advice and problem resolution

Frequently Asked Questions

What is your MOQ for VIP4-series power filters?

For standard off-the-shelf VIP4 series models, low MOQ is acceptable. Stock items support small-batch trial orders; for bulk mass production orders, MOQ will be based on production arrangement. Contact our sales team for detailed MOQ information.

Can I get samples of VIP4-series filters for my internal EMC performance pre-test?

Yes, sample service is available. Standard VIP4 models can be supplied as samples for your lab EMC validation and performance verification. Sample freight will be borne by the buyer.

What are the rated voltage, rated current and operating frequency for VIP4-series power filters?

VIP4 series single-phase filters are rated at 115/250VAC, operating frequency 50/60Hz. Different part numbers support different rated current from 1A-10A (for example VIP4-2B-10 is 10A model). Please refer to the product approval sheet for exact parameter of each model.

Can you provide insertion-loss curves including common-mode and differential-mode performance for VIP4-series filters?

Yes. Insertion-loss data under 50Ω standard test system is included in each model's approval sheet. We can provide test curves for common-mode and differential-mode noise attenuation for your circuit simulation and EMC evaluation.

What is the hip-pot (high-potential) test standard for VIP4-series power filters?

Every finished VIP4 filter undergoes hip-pot withstand voltage test for 1 minute as per specification, together with insulation resistance test (≥100MΩ @500VDC input/output to ground). Full test specification is shown on the approval sheet.

If my product fails during EMC testing after using VIP4 filters, can you provide technical support?

Yes, our in-house EMC engineering team can offer technical support. Please share your test report, application condition and circuit information, we will analyze and give suggestions for improvement or model adjustment.

Could you help select proper VIP-series filter model for my specific application such as inverter, servo drive or control cabinet?

Sure. Please provide key information including working voltage, rated current, equipment type, main noise frequency and installation condition. Our team will help you pick the most suitable filter solution for your system.
