VIP4‑2B‑20(B042Q0707) VIIP 20A AC EMI Power Filter Chassis‑Mount Type 115/250VAC Low Leakage Current EMC Filter for Automation Instrument Test & Measurement Equipment Power Supply

All Category

Flat Ferrite Core

Miss. Vicky Lee

vip6@szviip.com

19925448748

19925448748

Contact Now

VIP4‑2B‑20(B042Q0707) VIIP 20A AC EMI Power Filter Chassis‑Mount Type 115/250VAC Low Leakage Current EMC Filter for Automation Instrument Test & Measurement Equipment Power Supply

Brand Name:	Weiaipu
Model Number:	VIP4‑2B‑20 (B042Q0707)
MOQ:	80PCS
Price:	8.64USD
Packaging Details:	Carton
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Shen Zhen

Certification:

CQC CE ROHS TUV CB REACH UL

Model:

VIIP VIP4‑2B‑20(B042Q0707)

Brand:

VIIP Weiaipu

Manufacturer:

Shenzhen VIIP Electronics Co.,Ltd.

Rated Voltage:

115/250 VAC

Rated Current:

20A RMS Max

Operating Frequency:

50/60 Hz

Insulation Resistance:

≥100 MΩ @500VDC (Input / Output To Ground)

Supply Ability:

3000PCS/WEEK

Highlight:

20A AC EMI power filter

chassis-mount EMC filter 115/250VAC

low leakage current EMI filter

Product Description

Single‑Phase Two‑Stage EMI RFI Power Line Filter VIP4‑2B‑20(B042Q0707),20A 115/250VAC 50‑60Hz High Insulation Resistance Conducted Noise Reduction Filter for EMC Compliance Testing

Product Overview

VIP4‑2B‑20 (B042Q0707) is a ready-to-install single-phase two-stage EMI filter from VIIP Electronics, with 20A RMS rating for 115/250VAC mains. Designed for chassis mounting, this EMI filter uses metal shield enclosure and screw terminals to simplify assembly within OEM equipment. It suppresses conducted RFI and EMI on AC input lines, protecting sensitive internal circuits from power line noise. It is engineered for easy mass production integration and shortens product EMC debugging cycles.

Product Highlights

Two-stage filter construction for balanced common-mode & differential-mode noise attenuation
20A high current rating to support heavy-load electronic equipment
Carefully controlled leakage current for safety certification of end machines
High insulation resistance to avoid short-circuit risks in compact enclosures
Integrated metal shielding reduces noise coupling inside the equipment cabinet
Broad temperature tolerance for different working environments
Chassis mount design with screw terminals, fast assembly and wiring

Applications

OEM industrial control machines and automation controllers
Medical auxiliary electronic equipment (non-life-support)
Large LED display and signage control systems
Audio-visual multimedia and commercial display devices
Security monitoring and access control systems
Compact electronic equipment with limited internal cabinet space

Electrical Characteristics

Item	Specifications
Model	VIP4‑2B‑20 (B042Q0707)
Rated Voltage	115 / 250 VAC
Rated Current	20A RMS Max.
Operating Frequency	50 / 60 Hz
Max. Leakage Current (Line‑to‑Ground)	0.5mA Max @115VAC /60Hz 1.0mA Max @250VAC /50Hz
Hi‑pot Test	1 minute withstand (refer to datasheet)
Insulation Resistance	≥100MΩ @ 500VDC (Input / Output to Ground)

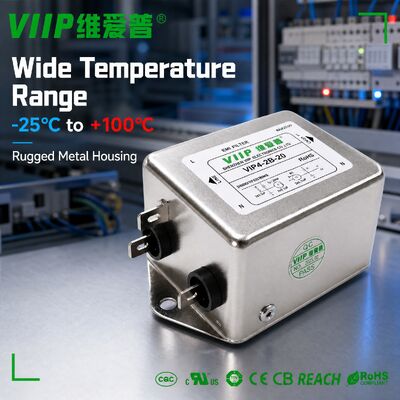

Operating Temperature Range	‑25°C ~ +100°C
Insertion Loss	Measured under 50‑Ohm test system *Data for reference only

Electrical Schematic & Product Images

Support and Services

Product Overview: High-performance single-phase EMI filter, compliant with international standards
Technical Support: Refer to the datasheet and installation manual for full specs, wiring diagrams, and safety guidelines
Installation: Must be performed by qualified personnel; ensure proper grounding and secure connections per applicable electrical codes
Maintenance: Regular inspection recommended to maintain filter efficiency and extend product lifespan
Troubleshooting: Verify wiring, check for physical damage, and confirm operating conditions (temperature/humidity) meet specifications
Custom Solutions: Tailored EMI filter options available, including product testing and certification support. Contact our technical team for application advice and problem resolution

Frequently Asked Questions

What is your MOQ for VIP4-series power filters?

For standard off-the-shelf VIP4 series models, low MOQ is acceptable. Stock items support small-batch trial orders; for bulk mass production orders, MOQ will be based on production arrangement. Contact our sales team for detailed MOQ information.

Can I get samples of VIP4-series filters for my internal EMC performance pre-test?

Yes, sample service is available. Standard VIP4 models can be supplied as samples for your lab EMC validation and performance verification. Sample freight will be borne by the buyer.

What are the rated voltage, rated current and operating frequency for VIP4-series power filters?

VIP4 series single-phase filters are rated at 115/250VAC, operating frequency 50/60Hz. Different part numbers support different rated current from 1A-10A (for example VIP4-2B-10 is 10A model). Please refer to the product approval sheet for exact parameter of each model.

Can you provide insertion-loss curves including common-mode and differential-mode performance for VIP4-series filters?

Yes. Insertion-loss data under 50Ω standard test system is included in each model's approval sheet. We can provide test curves for common-mode and differential-mode noise attenuation for your circuit simulation and EMC evaluation.

What is the hip-pot (high-potential) test standard for VIP4-series power filters?

Every finished VIP4 filter undergoes hip-pot withstand voltage test for 1 minute as per specification, together with insulation resistance test (≥100MΩ @500VDC input/output to ground). Full test specification is shown on the approval sheet.

If my product fails during EMC testing after using VIP4 filters, can you provide technical support?

Yes, our in-house EMC engineering team can offer technical support. Please share your test report, application condition and circuit information, we will analyze and give suggestions for improvement or model adjustment.

Could you help select proper VIP-series filter model for my specific application such as inverter, servo drive or control cabinet?

Sure. Please provide key information including working voltage, rated current, equipment type, main noise frequency and installation condition. Our team will help you pick the most suitable filter solution for your system.
