10A 115/250VAC EMI Power Filter VIP4‑2B‑10(B042Q0551), RFI Power Line Filter for Conducted Noise Reduction EMC Compliance

Brand Name:	Weiaipu
Model Number:	VIP4-2B-10(B042Q0551)
MOQ:	80PCS
Price:	12.74USD
Packaging Details:	Carton
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Shen Zhen

Certification:

CQC CE ROHS TUV CB REACH UL

Model:

VIP4-2B-10(B042Q0551)

Brand:

VIIP Weiaipu

Manufacturer:

Shenzhen VIIP Electronics Co.,Ltd.

Rated Voltage:

115/250 VAC

Rated Current:

10 A RMS Max

Operating Frequency:

50/60 Hz

Insulation Resistance:

≥100 MΩ @500VDC (Input / Output To Ground)

Supply Ability:

3000PCS/WEEK

Highlight:

10A EMI Power Filter

115/250VAC RFI Power Line Filter

Single Phase EMI Filter

Product Description

10A 115/250VAC EMI Power Filter VIP4‑2B‑10(B042Q0551), RFI Power Line Filter for Conducted Noise Reduction EMC Compliance

Product Overview

VIP4‑2B‑10 (B042Q0551) is a high-performance single-phase EMI power filter developed for AC mains input of electronic equipment. It cuts down conducted electromagnetic interference on AC power lines, suppressing both common-mode and differential-mode noise that may corrupt circuit operation.

This 10A-rated filter works at 115/250VAC, 50/60Hz. Its enclosed metal shield case isolates internal filter circuits, preventing noise leakage. With strict production control, it delivers steady noise attenuation in continuous operation. It conforms to RoHS and REACH standards. Installed at the power inlet of devices, it protects sensitive circuits and helps products pass EMC compliance tests smoothly.

Product Highlights

10A RMS rated current, single phase, compatible with 115/250VAC, 50/60Hz mains
Balanced LC topology, offers effective attenuation for common-mode and differential-mode conducted noise
Integrated metal shield housing, suppresses radiated noise and improves shielding performance
Optimized low leakage current, suitable for devices with strict safety requirements
Superior insulation and dielectric strength for reliable long-time continuous operation
Chassis mounting structure, easy to fix inside equipment housing
Tight batch consistency, stable electrical performance for mass production

Applications

Industrial control systems, servo drives and automation machinery
Precision measuring instruments and laboratory test equipment
Switching power supplies, power converters and charging systems
Sensitive data acquisition and signal processing equipment
Telecommunication hardware and network power supplies
Commercial printing and office automation devices
General electronic devices requiring power line noise suppression for EMC approval

Electrical Characteristics

Item	Specification
Model	VIP4‑2B‑10 (B042Q0551)
Voltage Rating	115 / 250 VAC
Current Rating (RMS Max)	10A @115VAC; 10A @250VAC
Operating Frequency	50 / 60 Hz
Leakage Current (Line‑to‑Ground)	≤0.5mA @115VAC /60Hz ≤1.0mA @250VAC /50Hz
Hi‑pot Test	1 minute withstand test (refer to specification sheet)
Insulation Resistance	≥100 MΩ @500VDC (Input / Output to Ground)
Operating Temperature Range	‑25°C ~ +100°C

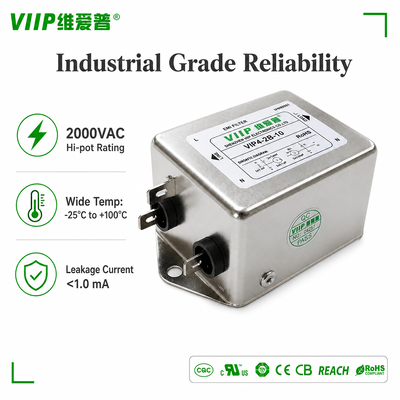

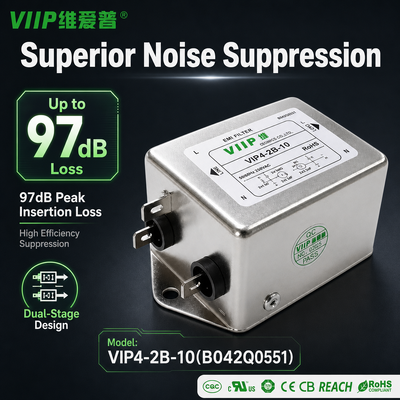

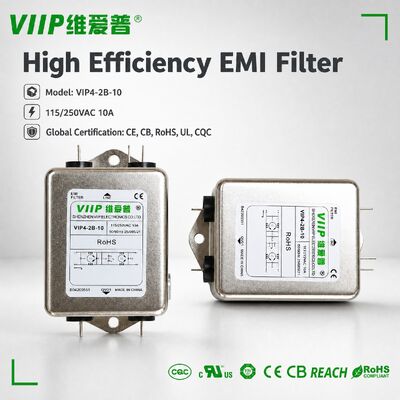

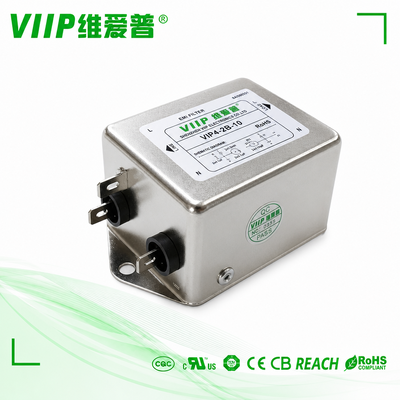

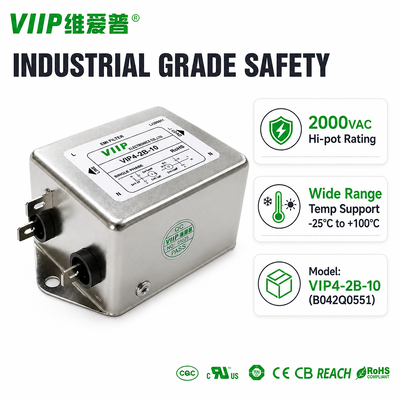

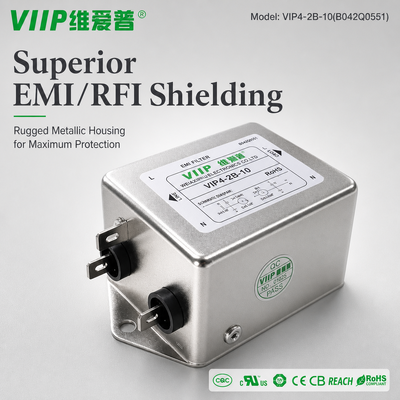

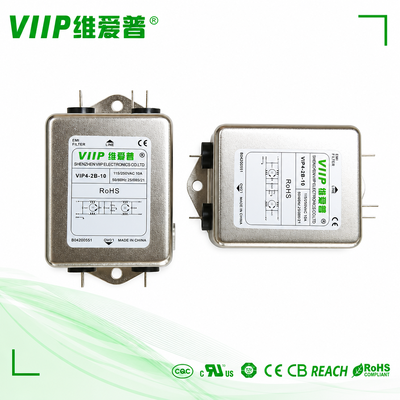

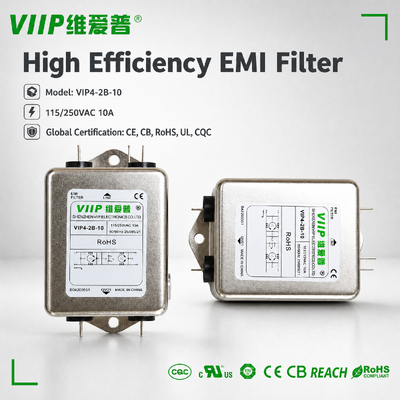

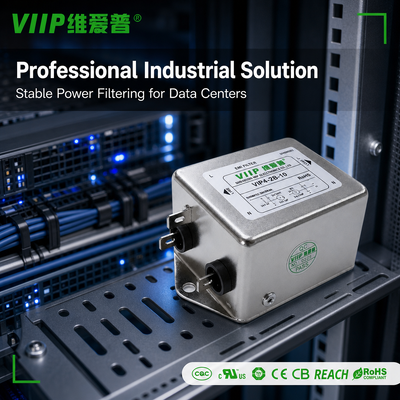

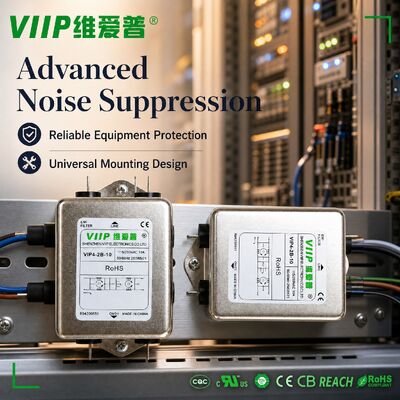

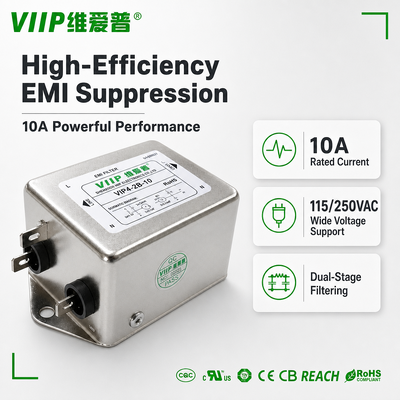

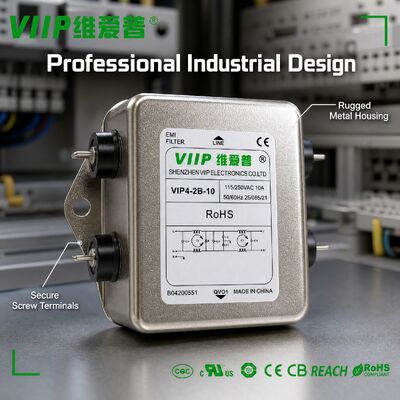

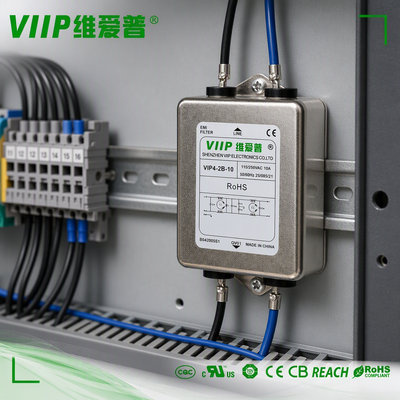

Electrical Schematic & Product Images

Support and Services

Product Overview: High-performance single-phase EMI filter, compliant with international standards
Technical Support: Refer to the datasheet and installation manual for full specs, wiring diagrams, and safety guidelines
Installation: Must be performed by qualified personnel; ensure proper grounding and secure connections per applicable electrical codes
Maintenance: Regular inspection recommended to maintain filter efficiency and extend product lifespan
Troubleshooting: Verify wiring, check for physical damage, and confirm operating conditions (temperature/humidity) meet specifications
Custom Solutions: Tailored EMI filter options available, including product testing and certification support. Contact our technical team for application advice and problem resolution

Frequently Asked Questions

What is your MOQ for VIP4-series power filters?

For standard off-the-shelf VIP4 series models, low MOQ is acceptable. Stock items support small-batch trial orders; for bulk mass production orders, MOQ will be based on production arrangement. Contact our sales team for detailed MOQ information.

Can I get samples of VIP4-series filters for my internal EMC performance pre-test?

Yes, sample service is available. Standard VIP4 models can be supplied as samples for your lab EMC validation and performance verification. Sample freight will be borne by the buyer.

What are the rated voltage, rated current and operating frequency for VIP4-series power filters?

VIP4 series single-phase filters are rated at 115/250VAC, operating frequency 50/60Hz. Different part numbers support different rated current from 1A-10A (for example VIP4-2B-10 is 10A model). Please refer to the product approval sheet for exact parameter of each model.

Can you provide insertion-loss curves including common-mode and differential-mode performance for VIP4-series filters?

Yes. Insertion-loss data under 50Ω standard test system is included in each model's approval sheet. We can provide test curves for common-mode and differential-mode noise attenuation for your circuit simulation and EMC evaluation.

What is the hip-pot (high-potential) test standard for VIP4-series power filters?

Every finished VIP4 filter undergoes hip-pot withstand voltage test for 1 minute as per specification, together with insulation resistance test (≥100MΩ @500VDC input/output to ground). Full test specification is shown on the approval sheet.

If my product fails during EMC testing after using VIP4 filters, can you provide technical support?

Yes, our in-house EMC engineering team can offer technical support. Please share your test report, application condition and circuit information, we will analyze and give suggestions for improvement or model adjustment.

Could you help select proper VIP-series filter model for my specific application such as inverter, servo drive or control cabinet?

Sure. Please provide key information including working voltage, rated current, equipment type, main noise frequency and installation condition. Our team will help you pick the most suitable filter solution for your system.
