VIIP VIP4‑2B‑10(B042Q0551) AC EMI Power Filter 10A 250VAC, Factory Supply Sample Available RoHS REACH Certified for Industrial Equipment

Brand Name:	Weiaipu
Model Number:	VIP4-2B-10(B042Q0551)
MOQ:	80PCS
Price:	12.74USD
Packaging Details:	Carton
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Shen Zhen

Certification:

CQC CE ROHS TUV CB REACH UL

Model:

VIP4-2B-10(B042Q0551)

Brand:

VIIP Weiaipu

Manufacturer:

Shenzhen VIIP Electronics Co.,Ltd.

Rated Voltage:

115/250 VAC

Rated Current:

10 A RMS Max

Operating Frequency:

50/60 Hz

Insulation Resistance:

≥100 MΩ @500VDC (Input / Output To Ground)

Supply Ability:

3000PCS/WEEK

Highlight:

AC EMI power filter 10A

single phase EMI filter 250VAC

RoHS REACH certified EMI filter

Product Description

VIIP VIP4‑2B‑10(B042Q0551) AC EMI Power Filter 10A 250VAC, Factory Supply Sample Available RoHS REACH Certified for Industrial Equipment

Product Overview

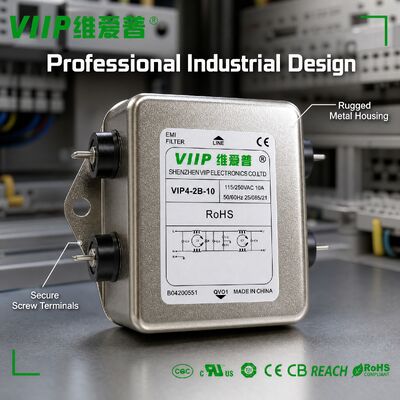

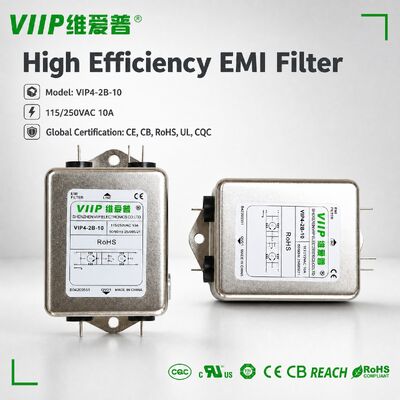

VIP4‑2B‑10 (B042Q0551) is a chassis-mounted single-phase EMI power filter designed for AC power entry of electronic devices. It effectively eliminates common-mode and differential-mode conducted interference on AC mains, isolating high-frequency noise that travels through power cables.

This 10A filter works under 115/250VAC, 50/60Hz grid power. Built with mature LC filter circuit and enclosed metal shield housing, it delivers stable insertion loss across the target frequency band. It supports long-duration continuous operation and complies with RoHS and REACH regulations. It serves as a front-end EMC protection component to prevent power line noise from disrupting sensitive circuits and helps products meet international EMC requirements.

Product Highlights

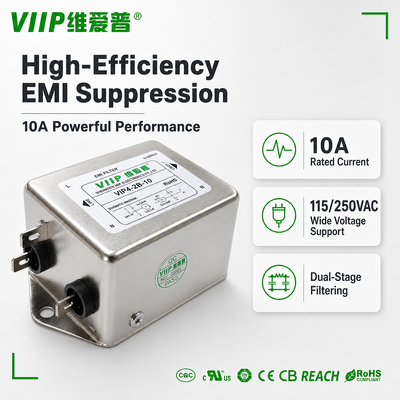

10A rated current, single-phase design for 115/250VAC, 50/60Hz AC input
Optimized LC circuit structure, excellent attenuation for both common-mode and differential-mode conducted noise

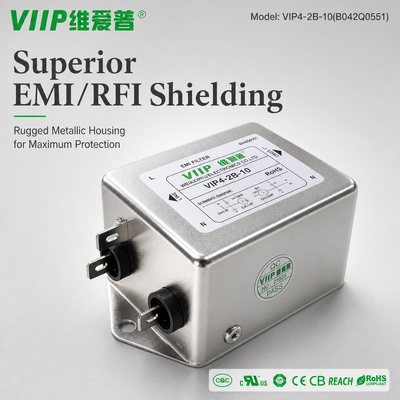

Sealed metal shield housing to reduce electromagnetic radiation leakage
Low leakage current design, safe for most commercial and industrial electronic systems
Robust insulation performance, strong resistance to voltage surge

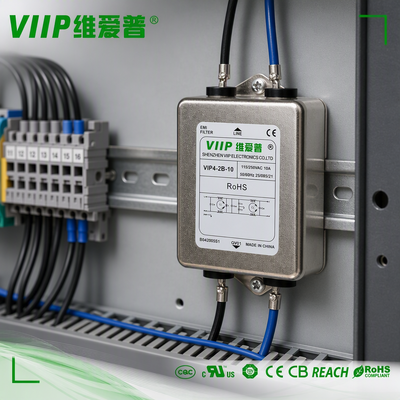

Convenient chassis mounting structure, easy to integrate inside equipment enclosures
Consistent electrical performance across production batches, suitable for mass assembly

Applications

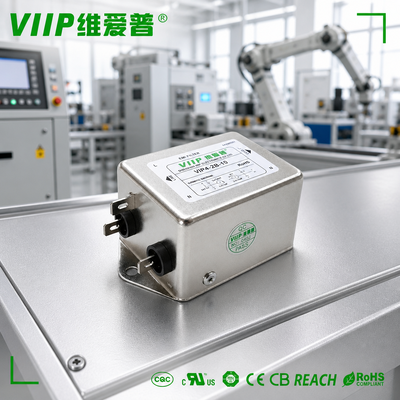

Automated production machinery and industrial control systems
Precision test, measurement and inspection instruments
Power supply units, switching converters and battery charging equipment
Sensitive signal acquisition and data processing hardware
Network, telecom and data communication power modules
Commercial office equipment and smart household appliances
Electronic equipment needing conducted noise suppression for EMC certification

Electrical Characteristics

Item	Specification
Model	VIP4‑2B‑10 (B042Q0551)
Voltage Rating	115 / 250 VAC
Current Rating (RMS Max)	10A @115VAC; 10A @250VAC
Operating Frequency	50 / 60 Hz
Leakage Current (Line‑to‑Ground)	≤0.5mA @115VAC /60Hz ≤1.0mA @250VAC /50Hz

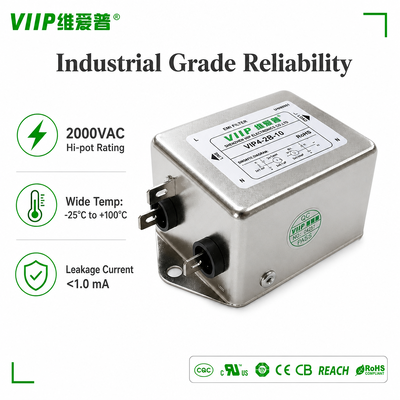

Hi‑pot Test	1 minute withstand test (refer to specification sheet)
Insulation Resistance	≥100 MΩ @500VDC (Input / Output to Ground)
Operating Temperature Range	‑25°C ~ +100°C

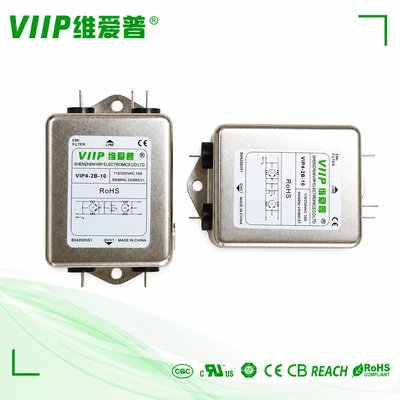

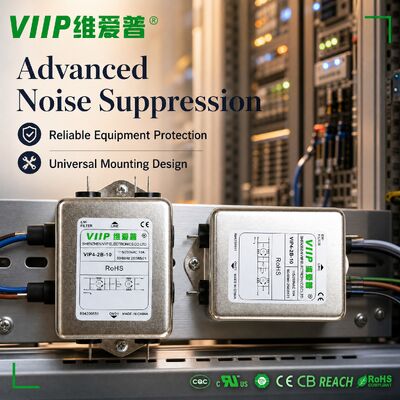

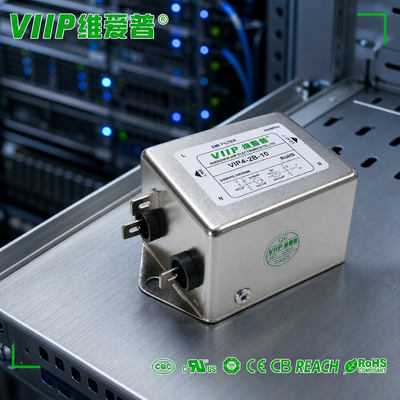

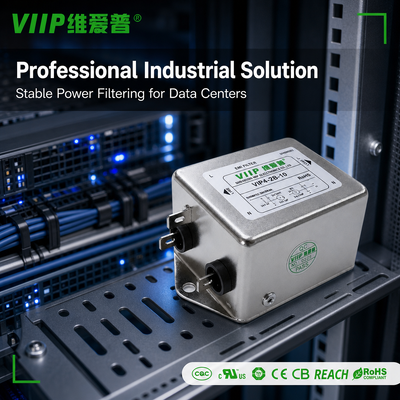

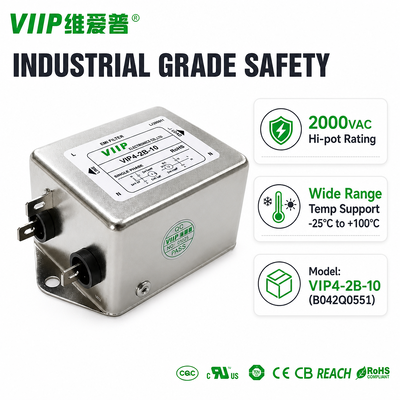

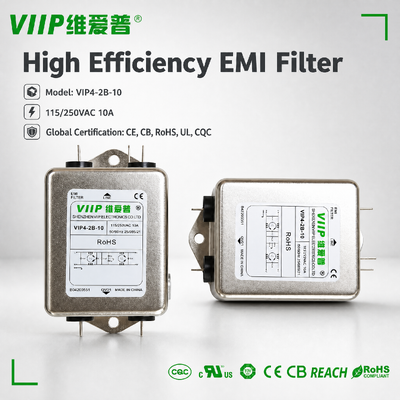

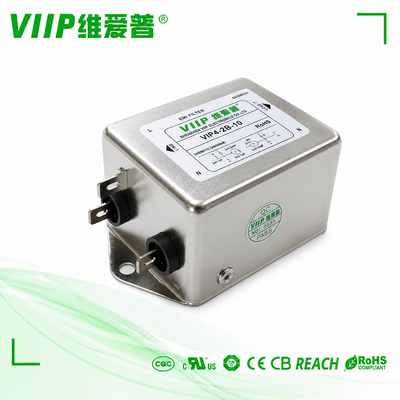

Electrical Schematic & Product Images

Support and Services

Product Overview: High-performance single-phase EMI filter, compliant with international standards
Technical Support: Refer to the datasheet and installation manual for full specs, wiring diagrams, and safety guidelines
Installation: Must be performed by qualified personnel; ensure proper grounding and secure connections per applicable electrical codes
Maintenance: Regular inspection recommended to maintain filter efficiency and extend product lifespan
Troubleshooting: Verify wiring, check for physical damage, and confirm operating conditions (temperature/humidity) meet specifications
Custom Solutions: Tailored EMI filter options available, including product testing and certification support. Contact our technical team for application advice and problem resolution

Frequently Asked Questions

What is your MOQ for VIP4-series power filters?

For standard off-the-shelf VIP4 series models, low MOQ is acceptable. Stock items support small-batch trial orders; for bulk mass production orders, MOQ will be based on production arrangement. Contact our sales team for detailed MOQ information.

Can I get samples of VIP4-series filters for my internal EMC performance pre-test?

Yes, sample service is available. Standard VIP4 models can be supplied as samples for your lab EMC validation and performance verification. Sample freight will be borne by the buyer.

What are the rated voltage, rated current and operating frequency for VIP4-series power filters?

VIP4 series single-phase filters are rated at 115/250VAC, operating frequency 50/60Hz. Different part numbers support different rated current from 1A-10A (for example VIP4-2B-10 is 10A model). Please refer to the product approval sheet for exact parameter of each model.

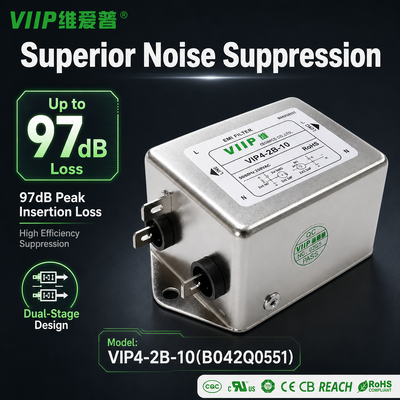

Can you provide insertion-loss curves including common-mode and differential-mode performance for VIP4-series filters?

Yes. Insertion-loss data under 50Ω standard test system is included in each model's approval sheet. We can provide test curves for common-mode and differential-mode noise attenuation for your circuit simulation and EMC evaluation.

What is the hip-pot (high-potential) test standard for VIP4-series power filters?

Every finished VIP4 filter undergoes hip-pot withstand voltage test for 1 minute as per specification, together with insulation resistance test (≥100MΩ @500VDC input/output to ground). Full test specification is shown on the approval sheet.

If my product fails during EMC testing after using VIP4 filters, can you provide technical support?

Yes, our in-house EMC engineering team can offer technical support. Please share your test report, application condition and circuit information, we will analyze and give suggestions for improvement or model adjustment.

Could you help select proper VIP-series filter model for my specific application such as inverter, servo drive or control cabinet?

Sure. Please provide key information including working voltage, rated current, equipment type, main noise frequency and installation condition. Our team will help you pick the most suitable filter solution for your system.
