VIP4‑2B‑10 EMI Power Line Filter, High Common‑Mode & Differential‑Mode Insertion Loss AC Noise Filter for EMC Anti‑Interference Solution

All Category

Flat Ferrite Core

Miss. Vicky Lee

vip6@szviip.com

19925448748

19925448748

Contact Now

VIP4‑2B‑10 EMI Power Line Filter, High Common‑Mode & Differential‑Mode Insertion Loss AC Noise Filter for EMC Anti‑Interference Solution

Brand Name:	Weiaipu
Model Number:	VIP4-2B-10(B042Q0551)
MOQ:	80PCS
Price:	12.74USD
Packaging Details:	Carton
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Shen Zhen

Certification:

CQC CE ROHS TUV CB REACH UL

Model:

VIP4-2B-10(B042Q0551)

Brand:

VIIP Weiaipu

Manufacturer:

Shenzhen VIIP Electronics Co.,Ltd.

Rated Voltage:

115/250 VAC

Rated Current:

10 A RMS Max

Operating Frequency:

50/60 Hz

Insulation Resistance:

≥100 MΩ @500VDC (Input / Output To Ground)

Supply Ability:

3000PCS/WEEK

Highlight:

EMI power line filter

AC noise filter EMC

single phase EMI filter

Product Description

VIP4‑2B‑10(B042Q0551) Single‑Phase EMI Power Filter,10A 115/250VAC 50/60Hz Power Line Noise Suppression Filter

Product Overview

VIP4‑2B‑10 (B042Q0551) is a single-phase AC EMI power filter from VIIP, engineered to suppress conducted electromagnetic interference on AC power lines. It targets both common-mode and differential-mode noise, blocking high-frequency disturbances from the mains supply and noise generated by internal switching circuits inside electronic equipment.

With a rated current of 10A and rated voltage 115/250VAC, this filter adopts a fully shielded metal housing. It provides reliable electrical safety and consistent noise attenuation performance. The unit meets RoHS and REACH environmental standards. It helps hardware designers pass EMC certification tests and protects sensitive circuits from power-line interference for stable long-term operation.

Product Highlights

Rated 10A single-phase AC filter, compatible with 115/250VAC, 50/60Hz power grid
Great suppression of common-mode and differential-mode conducted noise, improves EMC performance
Fully shielded metal casing minimizes electromagnetic leakage and enhances shielding effectiveness
Controlled low leakage current design, suitable for many sensitive electronic systems
High insulation strength and stable electrical performance under continuous operation

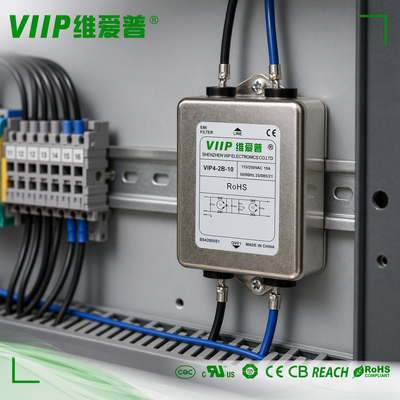

Chassis mounting design for simple and secure installation inside equipment cabinets
Wide operating temperature range, adaptable to normal industrial and commercial environments

Applications

Industrial control cabinets, PLC and automated production machinery
Test instruments, measurement equipment and laboratory analysis devices
Switching power supplies, power converters and charging equipment
Audio, video and sensitive signal processing electronics
Communication equipment and network power supply systems
Household appliances and commercial office automation devices
Electronic devices requiring EMC pre-compliance and noise troubleshooting

Electrical Characteristics

Item	Specification
Model	VIP4‑2B‑10 (B042Q0551)
Voltage Rating	115 / 250 VAC
Current Rating (RMS Max)	10A @115VAC; 10A @250VAC
Operating Frequency	50 / 60 Hz
Leakage Current (Line‑to‑Ground)	≤0.5mA @115VAC /60Hz ≤1.0mA @250VAC /50Hz
Hi‑pot Test	1 minute withstand test (refer to specification sheet)
Insulation Resistance	≥100 MΩ @500VDC (Input / Output to Ground)
Operating Temperature Range	‑25°C ~ +100°C

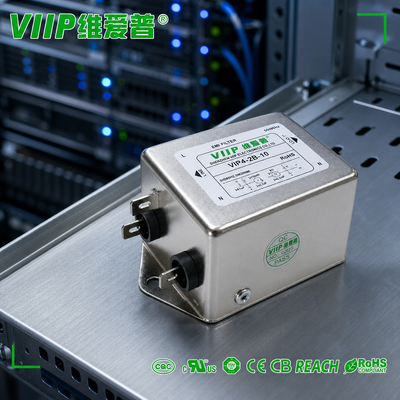

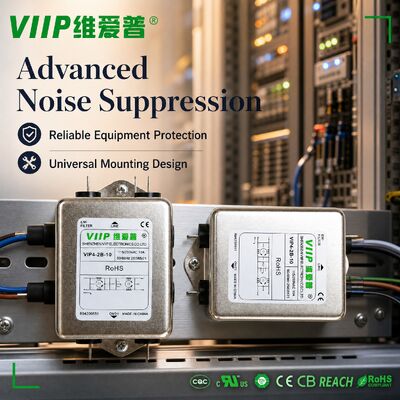

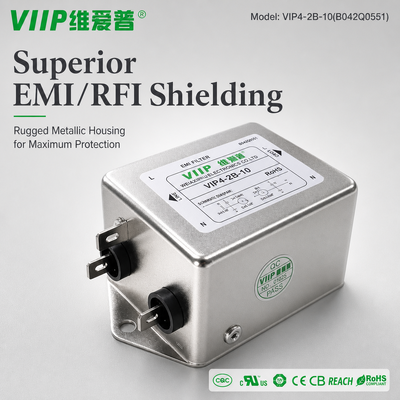

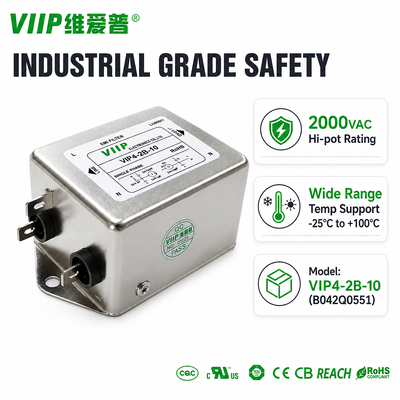

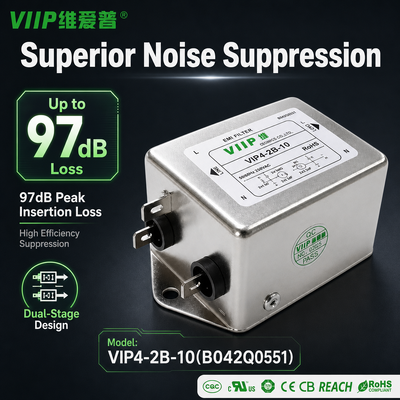

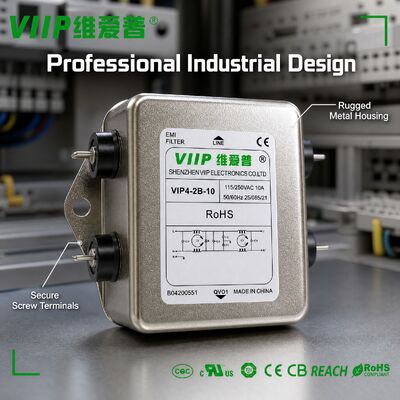

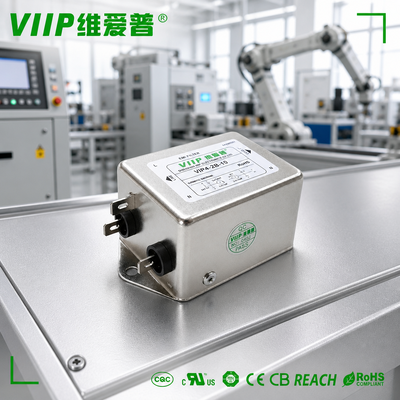

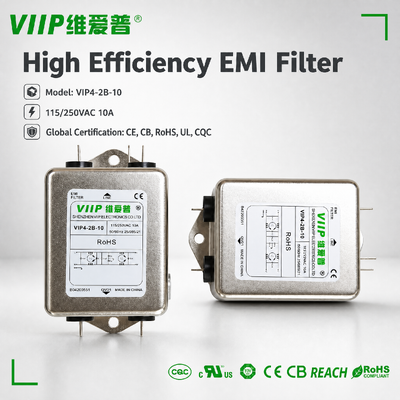

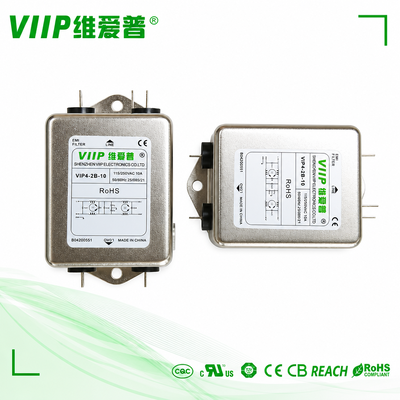

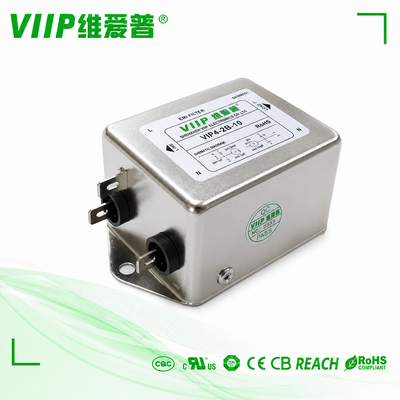

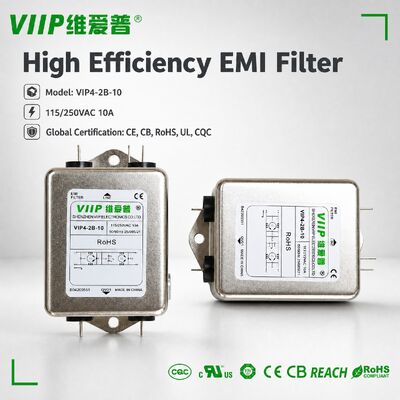

Electrical Schematic & Product Images

Support and Services

Product Overview: High-performance single-phase EMI filter, compliant with international standards
Technical Support: Refer to the datasheet and installation manual for full specs, wiring diagrams, and safety guidelines
Installation: Must be performed by qualified personnel; ensure proper grounding and secure connections per applicable electrical codes
Maintenance: Regular inspection recommended to maintain filter efficiency and extend product lifespan
Troubleshooting: Verify wiring, check for physical damage, and confirm operating conditions (temperature/humidity) meet specifications
Custom Solutions: Tailored EMI filter options available, including product testing and certification support. Contact our technical team for application advice and problem resolution

Frequently Asked Questions

What is your MOQ for VIP4-series power filters?

For standard off-the-shelf VIP4 series models, low MOQ is acceptable. Stock items support small-batch trial orders; for bulk mass production orders, MOQ will be based on production arrangement. Contact our sales team for detailed MOQ information.

Can I get samples of VIP4-series filters for my internal EMC performance pre-test?

Yes, sample service is available. Standard VIP4 models can be supplied as samples for your lab EMC validation and performance verification. Sample freight will be borne by the buyer.

What are the rated voltage, rated current and operating frequency for VIP4-series power filters?

VIP4 series single-phase filters are rated at 115/250VAC, operating frequency 50/60Hz. Different part numbers support different rated current from 1A-10A (for example VIP4-2B-10 is 10A model). Please refer to the product approval sheet for exact parameter of each model.

Can you provide insertion-loss curves including common-mode and differential-mode performance for VIP4-series filters?

Yes. Insertion-loss data under 50Ω standard test system is included in each model's approval sheet. We can provide test curves for common-mode and differential-mode noise attenuation for your circuit simulation and EMC evaluation.

What is the hip-pot (high-potential) test standard for VIP4-series power filters?

Every finished VIP4 filter undergoes hip-pot withstand voltage test for 1 minute as per specification, together with insulation resistance test (≥100MΩ @500VDC input/output to ground). Full test specification is shown on the approval sheet.

If my product fails during EMC testing after using VIP4 filters, can you provide technical support?

Yes, our in-house EMC engineering team can offer technical support. Please share your test report, application condition and circuit information, we will analyze and give suggestions for improvement or model adjustment.

Could you help select proper VIP-series filter model for my specific application such as inverter, servo drive or control cabinet?

Sure. Please provide key information including working voltage, rated current, equipment type, main noise frequency and installation condition. Our team will help you pick the most suitable filter solution for your system.
