V18039 VN15 Material Split Ferrite Ring Effective Electromagnetic Noise Reducer For Electronic Cable Assembly

Brand Name: VIIP WeiAiPu
Model Number: V18039
MOQ: 75
Price: 5.8USD
Packaging Details: Carton
Payment Terms: T/T
Detail Information
Product Description
Detail Information

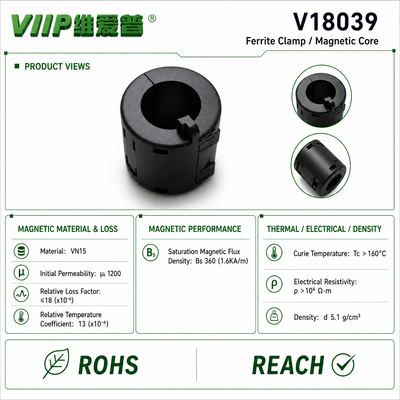

Certification:
Rohs Reach
Initial Permeability:
1200
Relative Temperature Coefficient:
13
Mate-rial:
VN15
Curie Tempera-ture:
>160
Density:
5.1
Relative Loss Factor:
<18
Highlight:

VN15 split ferrite ring

,

EMI ferrite core cable assembly

,

electromagnetic noise reducer ferrite

Product Description
Product Introduction

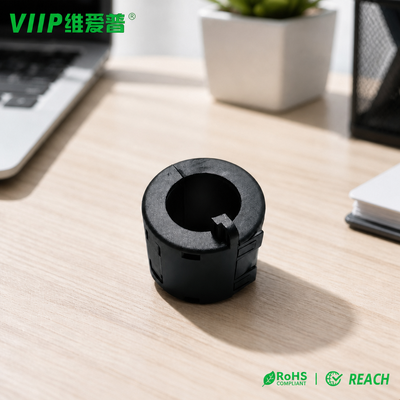

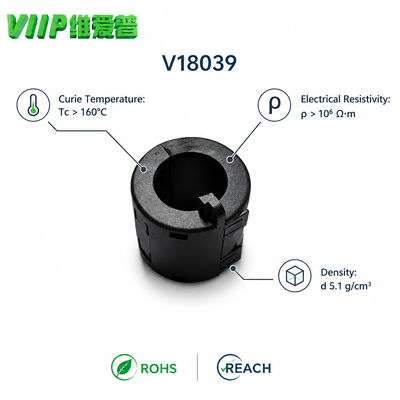

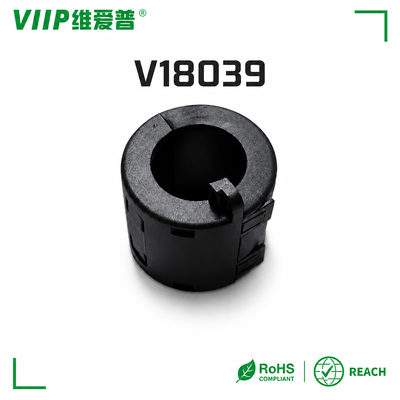

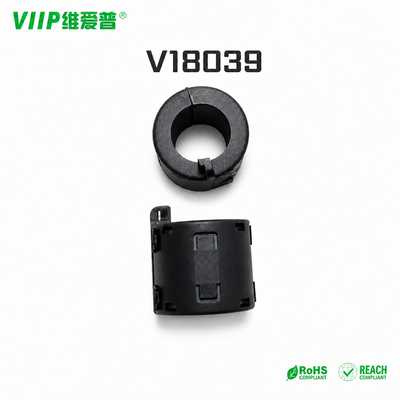

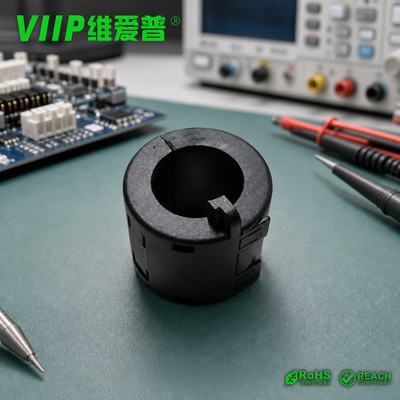

VIIP V18039 is a split type ferrite core manufactured from VN15 ferrite material with initial permeability reaching 1200. Acting as a high permeability EMI noise absorber, it is designed to eliminate electromagnetic interference on different cable types. This component delivers minimum impedance of 125 Ohm at 25 MHz and 250 Ohm at 100 MHz. It maintains steady magnetic performance, with Curie temperature above 160 degree Celsius and electrical resistivity greater than 106 Ohm meter. All dimensions are controlled within plus or minus 1.0 mm tolerance. This magnetic ring implements strict visual inspection standards for breakage defects. It fully complies with RoHS and REACH requirements, supporting customers to conduct EMC optimization and pass official certification assessments smoothly.
V18039 VN15 Material Split Ferrite Ring Effective Electromagnetic Noise Reducer For Electronic Cable Assembly

Application Range

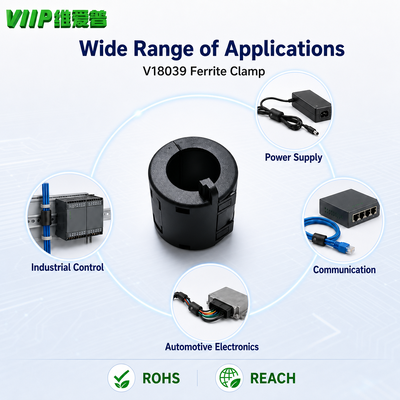

This split ferrite core is commonly applied to power supplies, battery chargers, battery systems, industrial control units, communication hardware and a wide range of electronic cable assemblies. It can be mounted on power cables and signal wires of energy equipment, consumer electronics and industrial installations. It is well suited for projects that require high frequency noise suppression, electromagnetic radiation reduction and EMC performance upgrade prior to official certification testing.

Purpose

V18039 magnetic ring is made to absorb high frequency EMI noise present on cables. It restrains both conducted and radiated electromagnetic interference, lowers cable noise levels and helps electronic hardware satisfy EMC standards. Thanks to its split design, users can quickly attach it to finished wiring harnesses without cutting or disconnecting cables. It solves electromagnetic noise issues for electronic products and improves the pass rate of CE FCC UL certification.

V18039 VN15 Material Split Ferrite Ring Effective Electromagnetic Noise Reducer For Electronic Cable Assembly

FAQ
FAQ1

Q: Can split ferrite cores be reused after removal from cables? A: Yes, split ferrite cores can be reused if there is no crack or mechanical damage. Take care during disassembly to avoid hitting or squeezing the core, as cracks will degrade its EMI noise reduction performance.

FAQ2

Q: Is there any limit for the cable outer diameter when selecting this split ferrite core? A: Yes. The cable outer diameter must be smaller than the inner size of the ferrite core. Too large cables cannot be clamped inside, while excessive loose space will weaken the final noise suppression effect.

FAQ3

Q: Will humidity affect the working performance of ferrite magnetic rings? A: Normal ambient humidity will not influence magnetic properties. Long term high humidity environment may cause surface oxidation. It is suggested to keep ferrite cores in dry conditions for stable long term operation.

FAQ4

Q: What kind of interference can ferrite magnetic rings suppress? A: Ferrite magnetic rings mainly target high frequency electromagnetic interference. They are effective for restraining high frequency conducted noise and radiated noise on cables, while they have limited effect for low frequency interference.

FAQ5

Q: How long is the service life of ferrite magnetic rings under normal use? A: Ferrite magnetic rings have a long service life under normal working conditions. Their magnetic properties will not degrade with time as long as they stay within proper temperature range and avoid mechanical cracking.

Tags:
