Single Phase EMI Filter

VIP4‑2B‑10(B042Q0551) Single‑Phase EMI Power Filter,10A 115/250VAC 50/60Hz Power Line Noise Suppression Filter

All Category

Flat Ferrite Core

Miss. Vicky Lee

vip6@szviip.com

19925448748

19925448748

Contact Now

VIP4‑2B‑10(B042Q0551) Single‑Phase EMI Power Filter,10A 115/250VAC 50/60Hz Power Line Noise Suppression Filter

Brand Name:	Weiaipu
Model Number:	VIP4-2B-10(B042Q0551)
MOQ:	80PCS
Price:	12.74USD
Packaging Details:	Carton
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Shen Zhen

Certification:

CQC CE ROHS TUV CB REACH UL

Model:

VIP4-2B-10(B042Q0551)

Brand:

VIIP Weiaipu

Manufacturer:

Shenzhen VIIP Electronics Co.,Ltd.

Rated Voltage:

115/250 VAC

Rated Current:

10 A RMS Max

Operating Frequency:

50/60 Hz

Insulation Resistance:

≥100 MΩ @500VDC (Input / Output To Ground)

Supply Ability:

3000PCS/WEEK

Highlight:

Single-Phase EMI Power Filter 10A

115/250VAC Power Line Noise Filter

50/60Hz EMI Suppression Filter

Product Description

VIP4‑2B‑10(B042Q0551) Single‑Phase EMI Power Filter,10A 115/250VAC 50/60Hz Power Line Noise Suppression Filter

Product Overview

VIP4‑2B‑10 is a chassis‑mount single‑phase AC EMI power filter developed by VIIP, designed to suppress conducted common‑mode and differential‑mode electromagnetic interference on AC power lines. Rated for 10A RMS current at 115/250VAC with 50/60Hz operating frequency, this filter delivers outstanding insertion loss performance under 50‑ohm test system, effectively attenuates high‑frequency noise coming from mains power or generated by internal equipment circuits.

Constructed with metal shielding housing, it features low leakage current, high insulation resistance and wide operating temperature range. Comply with RoHS and REACH environmental requirements, it is widely deployed to help end‑devices pass EMC compliance tests and guarantee stable operation of electronic systems.

Product Highlights

Rated 10A RMS, 115/250VAC @50/60Hz for single‑phase AC power supply applications
Excellent common‑mode & differential‑mode insertion loss, effective attenuation for conducted EMI noise
Low leakage current design: max 0.5mA @115VAC/60Hz; max 1.0mA @250VAC/50Hz
High insulation resistance ≥100MΩ at 500VDC between input/output and ground
Wide operating temperature: ‑25°C ~ +100°C, adapts to harsh industrial working environment
Metal shielded enclosure for better noise shielding performance, chassis mounting design for easy installation
RoHS & REACH compliant, qualified for global export electronic projects
Stable batch‑to‑batch performance, ideal for EMC debugging and pre‑compliance optimization

Applications

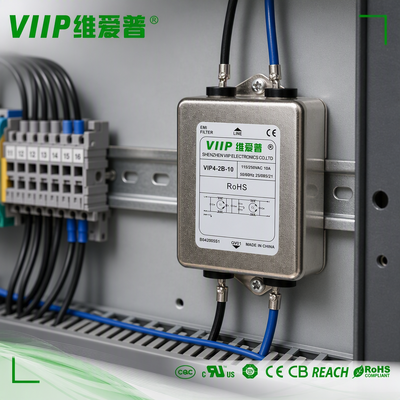

Industrial automation equipment, control cabinets and PLC systems
Testing & measuring instruments, lab electronic devices
Medical electrical equipment (suitable for non‑medical‑leakage‑critical units)
Switching power supply, power adapters and charging systems
Office automation devices and household electronic appliances
Communication equipment and signal‑sensitive electronic systems
EMC rectification & noise improvement for finished electronic products

Electrical Characteristics

Item	Specification
Model	VIP4‑2B‑10 (B042Q0551)
Voltage Rating	115 / 250 VAC
Current Rating (RMS Max)	10A @115VAC; 10A @250VAC
Operating Frequency	50 / 60 Hz
Leakage Current (Line‑to‑Ground)	≤0.5mA @115VAC /60Hz ≤1.0mA @250VAC /50Hz
Hi‑pot Test	1 minute withstand test (refer to specification sheet)
Insulation Resistance	≥100 MΩ @500VDC (Input / Output to Ground)
Operating Temperature Range	‑25°C ~ +100°C

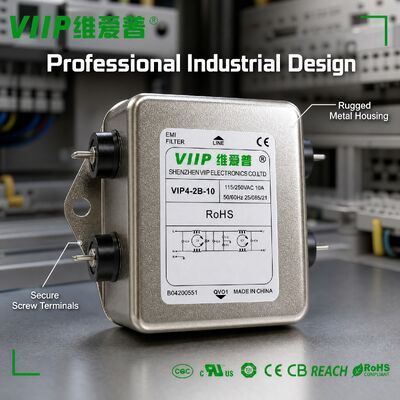

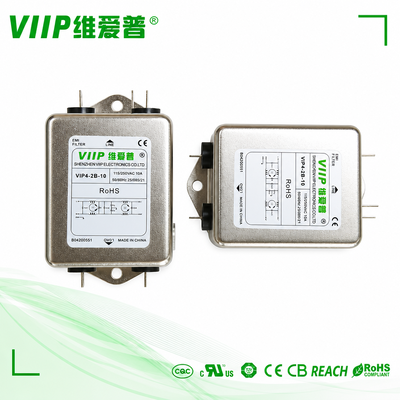

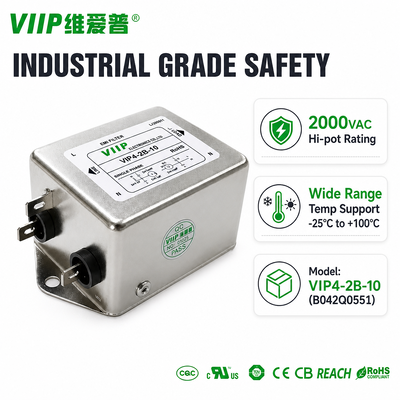

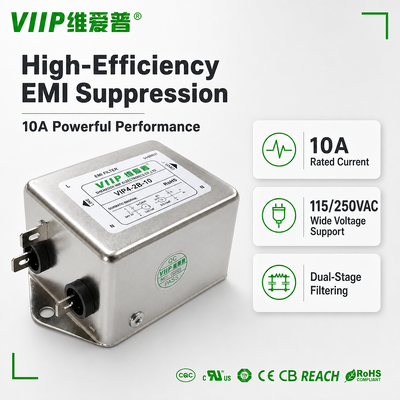

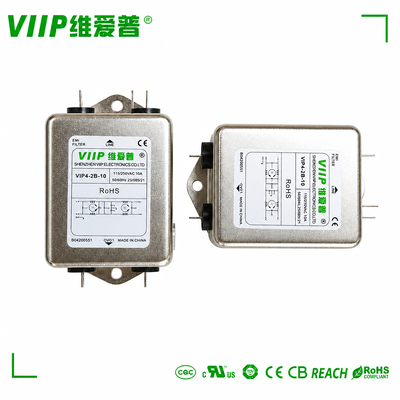

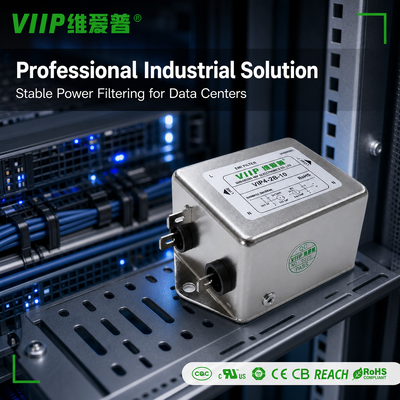

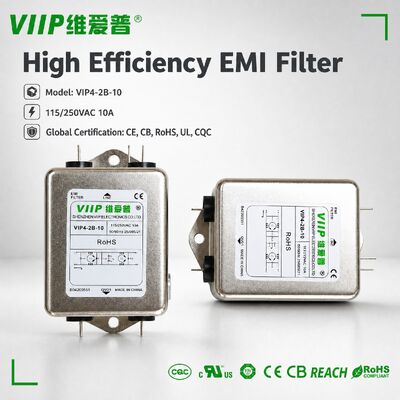

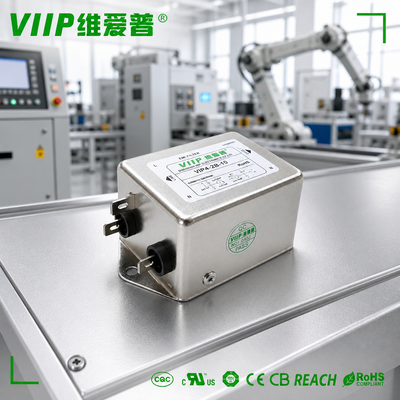

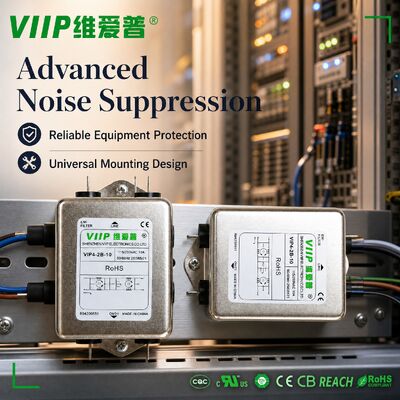

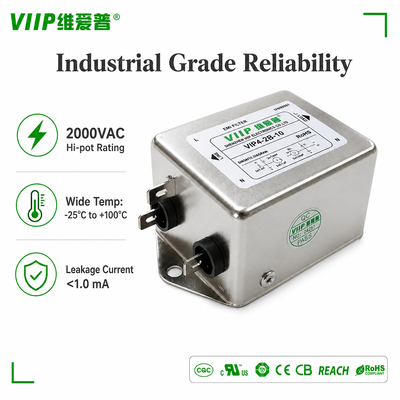

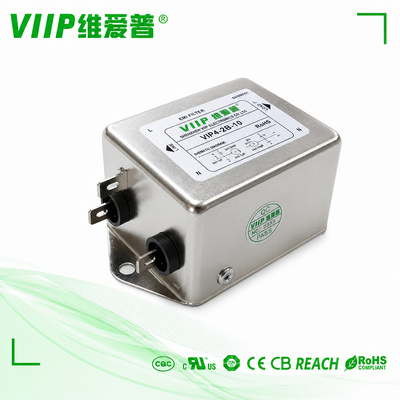

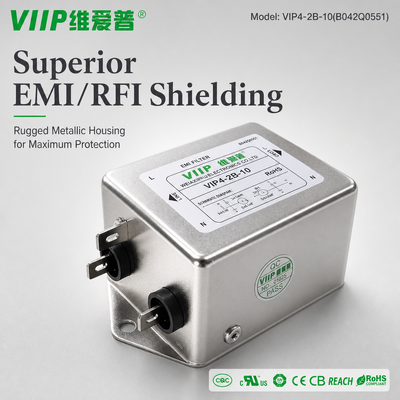

Electrical Schematic & Product Images

Support and Services

Product Overview: High-performance single-phase EMI filter, compliant with international standards
Technical Support: Refer to the datasheet and installation manual for full specs, wiring diagrams, and safety guidelines
Installation: Must be performed by qualified personnel; ensure proper grounding and secure connections per applicable electrical codes
Maintenance: Regular inspection recommended to maintain filter efficiency and extend product lifespan
Troubleshooting: Verify wiring, check for physical damage, and confirm operating conditions (temperature/humidity) meet specifications
Custom Solutions: Tailored EMI filter options available, including product testing and certification support. Contact our technical team for application advice and problem resolution

Frequently Asked Questions

What is your MOQ for VIP4-series power filters?

For standard off-the-shelf VIP4 series models, low MOQ is acceptable. Stock items support small-batch trial orders; for bulk mass production orders, MOQ will be based on production arrangement. Contact our sales team for detailed MOQ information.

Can I get samples of VIP4-series filters for my internal EMC performance pre-test?

Yes, sample service is available. Standard VIP4 models can be supplied as samples for your lab EMC validation and performance verification. Sample freight will be borne by the buyer.

What are the rated voltage, rated current and operating frequency for VIP4-series power filters?

VIP4 series single-phase filters are rated at 115/250VAC, operating frequency 50/60Hz. Different part numbers support different rated current from 1A-10A (for example VIP4-2B-10 is 10A model). Please refer to the product approval sheet for exact parameter of each model.

Can you provide insertion-loss curves including common-mode and differential-mode performance for VIP4-series filters?

Yes. Insertion-loss data under 50Ω standard test system is included in each model's approval sheet. We can provide test curves for common-mode and differential-mode noise attenuation for your circuit simulation and EMC evaluation.

What is the hip-pot (high-potential) test standard for VIP4-series power filters?

Every finished VIP4 filter undergoes hip-pot withstand voltage test for 1 minute as per specification, together with insulation resistance test (≥100MΩ @500VDC input/output to ground). Full test specification is shown on the approval sheet.

If my product fails during EMC testing after using VIP4 filters, can you provide technical support?

Yes, our in-house EMC engineering team can offer technical support. Please share your test report, application condition and circuit information, we will analyze and give suggestions for improvement or model adjustment.

Could you help select proper VIP-series filter model for my specific application such as inverter, servo drive or control cabinet?

Sure. Please provide key information including working voltage, rated current, equipment type, main noise frequency and installation condition. Our team will help you pick the most suitable filter solution for your system.
