Toroidal Ni‑Zn Ferrite Core V180215H, EMI Suppression Magnetic Ferrite Ring for Industrial Consumer Electronic EMC Solution

Brand Name:	Weiaipu
Model Number:	V180215H
MOQ:	2040PCS
Price:	0.04USD
Packaging Details:	Carton
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ROHS REACH

Model Number:

V180215H

Material:

Ni‑Zinc Ferrite

Certification:

RoHS, REACH

Function:

EMI / RFI Suppression, Noise Absorption, EMC Anti‑interference

Application:

Consumer Electronics, Industrial Control, Communication Equipment, Medical Device, Automation Sensor

Test Frequency Range:

1‑500MHz

Highlight:

Toroidal Ni-Zn Ferrite Core

EMI Suppression Ferrite Ring

EMC Ferrite Core for Electronics

Product Description

Toroidal Ni‑Zn Ferrite Core V180215H, EMI Suppression Magnetic Ferrite Ring for Industrial Consumer Electronic EMC Solution

Product Overview

V180215H is a nickel‑zinc toroidal ferrite core specially developed to tackle high‑frequency electromagnetic interference issues in electronic hardware. Built for cable‑mount EMC noise mitigation, this ferrite ring achieves strong impedance response at radio frequencies, blocking stray EMI/RFI noise that degrades signal integrity.

Tested across 1‑500 MHz frequency spectrum, it delivers dependable noise damping performance for power and signal transmission lines. Fabricated with high‑grade Ni‑Zn ferrite raw material, it features high Curie temperature and good resistivity. The component meets RoHS and REACH environmental standards, suitable for mass production of electronic products worldwide. It works to damp parasitic high‑frequency noise while preserving the normal transmission of useful signals.

http://mao.ecer.com/test/emcemifilter.com/sale-55777717-ni-zn-h-type-ferrite-core-v18007h-high-impedance-emc-emi-noise-suppression-for-pcba-wiring-harness-r.html

Highlights

Outstanding high‑frequency impedance property, suppresses radiated and conducted EMI/RFI noise efficiently
Wide working frequency coverage from 1 MHz up to 500 MHz, fits diverse high‑frequency interference scenarios
High‑resistivity Ni‑Zn ferrite material, minimizes eddy‑current loss under high‑frequency conditions
Toroidal ring form factor, simple to install by directly threading cables through the core
Stable magnetic performance, small performance deviation between production batches
RoHS & REACH certified, qualifies for export‑oriented electronic product projects
Practical auxiliary component for EMC optimization, pre‑compliance testing and product modification

Electrical Characteristics

Parameter	Item	Specifications
Minimum Impedance Z1	Model	V180215H (Ni‑Zn Ferrite Core)
Minimum Impedance Z2	Minimum Impedance Z1 of Ni‑Zn Ferrite Core	40Ω @ 25 MHz
Test Instrument	Minimum Impedance Z2 of Ni‑Zn Ferrite Core	85Ω @ 100 MHz
Test Frequency Range	Test Instrument for Ni‑Zn Ferrite Core	E4991A + 16194A Impedance Analyzer
Min. Impedance @100 MHz	Test Frequency Range for Ni‑Zn Ferrite Core	1 MHz ~ 500 MHz
	Test Winding Condition for Ni‑Zn Ferrite Core	0.5 mm wire, 0.5TS, 100 mm winding length
	Typical Inductance of Ni‑Zn Ferrite Core	53.90 μH (average sample value)

Note: All typical values of this Ni‑Zn Ferrite Core are measured under standard laboratory conditions. Actual impedance will vary with winding turns, cable diameter and installation environment.

Material & Physical Properties

Item	Parameter
Material Type	High‑frequency Ni‑Zn Ferrite Core
Initial Permeability μi	650
Saturation Flux Density	260 (1600A/m)
Dimension 1	14.2 ±0.5 mm
Dimension 2	15.0 ±0.5 mm
Appearance Standard for Ni‑Zn Ferrite Core	Controlled quantity of surface defects for bare Ni‑Zn Ferrite Core
Environmental Compliance	RoHS, REACH
Document Revision	Rev4.0
Release Date	Jun.12.2025

Applications

Noise suppression for internal wiring and external harnesses of electronic devices
Power adapters, switching power supplies and charging equipment
Sensor circuits and signal transmission lines for industrial automation devices
On‑board electronic wiring of non‑safety critical automotive electronics
Network hardware, peripheral communication interfaces and data cables
EMC rectification & performance upgrade for existing electronic equipment
Home appliances, smart wearable devices and office automation hardware

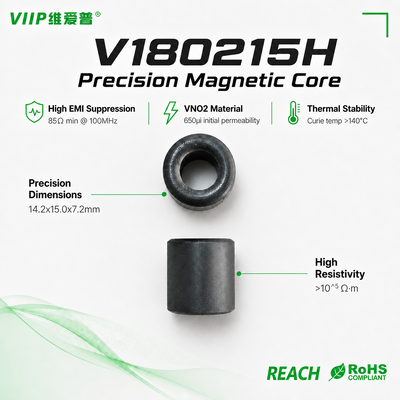

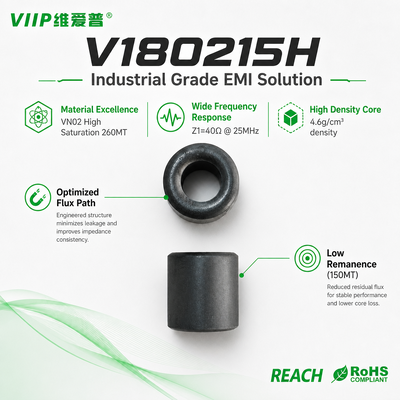

Product Images
