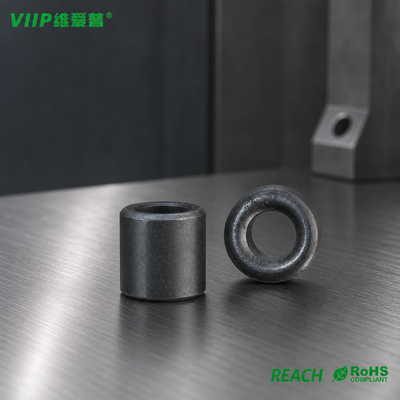

V180215H Ni‑Zn Toroidal Ferrite Core, High Impedance Ferrite Ring for High‑Frequency EMI Noise Filtering on Power & Signal Cables

Brand Name:	Weiaipu
Model Number:	V180215H
MOQ:	2040PCS
Price:	0.04USD
Packaging Details:	Carton
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ROHS REACH

Model Number:

V180215H

Material:

Ni‑Zinc Ferrite

Certification:

RoHS, REACH

Function:

EMI / RFI Suppression, Noise Absorption, EMC Anti‑interference

Application:

Consumer Electronics, Industrial Control, Communication Equipment, Medical Device, Automation Sensor

Test Frequency Range:

1‑500MHz

Highlight:

Ni-Zn Toroidal Ferrite Core

High Impedance Ferrite Ring

EMI Noise Filtering Core

Product Description

V180215H Ni‑Zn Toroidal Ferrite Core, High Impedance Ferrite Ring for High‑Frequency EMI Noise Filtering on Power & Signal Cables

Product Overview

The V180215H is a high‑performance Ni‑Zn toroidal ferrite ring engineered for high‑frequency EMI and RFI noise suppression. It provides minimum impedance of 40Ω @25 MHz and 85Ω @100 MHz, effectively attenuating high‑frequency interference coupled onto power and signal cables.

Manufactured from premium Ni‑Zn ferrite material, this magnetic core features stable high‑frequency characteristics and excellent noise‑absorbing capability. Fully compliant with RoHS and REACH requirements, it is a reliable EMC component for mitigating common‑mode and radiated noise in consumer, automotive and industrial electronic systems. When assembled on wiring harnesses, it suppresses unwanted high‑frequency interference without distorting valid working signals.

http://mao.ecer.com/test/emcemifilter.com/sale-55777717-ni-zn-h-type-ferrite-core-v18007h-high-impedance-emc-emi-noise-suppression-for-pcba-wiring-harness-r.html

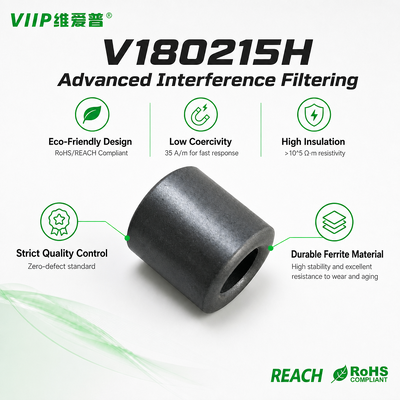

Highlights

High impedance performance: Min.40Ω@25 MHz, Min.85Ω@100 MHz for effective high‑frequency EMI & RFI suppression
Premium Ni‑Zn ferrite material, stable impedance response across 1‑500 MHz frequency range
Excellent noise attenuation for power lines and signal cables, reduces common‑mode interference
Toroidal ring structure, easy for cable threading and harness assembly
RoHS & REACH compliant, environment‑friendly for global electronic projects
Consistent batch‑to‑batch electrical performance, verified by professional impedance testing
Ideal for EMC debugging and anti‑interference improvement of electronic equipment

Electrical Characteristics

Parameter	Item	Specifications
Minimum Impedance Z1	Model	V180215H (Ni‑Zn Ferrite Core)
Minimum Impedance Z2	Minimum Impedance Z1 of Ni‑Zn Ferrite Core	40Ω @ 25 MHz
Test Instrument	Minimum Impedance Z2 of Ni‑Zn Ferrite Core	85Ω @ 100 MHz
Test Frequency Range	Test Instrument for Ni‑Zn Ferrite Core	E4991A + 16194A Impedance Analyzer
Min. Impedance @100 MHz	Test Frequency Range for Ni‑Zn Ferrite Core	1 MHz ~ 500 MHz
	Test Winding Condition for Ni‑Zn Ferrite Core	0.5 mm wire, 0.5TS, 100 mm winding length
	Typical Inductance of Ni‑Zn Ferrite Core	53.90 μH (average sample value)

Note: All typical values of this Ni‑Zn Ferrite Core are measured under standard laboratory conditions. Actual impedance will vary with winding turns, cable diameter and installation environment.

Material & Physical Properties

Item	Parameter
Material Type	High‑frequency Ni‑Zn Ferrite Core
Initial Permeability μi	650
Saturation Flux Density	260 (1600A/m)
Dimension 1	14.2 ±0.5 mm
Dimension 2	15.0 ±0.5 mm
Appearance Standard for Ni‑Zn Ferrite Core	Controlled quantity of surface defects for bare Ni‑Zn Ferrite Core
Environmental Compliance	RoHS, REACH
Document Revision	Rev4.0
Release Date	Jun.12.2025

Applications

Power cable & signal cable high‑frequency noise filtering
Consumer electronics: adapters, chargers, household electronic devicesIndustrial control equipment, PLC, sensor signal lines
Automotive electronic wiring harness anti‑interference processing
Communication equipment, data transmission interfaces
EMC design & debugging for electronic modules
Medical, office devices needing EMI noise reduction

Product Images
