V180215H Ni‑Zn Ferrite Core Toroidal Magnetic Ring for Cable EMI RFI Noise Suppression EMC Anti‑Interference Ferrite Core

All Category

Flat Ferrite Core

Miss. Vicky Lee

vip6@szviip.com

19925448748

19925448748

Contact Now

V180215H Ni‑Zn Ferrite Core Toroidal Magnetic Ring for Cable EMI RFI Noise Suppression EMC Anti‑Interference Ferrite Core

Brand Name:	Weiaipu
Model Number:	V180215H
MOQ:	2040PCS
Price:	0.04USD
Packaging Details:	Carton
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ROHS REACH

Model Number:

V180215H

Material:

Ni‑Zinc Ferrite

Certification:

RoHS, REACH

Function:

EMI / RFI Suppression, Noise Absorption, EMC Anti‑interference

Application:

Consumer Electronics, Industrial Control, Communication Equipment, Medical Device, Automation Sensor

Test Frequency Range:

1‑500MHz

Highlight:

Ni-Zn Ferrite Core Toroidal

EMI RFI Noise Suppression Ferrite

Cable Anti-Interference Ferrite Core

Product Description

V180215H Ni‑Zn Ferrite Core Toroidal Magnetic Ring for Cable EMI RFI Noise Suppression EMC Anti‑Interference Ferrite Core

Product Overview

V180215H is a ring‑shaped Ni‑Zn Ferrite Core produced by Shenzhen VIIP Electronics Co., Ltd. Its internal stock part number is 6080024069 . This Ni‑Zn Ferrite Core is purpose‑built for high‑frequency EMI and RFI noise suppression on power and signal cables.

This Ni‑Zn Ferrite Core delivers stable high impedance performance covering 1‑500 MHz frequency band. Every Ni‑Zn Ferrite Core goes through complete incoming inspection including dimension check, electrical impedance test and visual appearance evaluation. Manufactured to meet RoHS and REACH requirements, this Ni‑Zn Ferrite Core can be deployed in various global electronic end‑products.

http://mao.ecer.com/test/emcemifilter.com/sale-55777717-ni-zn-h-type-ferrite-core-v18007h-high-impedance-emc-emi-noise-suppression-for-pcba-wiring-harness-r.html

Highlights

Made of high‑quality Ni‑Zn Ferrite Core raw material with permeability μi 650, offering outstanding high‑frequency noise attenuation capacity.
Standard impedance specification: minimum 40Ω@25 MHz, minimum 85Ω@100 MHz, stable and repeatable performance for each Ni‑Zn Ferrite Core across mass‑production batches.
Well‑defined surface defect limits guarantee mechanical integrity of the Ni‑Zn Ferrite Core, reducing reject rate during customer assembly.
Impedance‑frequency characteristic is fully validated by professional E4991A+16194A impedance test system for this Ni‑Zn Ferrite Core.
Compact toroidal outline, easy to thread cables through the Ni‑Zn Ferrite Core, convenient for manual or automatic assembling.
Environment‑friendly Ni‑Zn Ferrite Core, fully RoHS & REACH compliant, suitable for export‑oriented electronic projects.

Electrical Characteristics

Parameter	Item	Specifications
Minimum Impedance Z1	Model	V180215H (Ni‑Zn Ferrite Core)
Minimum Impedance Z2	Minimum Impedance Z1 of Ni‑Zn Ferrite Core	40Ω @ 25 MHz
Test Instrument	Minimum Impedance Z2 of Ni‑Zn Ferrite Core	85Ω @ 100 MHz
Test Frequency Range	Test Instrument for Ni‑Zn Ferrite Core	E4991A + 16194A Impedance Analyzer
Min. Impedance @100 MHz	Test Frequency Range for Ni‑Zn Ferrite Core	1 MHz ~ 500 MHz
	Test Winding Condition for Ni‑Zn Ferrite Core	0.5 mm wire, 0.5TS, 100 mm winding length
	Typical Inductance of Ni‑Zn Ferrite Core	53.90 μH (average sample value)

Note: All typical values of this Ni‑Zn Ferrite Core are measured under standard laboratory conditions. Actual impedance will vary with winding turns, cable diameter and installation environment.

Material & Physical Properties

Item	Parameter
Material Type	High‑frequency Ni‑Zn Ferrite Core
Initial Permeability μi	650
Saturation Flux Density	260 (1600A/m)
Dimension 1	14.2 ±0.5 mm
Dimension 2	15.0 ±0.5 mm
Appearance Standard for Ni‑Zn Ferrite Core	Controlled quantity of surface defects for bare Ni‑Zn Ferrite Core
Environmental Compliance	RoHS, REACH
Document Revision	Rev4.0
Release Date	Jun.12.2025

Applications

This Ni‑Zn Ferrite Core V180215H is widely used to suppress conducted and radiated high‑frequency electromagnetic interference. Typical application scenarios for this Ni‑Zn Ferrite Core:
EMI noise filtering for high‑speed signal wiring harness by adopting this Ni‑Zn Ferrite Core in industrial control devices.
Power cable noise reduction for household appliances and commercial electronics with this Ni‑Zn Ferrite Core.
Eliminate common‑mode and differential‑mode high‑frequency disturbance for communication equipment using this Ni‑Zn Ferrite Core.
Improve signal integrity of internal wiring inside consumer electronics with this Ni‑Zn Ferrite Core.
EMC enhancement for internal cables of medical instruments by installing this Ni‑Zn Ferrite Core.
Noise suppression for sensor signal lines of automated machinery with this Ni‑Zn Ferrite Core.
Universal high‑frequency noise absorption solution for multiple electronic assemblies utilizing this Ni‑Zn Ferrite Core.

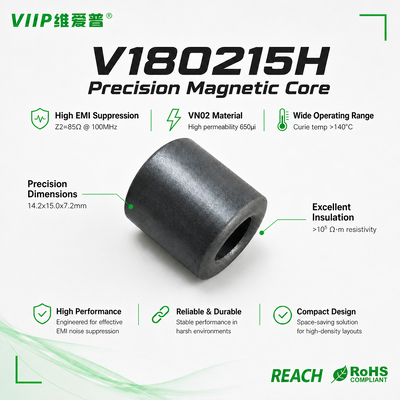

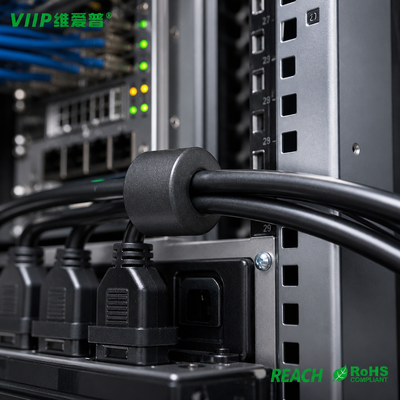

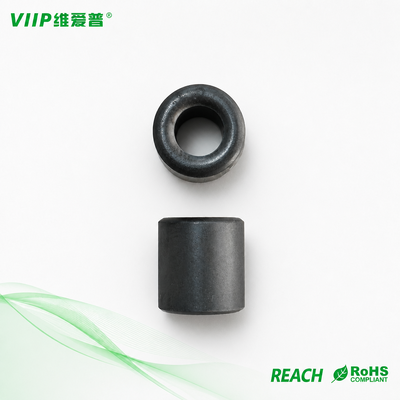

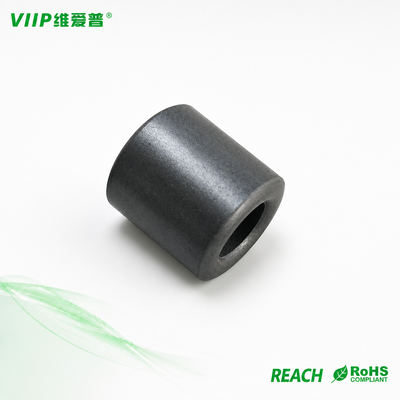

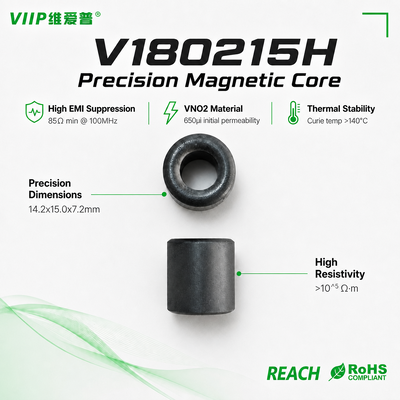

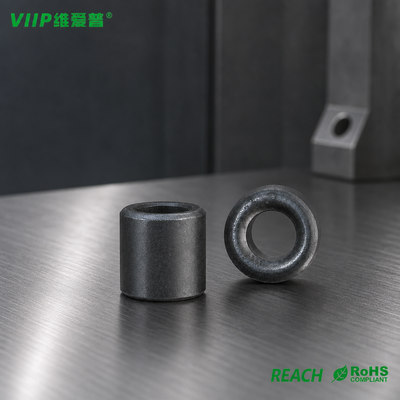

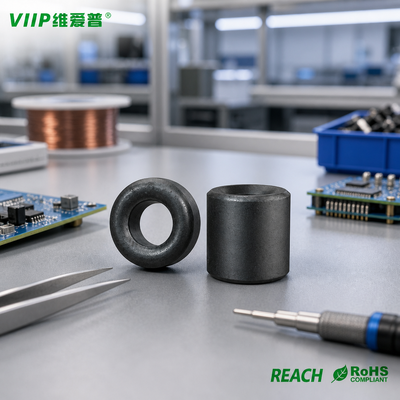

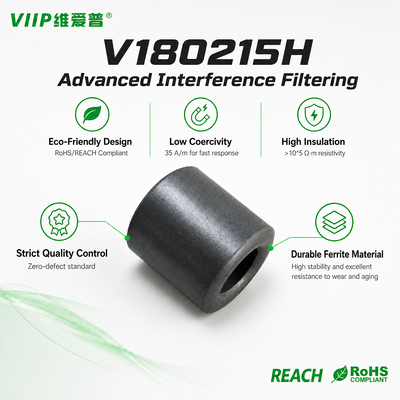

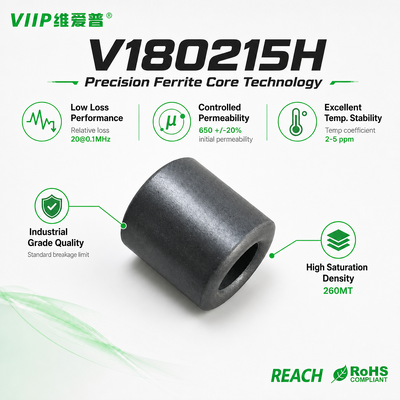

Product Images

Frequently Asked Questions

Can I get free samples for H-series ferrite cores?

Yes, we can provide free H-series ferrite core samples for your performance testing and product evaluation.

What is your regular order requirement for ferrite cores?

Normally mass orders need to comply with our minimum package quantity requirement.

Does the free-sample policy allow small-quantity orders below MOQ for regular purchases?

Free samples are only intended for performance verification. While your first trial order can be negotiated, formal repeat orders must follow our minimum package quantity rule.

What certificates do H-series ferrite cores have?

Our H-series ferrite cores meet RoHS and REACH regulatory requirements.

What is the typical production lead-time for mass-production ferrite core orders?

Typical production lead-time ranges from 2 to 5 weeks, subject to order volume and stock status. Exact lead-time will be confirmed prior to your formal order placement.

Can you customize impedance, physical dimensions or material for H-type ferrite cores?

Customization service is available based on your detailed technical specifications. A dedicated MOQ will apply for all customized ferrite core projects.

Could you provide EMC technical support when I apply your ferrite cores in my projects?

Sure. Our in-house engineering team provides basic EMC technical consultation to assist you with noise-suppression design and circuit debugging work.

What applications are H-series ferrite cores suitable for?

H-series Ni-Zn ferrite cores are widely used for EMI / EMC noise suppression on PCBA traces, wiring harnesses, power cables, consumer electronics, power supplies and communication-related equipment.

http://mao.ecer.com/test/emcemifilter.com/sale-55777717-ni-zn-h-type-ferrite-core-v18007h-high-impedance-emc-emi-noise-suppression-for-pcba-wiring-harness-r.html
