EMI Ferrite Core

V180215H Ni‑Zn Ferrite Core, Min 40Ω@25MHz 85Ω@100MHz High‑Frequency EMI Suppression Ferrite Ring RoHS REACH Compliant

All Category

Flat Ferrite Core

Miss. Vicky Lee

vip6@szviip.com

19925448748

19925448748

Contact Now

V180215H Ni‑Zn Ferrite Core, Min 40Ω@25MHz 85Ω@100MHz High‑Frequency EMI Suppression Ferrite Ring RoHS REACH Compliant

Brand Name:	Weiaipu
Model Number:	V180215H
MOQ:	2040PCS
Price:	0.04USD
Packaging Details:	Carton
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ROHS REACH

Model Number:

V180215H

Material:

Ni‑Zinc Ferrite

Certification:

RoHS, REACH

Function:

EMI / RFI Suppression, Noise Absorption, EMC Anti‑interference

Application:

Consumer Electronics, Industrial Control, Communication Equipment, Medical Device, Automation Sensor

Test Frequency Range:

1‑500MHz

Highlight:

Ni-Zn Ferrite Core EMI Suppression

High-Frequency Ferrite Ring 100MHz

RoHS REACH Compliant Ferrite Core

Product Description

V180215H Ni‑Zn Ferrite Core, Min 40Ω@25MHz 85Ω@100MHz High‑Frequency EMI Suppression Ferrite Ring RoHS REACH Compliant

Product Overview

V180215H is a high‑performance toroidal Ni‑Zn Ferrite Core manufactured by Shenzhen VIIP Electronics Co., Ltd. The internal part number of this Ni‑Zn Ferrite Core is 6080024069, specification revision Rev4.0 released on Jun.12.2025. This Ni‑Zn Ferrite Core is specially developed for high‑frequency EMI & RFI noise suppression. This Ni‑Zn Ferrite Core delivers high impedance performance across 1‑500 MHz frequency band. Every Ni‑Zn Ferrite Core undergoes strict dimensional, electrical and appearance inspection. This Ni‑Zn Ferrite Core complies with RoHS and REACH environmental standards for global electronic projects.

http://mao.ecer.com/test/emcemifilter.com/sale-55777717-ni-zn-h-type-ferrite-core-v18007h-high-impedance-emc-emi-noise-suppression-for-pcba-wiring-harness-r.html

Highlights

Premium grade Ni‑Zn Ferrite Core material, excellent high‑frequency impedance for effective EMI noise attenuation.
Stable electrical performance: Min 40Ω @25 MHz, Min 85Ω @100 MHz, consistent batch‑to‑batch performance for this Ni‑Zn Ferrite Core.
Strict appearance defect control, limited defect quantity ensures mechanical reliability of each Ni‑Zn Ferrite Core.
Complete impedance‑frequency curve verified by E4991A+16194A impedance test system for this Ni‑Zn Ferrite Core.
Compact toroidal dimension, easy for cable looping and assembly of this Ni‑Zn Ferrite Core on signal and power wires.
RoHS & REACH compliant eco‑friendly Ni‑Zn Ferrite Core, lead‑free for worldwide electronic equipment applications.

Electrical Characteristics

Parameter	Item	Specifications
Minimum Impedance Z1	Model	V180215H (Ni‑Zn Ferrite Core)
Minimum Impedance Z2	Minimum Impedance Z1 of Ni‑Zn Ferrite Core	40Ω @ 25 MHz
Test Instrument	Minimum Impedance Z2 of Ni‑Zn Ferrite Core	85Ω @ 100 MHz
Test Frequency Range	Test Instrument for Ni‑Zn Ferrite Core	E4991A + 16194A Impedance Analyzer
Min. Impedance @100 MHz	Test Frequency Range for Ni‑Zn Ferrite Core	1 MHz ~ 500 MHz
	Test Winding Condition for Ni‑Zn Ferrite Core	0.5 mm wire, 0.5TS, 100 mm winding length
	Typical Inductance of Ni‑Zn Ferrite Core	53.90 μH (average sample value)

Note: All typical values of this Ni‑Zn Ferrite Core are measured under standard laboratory conditions. Actual impedance will vary with winding turns, cable diameter and installation environment.

Material & Physical Properties

Item	Parameter
Material Type	High‑frequency Ni‑Zn Ferrite Core
Initial Permeability μi	650
Saturation Flux Density	260 (1600A/m)
Dimension 1	14.2 ±0.5 mm
Dimension 2	15.0 ±0.5 mm
Appearance Standard for Ni‑Zn Ferrite Core	Controlled quantity of surface defects for bare Ni‑Zn Ferrite Core
Environmental Compliance	RoHS, REACH
Document Revision	Rev4.0
Release Date	Jun.12.2025

Applications

This Ni‑Zn Ferrite Core V180215H is widely adopted for high‑frequency electromagnetic noise elimination. Main application scenarios for this Ni‑Zn Ferrite Core:
EMI suppression for high‑speed signal harness utilizing this Ni‑Zn Ferrite Core in industrial control equipment.

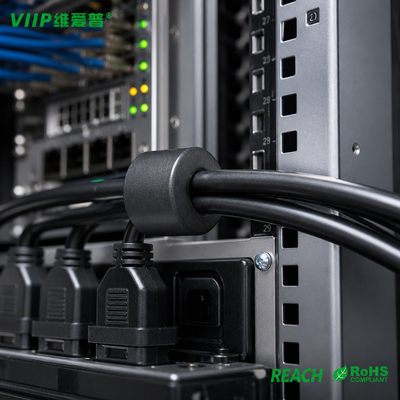

Power cable anti‑interference treatment with this Ni‑Zn Ferrite Core for household and commercial electronics.
Suppress common‑mode & differential‑mode high‑frequency noise by installing this Ni‑Zn Ferrite Core inside communication hardware.
Consumer‑electronic internal wiring harness fitted with this Ni‑Zn Ferrite Core to improve signal integrity.
EMC optimization for medical‑device internal cables using this Ni‑Zn Ferrite Core.
Sensor and automation‑equipment signal lines apply this Ni‑Zn Ferrite Core to restrain conducted and radiated interference.
General‑purpose high‑frequency noise absorption for various electronic assemblies with this Ni‑Zn Ferrite Core.

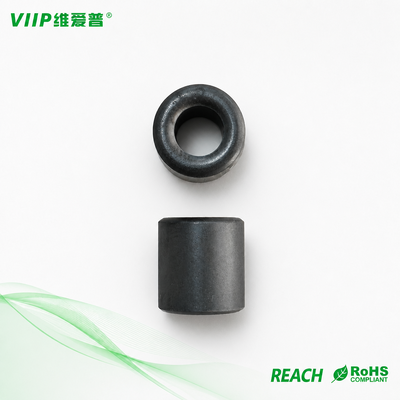

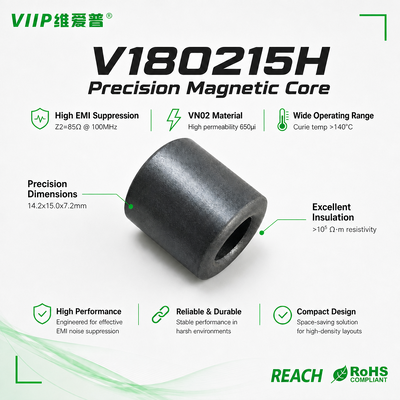

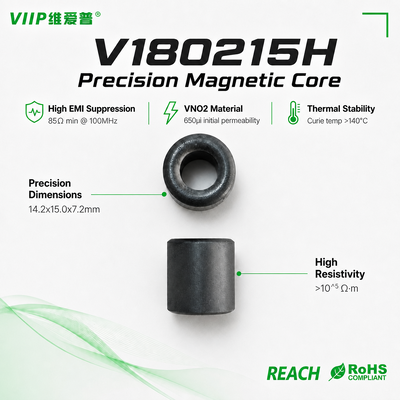

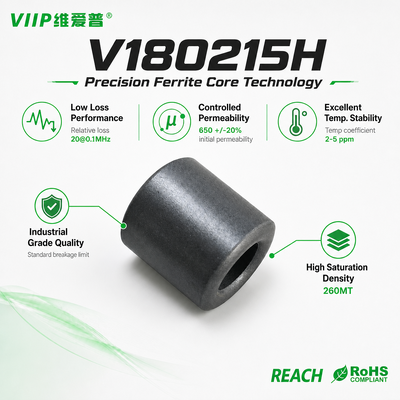

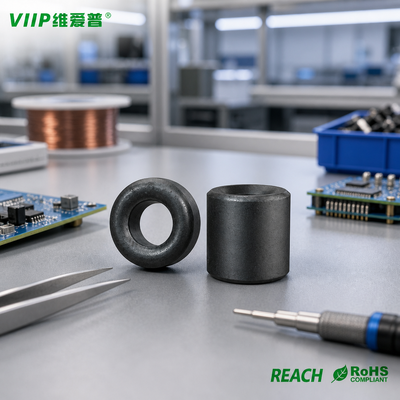

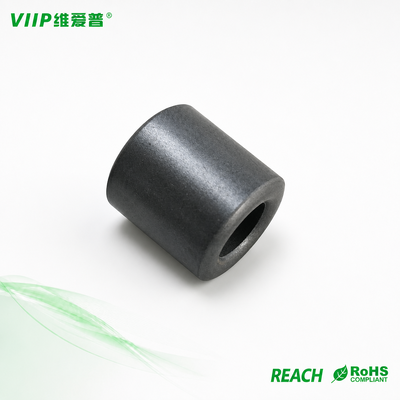

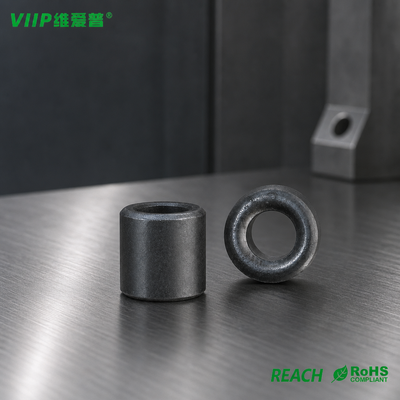

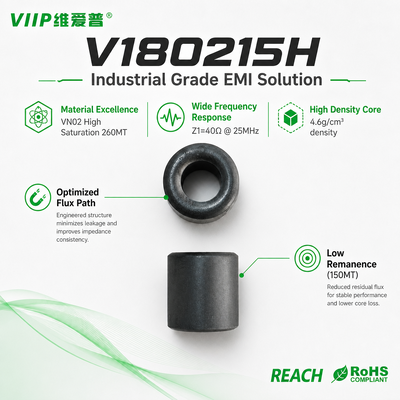

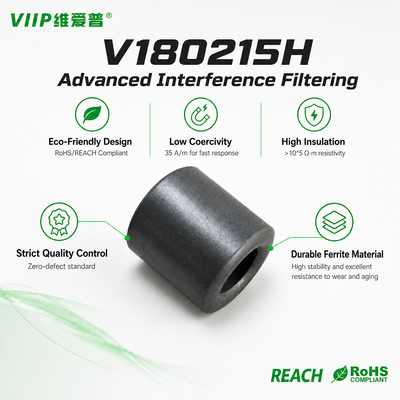

Product Images

Frequently Asked Questions

Can I get free samples for H-series ferrite cores?

Yes, we can provide free H-series ferrite core samples for your performance testing and product evaluation.

What is your regular order requirement for ferrite cores?

Normally mass orders need to comply with our minimum package quantity requirement.

Does the free-sample policy allow small-quantity orders below MOQ for regular purchases?

Free samples are only intended for performance verification. While your first trial order can be negotiated, formal repeat orders must follow our minimum package quantity rule.

What certificates do H-series ferrite cores have?

Our H-series ferrite cores meet RoHS and REACH regulatory requirements.

What is the typical production lead-time for mass-production ferrite core orders?

Typical production lead-time ranges from 2 to 5 weeks, subject to order volume and stock status. Exact lead-time will be confirmed prior to your formal order placement.

Can you customize impedance, physical dimensions or material for H-type ferrite cores?

Customization service is available based on your detailed technical specifications. A dedicated MOQ will apply for all customized ferrite core projects.

Could you provide EMC technical support when I apply your ferrite cores in my projects?

Sure. Our in-house engineering team provides basic EMC technical consultation to assist you with noise-suppression design and circuit debugging work.

What applications are H-series ferrite cores suitable for?

H-series Ni-Zn ferrite cores are widely used for EMI / EMC noise suppression on PCBA traces, wiring harnesses, power cables, consumer electronics, power supplies and communication-related equipment.

http://mao.ecer.com/test/emcemifilter.com/sale-55777717-ni-zn-h-type-ferrite-core-v18007h-high-impedance-emc-emi-noise-suppression-for-pcba-wiring-harness-r.html
