VIIP V18012 Snap On Ferrite Core NiZn EMI RFI Noise Suppression Clip-on Ferrite Core RoHS REACH Certified Cable EMI Filter

Brand Name: VIIP WeiAiPu
Model Number: V18012
MOQ: 224
Price: 0.65usd
Packaging Details: neutral
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
china
Certification:
Rohs Reach
Mate-rial:
VN09
Initial Permeability:
850
Relative Loss Factor:
16(0.1MHz)
Relative Temperature Coefficient:
5-10
Saturation Magnetic Flux Density:
350(1600A/m)
Density:
4.7
Highlight:

Snap On Ferrite Core

,

NiZn EMI RFI Noise Suppression

,

RoHS REACH Certified Cable EMI Filter

Product Description
Product Detail

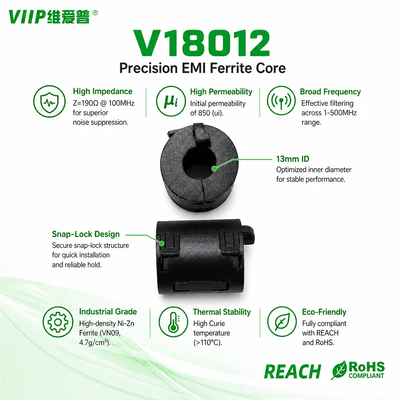

  1. V18012 snap on ferrite core adopts VN09 NiZn ferrite material with initial permeability of 850. Its impedance reaches minimum 105Ω at 25 MHz and 190Ω at 100 MHz for effective EMI RFI noise suppression.

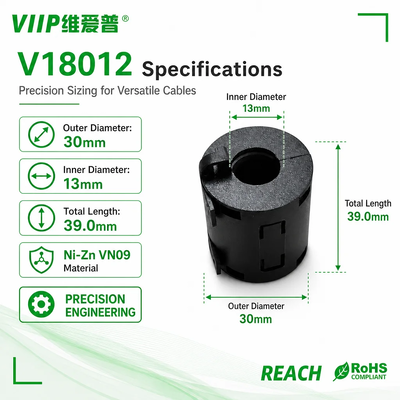

  2. Dimension parameters: A30.0mm, B13.0mm, C34.0mm, D39.0mm, with controlled dimensional tolerance. Clip-on design enables simple installation without cutting cables.

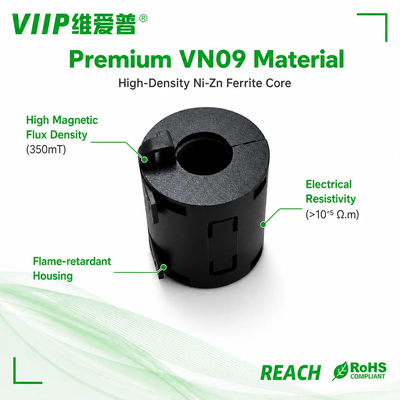

  3. This ferrite core has saturation magnetic flux density of 350MT, Curie temperature above 110℃ and electrical resistivity over 10⁵ Ω·m, delivering stable high-frequency filtering performance.
    VIIP V18012 Snap On Ferrite Core NiZn EMI RFI Noise Suppression Clip-on Ferrite Core RoHS REACH Certified Cable EMI Filter
Product Features
  1. Snap-on clip structure for quick assembly, no need to strip or cut wires, convenient for on-site wiring modification.
  2. VN09 nickel zinc ferrite material with low loss factor, excellent attenuation for high-frequency electromagnetic noise on various cables.
  3. Strict visual defect inspection standard, stable physical and magnetic performance, RoHS & REACH compliant.
Product Specifications
  1. Material: VN09 NiZn ferrite, density 4.7 g/cm³, saturation magnetic flux density 350MT.
  2. Dimensions: A30.0mm±1.0mm, B13.0mm±0.8mm, C34.0mm±1.0mm, D39.0mm±1.0mm.
  3. Electrical property: Z1≥105Ω@25MHz, Z2≥190Ω@100MHz, qualified for EMC noise suppression.
    VIIP V18012 Snap On Ferrite Core NiZn EMI RFI Noise Suppression Clip-on Ferrite Core RoHS REACH Certified Cable EMI Filter
Product Applications

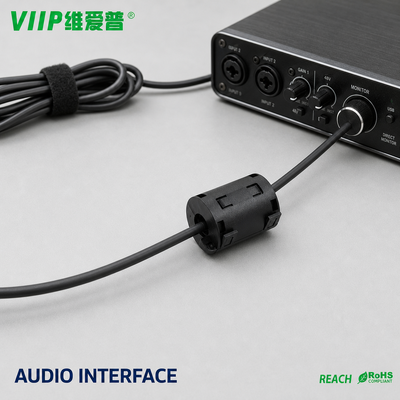

  1. EMI and RFI noise suppression for audio cables, data transmission cables and power cables.
  2. Eliminate high-frequency electromagnetic interference of electronic wiring to help finished products meet EMC requirements.

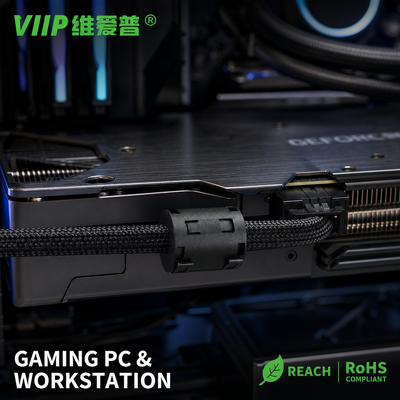

  3. Reduce electromagnetic noise for consumer electronics, industrial control, communication equipment and signal transmission lines.
FAQ
Q1: What is a snap on ferrite core used for?

A1: Snap on ferrite core is an EMI noise suppression component. It suppresses high frequency EMI/RFI interference on power, data and audio cables to help devices pass EMC tests.

Q2: How to install this clip-on ferrite core?

A2: No cable cutting required. Just open the clip, clamp the ferrite core onto the cable and lock it. Installation can be finished within seconds.

Q3: What material are VIIP snap on ferrite cores made of?

A3: Our clip ferrite cores adopt NiZn ferrite material (VN09 grade). It features high resistivity and good high frequency noise attenuation.

Q4: What factors affect the impedance performance of ferrite core?

A4: The impedance is determined by ferrite material, core size, wire diameter and working frequency. More turns of wire through the core will get higher noise suppression effect.

Q5: Are your snap on ferrite cores RoHS and REACH certified?

A5: Yes. All VIIP snap on ferrite cores comply with RoHS and REACH standards, safe for global electronic product export.
