RoHS REACH Compliant V180309H Mn‑Zn Toroidal Ferrite Core for EMC EMI Filter Application

Brand Name:	Weiaipu
Model Number:	V180309H
MOQ:	336PCS
Price:	0.42USD
Packaging Details:	Carton
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ROHS REACH

Material:

VN02 Mn‑Zn Ferrite

Application:

Power Cable, Signal Cable, Industrial Automation, Consumer Electronics, Communication Equipment

Test Frequency Range:

1‑500MHz

Certification:

RoHS, REACH

Model Number:

V180309H

Feature:

High‑frequency EMI / Common‑mode Noise Suppression

Highlight:

Mn-Zn Toroidal Ferrite Core

RoHS REACH Compliant Ferrite Core

EMI Filter Ferrite Core

Product Description

VIIP V180122H Cable EMC Ferrite Core, VN02 Ferrite Core Min Impedance 55Ω 120Ω, RoHS REACH Compliant EMI Noise Suppressor for Electronic Cable Assembly

Product Overview

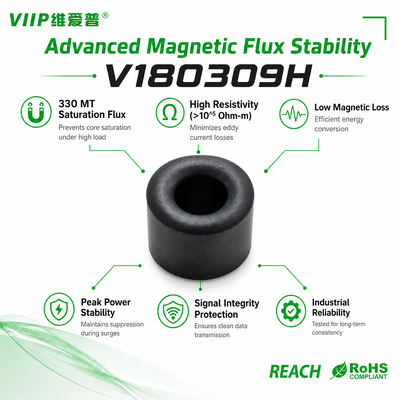

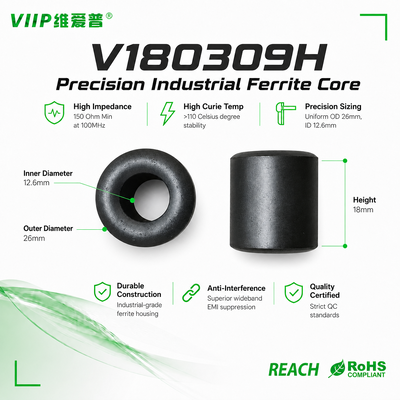

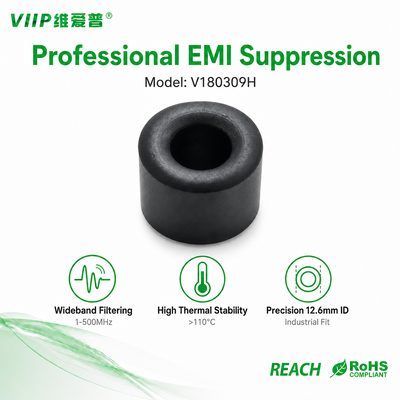

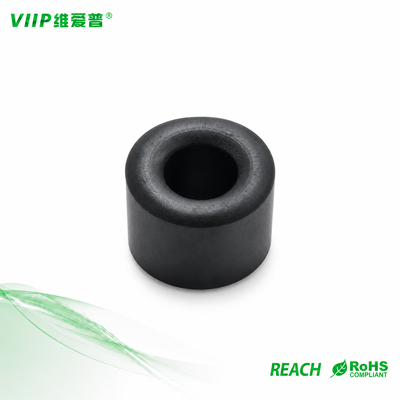

V180309H is a ring‑shaped Mn‑Zn ferrite toroid manufactured by Shenzhen VIIP Electronics Co.,Ltd. Built on VNO2 ferrite material with permeability of 650, this toroidal ferrite core is purpose‑built for broadband high‑frequency noise attenuation covering 1‑500 MHz frequency band.

Strict impedance benchmarks are specified: minimum 70 Ω at 25 MHz and minimum 150 Ω at 100 MHz. All electrical performance is characterized with Keysight E4991A+16194A test fixture, and batch‑production sample data is documented for quality traceability. With well‑defined dimension tolerances and clear mechanical defect acceptance criteria, this ferrite toroid complies with RoHS and REACH directives, making it a reliable passive magnetic component for cable‑level EMC improvement across consumer, industrial and new‑energy hardware.

Highlights

Excellent RF noise‑absorbing capability: Material formulation is tuned to generate high impedance within 25‑100 MHz interference band, dampens common‑mode RF noise propagating along cable harnesses.
Low‑leakage closed toroidal magnetic circuit: Restrains stray magnetic flux, prevents magnetic field interference to nearby sensitive circuits, avoids unexpected signal distortion.
BOM‑friendly passive component: Pure passive magnetic part, zero power consumption, helps customers cut extra EMC component investment for finished products.
Rigorous visual defect specifications: Defined breakage and chipping acceptance criteria filter out bad units, securing stable magnetic performance for long‑term running.

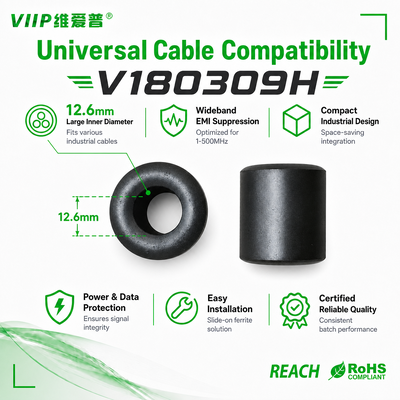

Great adaptability for harness processing: Reasonable inner aperture size supports single‑turn or multi‑turn cable threading, adapts to diverse wire diameters in mass harness production.
Project‑ready test documentation: Datasheet and batch sample test data are available for customer’s product qualification, certification and engineering review.

Electrical Characteristics

Item	Specification	Test Condition
Model	V180309H (Mn‑Zn ferrite core)	25 MHz
Test Instrument	E4991A + 16194A	100 MHz
Test Frequency Range	1 MHz ~ 500 MHz	Impedance‑frequency test
Test Winding	Ø0.5×0.5TS ×100 L(mm)	00.5×0.5TS×100L(mm) test winding
Minimum Impedance Z1	≥70 Ω @25 MHz
Minimum Impedance Z2	≥150 Ω @100 MHz
Sample Inductance Range	95.6 μH ~97.8 μH
Sample Measured Impedance	Approx.201‑202 Ω @100 MHz
Compliance	RoHS, REACH

Note: Impedance‑frequency curve is provided in datasheet for reference. Actual impedance will vary with winding turns, cable diameter and working environment.

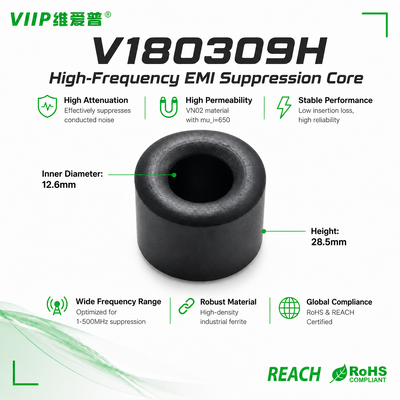

Material & Physical Properties

Item	Parameter
Ferrite Material Grade	VNO2 (Mn‑Zn ferrite)
Initial Permeability μi	650 (+20%)
Density	4.9 g/cm³
Dimension A	26.0 ±0.7 mm
Dimension B	28.5 ±0.7 mm
Dimension C	12.6 ±0.7 mm
Appearance Standard	Defined breakage & chipping limit according to core outer‑diameter size; control crack and chipping size & quantity to avoid magnetic‑performance degradation
Compliance	RoHS, REACH
Appearance Standard	Defect quantity controlled per OD specification, consistent mechanical dimension tolerance

Applications

V180309H toroidal ferrite core mitigates cable‑transmitted high‑frequency interference for diversified electronic projects:

CAN bus / RS232 industrial communication cables: Eliminate high‑frequency coupled noise on field‑bus wiring, guarantee stable data transmission in heavy‑interference factory workshops.
Smart lighting & building automation systems: Install on power and control cables of intelligent lighting modules to reduce conducted interference between different building‑automation nodes.
Automation peripheral accessory equipment: For peripheral wiring of robots and automated machinery, suppress noise generated by motor drives and servo units.
Smart meter & energy‑meter internal harnesses: Filter high‑frequency interference on power‑supply and signal lines of energy‑meters, improve measuring data stability.
Multimedia peripheral devices: Apply to audio peripherals, display peripheral cables to reduce radiated noise and prevent signal distortion.
Post‑layout EMC optimization: Used when PCB modification is not feasible; engineers add this ferrite core onto cables to pass EMC compliance tests efficiently.

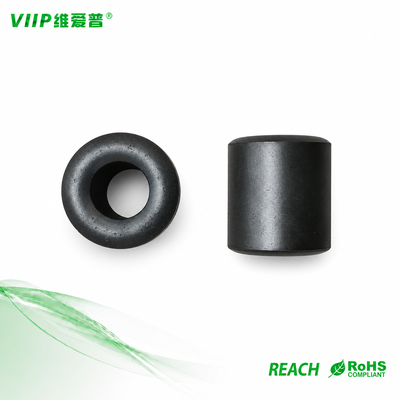

Product Images

Frequently Asked Questions

Can I get free samples for H-series ferrite cores?

Yes, we can provide free H-series ferrite core samples for your performance testing and product evaluation.

What is your regular order requirement for ferrite cores?

Normally mass orders need to comply with our minimum package quantity requirement.

Does the free-sample policy allow small-quantity orders below MOQ for regular purchases?

Free samples are only intended for performance verification. While your first trial order can be negotiated, formal repeat orders must follow our minimum package quantity rule.

What certificates do H-series ferrite cores have?

Our H-series ferrite cores meet RoHS and REACH regulatory requirements.

What is the typical production lead-time for mass-production ferrite core orders?

Typical production lead-time ranges from 2 to 5 weeks, subject to order volume and stock status. Exact lead-time will be confirmed prior to your formal order placement.

Can you customize impedance, physical dimensions or material for H-type ferrite cores?

Customization service is available based on your detailed technical specifications. A dedicated MOQ will apply for all customized ferrite core projects.

Could you provide EMC technical support when I apply your ferrite cores in my projects?

Sure. Our in-house engineering team provides basic EMC technical consultation to assist you with noise-suppression design and circuit debugging work.

What applications are H-series ferrite cores suitable for?

H-series Ni-Zn ferrite cores are widely used for EMI / EMC noise suppression on PCBA traces, wiring harnesses, power cables, consumer electronics, power supplies and communication-related equipment.
