V180309H Mn‑Zn Ferrite Toroid Core, Min 70Ω@25MHz,150Ω@100MHz

Brand Name:	Weiaipu
Model Number:	V180309H
MOQ:	336PCS
Price:	0.42USD
Packaging Details:	Carton
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ROHS REACH

Model Number:

V180309H

Material:

VN02 Mn‑Zn Ferrite

Certification:

RoHS, REACH

Feature:

High‑frequency EMI / Common‑mode Noise Suppression

Application:

Power Cable, Signal Cable, Industrial Automation, Consumer Electronics, Communication Equipment

Test Frequency Range:

1‑500MHz

Highlight:

Mn-Zn Ferrite Toroid Core

EMI Ferrite Core 70Ω@25MHz

Ferrite Core 150Ω@100MHz

Product Description

VIIP V180122H Cable EMC Ferrite Core, VN02 Ferrite Core Min Impedance 55Ω 120Ω, RoHS REACH Compliant EMI Noise Suppressor for Electronic Cable Assembly

Product Overview

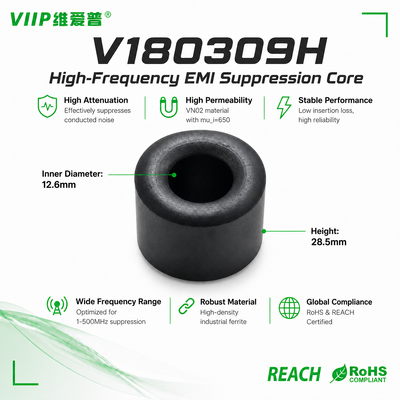

V180309H is a ring‑shaped Mn‑Zn ferrite toroid manufactured by Shenzhen VIIP Electronics Co.,Ltd. Built on VNO2 ferrite material with permeability of 650, this toroidal ferrite core is purpose‑built for broadband high‑frequency noise attenuation covering 1‑500 MHz frequency band.

Strict impedance benchmarks are specified: minimum 70 Ω at 25 MHz and minimum 150 Ω at 100 MHz. All electrical performance is characterized with Keysight E4991A+16194A test fixture, and batch‑production sample data is documented for quality traceability. With well‑defined dimension tolerances and clear mechanical defect acceptance criteria, this ferrite toroid complies with RoHS and REACH directives, making it a reliable passive magnetic component for cable‑level EMC improvement across consumer, industrial and new‑energy hardware.

Highlights

Targeted noise attenuation for RF‑band interference: Optimized material formula achieves high impedance in radio‑frequency range, effectively absorbs unwanted RF noise coupling onto wires and cables.
Closed‑loop toroidal magnetic path: Minimizes magnetic flux leakage, prevents electromagnetic crosstalk to adjacent cables and nearby electronic components inside enclosures.
Cost‑efficient EMI countermeasure: Works as a simple passive suppression solution, no power supply needed, lowers overall BOM cost for EMC improvement.
Well‑controlled mechanical quality standards: Clear rules for chipping, crack and breakage limits avoid defective cores that degrade magnetic performance during mass production.
Tool‑free cable assembly design: Open inner bore enables direct cable threading, compatible for manual or automated harness processing on production lines.
Verified batch‑test data available: Impedance, inductance and dimensional sample test records can be provided for customer engineering evaluation and project qualification.

Electrical Characteristics

Item	Specification	Test Condition
Model	V180309H (Mn‑Zn ferrite core)	25 MHz
Test Instrument	E4991A + 16194A	100 MHz
Test Frequency Range	1 MHz ~ 500 MHz	Impedance‑frequency test
Test Winding	Ø0.5×0.5TS ×100 L(mm)	00.5×0.5TS×100L(mm) test winding
Minimum Impedance Z1	≥70 Ω @25 MHz
Minimum Impedance Z2	≥150 Ω @100 MHz
Sample Inductance Range	95.6 μH ~97.8 μH
Sample Measured Impedance	Approx.201‑202 Ω @100 MHz
Compliance	RoHS, REACH

Note: Impedance‑frequency curve is provided in datasheet for reference. Actual impedance will vary with winding turns, cable diameter and working environment.

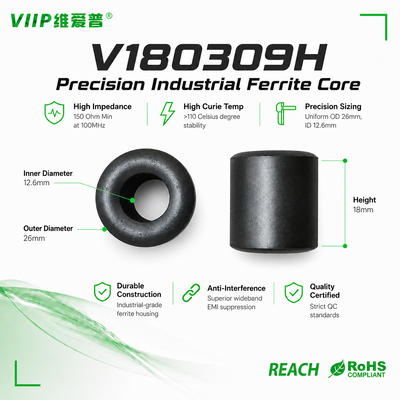

Material & Physical Properties

Item	Parameter
Ferrite Material Grade	VNO2 (Mn‑Zn ferrite)
Initial Permeability μi	650 (+20%)
Density	4.9 g/cm³
Dimension A	26.0 ±0.7 mm
Dimension B	28.5 ±0.7 mm
Dimension C	12.6 ±0.7 mm
Appearance Standard	Defined breakage & chipping limit according to core outer‑diameter size; control crack and chipping size & quantity to avoid magnetic‑performance degradation
Compliance	RoHS, REACH
Appearance Standard	Defect quantity controlled per OD specification, consistent mechanical dimension tolerance

Applications

V180309H ferrite toroid suppresses RF‑range conducted and radiated interference across multiple electronic segments:

Industrial communication field‑bus cables: Reduce coupled high‑frequency noise on RS485, CAN‑bus wiring, stabilize data communication in noisy industrial workshop environments.
Medical auxiliary device wiring harnesses: Suppress cable‑borne EMI for non‑critical medical auxiliary equipment, helping hardware satisfy EMC test requirements.
Outdoor smart device power & signal cables: For outdoor gateways, IoT sensors, street‑side smart terminals, resist environmental electromagnetic interference.
Laboratory and test‑gear internal cabling: Protect low‑voltage measurement signal lines from high‑frequency disturbance to enhance measuring accuracy.
Household smart appliance internal wiring: Applied inside smart kitchen appliances and smart controllers to restrain switching noise and improve equipment anti‑interference capability.
EMC failure troubleshooting for mass‑produced products: Quickly fix radiated emission failures during mass‑production stage without major PCB layout modification.

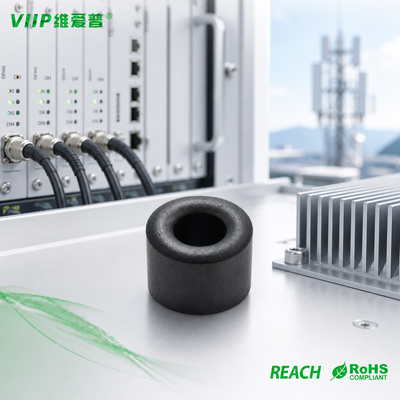

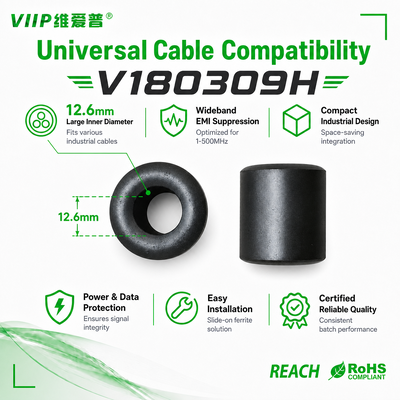

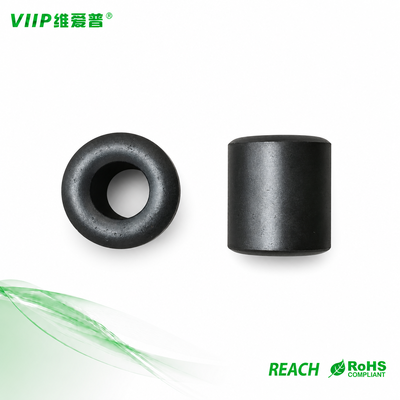

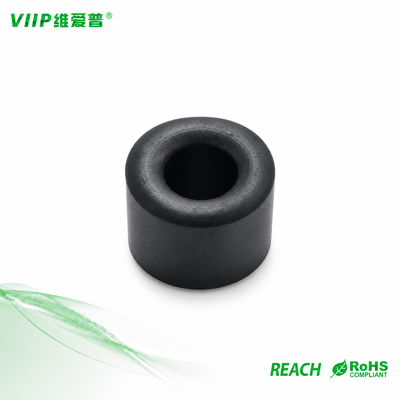

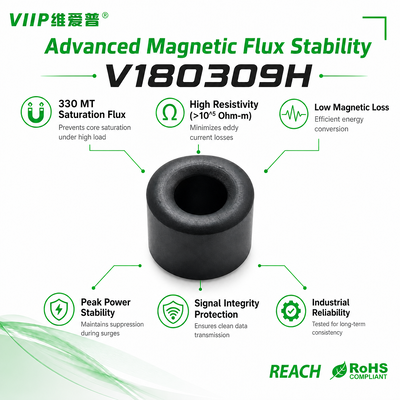

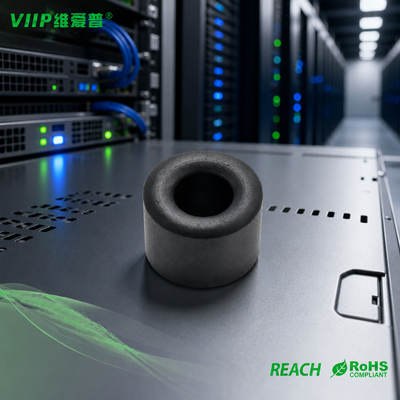

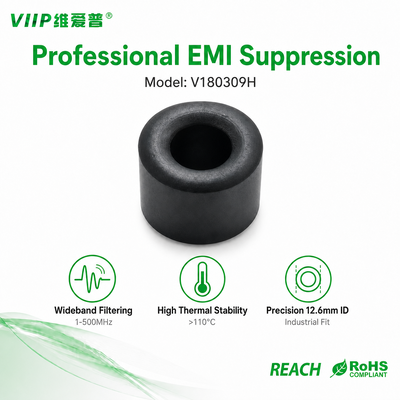

Product Images

Frequently Asked Questions

Can I get free samples for H-series ferrite cores?

Yes, we can provide free H-series ferrite core samples for your performance testing and product evaluation.

What is your regular order requirement for ferrite cores?

Normally mass orders need to comply with our minimum package quantity requirement.

Does the free-sample policy allow small-quantity orders below MOQ for regular purchases?

Free samples are only intended for performance verification. While your first trial order can be negotiated, formal repeat orders must follow our minimum package quantity rule.

What certificates do H-series ferrite cores have?

Our H-series ferrite cores meet RoHS and REACH regulatory requirements.

What is the typical production lead-time for mass-production ferrite core orders?

Typical production lead-time ranges from 2 to 5 weeks, subject to order volume and stock status. Exact lead-time will be confirmed prior to your formal order placement.

Can you customize impedance, physical dimensions or material for H-type ferrite cores?

Customization service is available based on your detailed technical specifications. A dedicated MOQ will apply for all customized ferrite core projects.

Could you provide EMC technical support when I apply your ferrite cores in my projects?

Sure. Our in-house engineering team provides basic EMC technical consultation to assist you with noise-suppression design and circuit debugging work.

What applications are H-series ferrite cores suitable for?

H-series Ni-Zn ferrite cores are widely used for EMI / EMC noise suppression on PCBA traces, wiring harnesses, power cables, consumer electronics, power supplies and communication-related equipment.
