V180122H RFI Filter Ferrite Core, VN02 Grade Ferrite Core with >140℃ Curie Temperature for Power Signal Cable EMC EMI Suppression

Brand Name:	Weiaipu
Model Number:	V180122H
MOQ:	2210PCS
Price:	0.05USD
Packaging Details:	Carton
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ROHS REACH

Model Number:

V18022H

Material:

VN02 Mn‑Zn Ferrite

Certification:

RoHS, REACH

Function:

EMI / RFI Noise Suppression, Cable EMC Filtering

Application:

Power Cable, Signal Cable, Industrial Automation, Consumer Electronics, Communication Equipment

Test Frequency Range:

1‑500MHz

Highlight:

RFI Filter Ferrite Core

VN02 Grade Ferrite Core

EMI Suppression Ferrite Core

Product Description

V180122H RFI Filter Ferrite Core, VN02 Grade Ferrite Core with >140℃ Curie Temperature for Power Signal Cable EMC EMI Suppression

Product Overview

V180122H is a high‑performance snap‑on ferrite core manufactured by VIIP, serving as a EMI noise suppressor for cable EMC applications. This ferrite core is made of VN02 grade ferrite raw material, delivering reliable high‑frequency noise attenuation for power cables and signal cables.

This Mn-Zn ferrite core features precise dimension control and stable tolerance for easy cable assembly. The ferrite core can be directly clipped onto finished cables without wire cutting, supporting quick installation and mass‑volume production. Compliant with RoHS and REACH standards, this ferrite core maintains consistent filtering performance during long‑term continuous operation, helping end‑products suppress conducted RFI interference and pass EMC compliance tests.

http://mao.ecer.com/test/emcemifilter.com/sale-55777801-v18007h-emi-suppression-ferrite-core-high-freq-noise-filter-for-consumer-electronics-signal-cables-p.html

Highlights

Great for eliminating RFI radio‑frequency interference of electronic wiring harness
Helps finished electronic products to pass official EMC compliance test requirements
Fully compliant with RoHS environmental protection requirements
Meets REACH regulation standards, suitable for global export markets
Versatile VN02 Mn‑Zn ferrite core for consumer electronics cable noise reduction

Electrical Characteristics

Parameter	Specification	Test Condition
Minimum Impedance Z1	55 Ω Min	25 MHz
Minimum Impedance Z2	120 Ω Min	100 MHz
Test Instrument	E4991A + 16194A	Impedance‑frequency test
Test Frequency Range	1‑500 MHz	00.5×0.5TS×100L(mm) test winding
Min. Impedance @100 MHz	≥ 100 Ω

Note: This snap‑on ferrite core provides effective high‑frequency EMI & RFI noise attenuation. Impedance‑frequency curve reflects noise‑suppression performance of the ferrite core across 1‑500MHz frequency band.

Material & Physical Properties

Item	Specification
Ferrite Material Grade	VN02 Mn‑Zn ferrite core
Initial Permeability (μi)	650
Saturation Magnetic Flux Density (Bs)	260 mT @1600 A/m
Coercivity	35 A/m
Curie Temperature (Tc)	＞140 ℃
Density	4.6 g/cm³

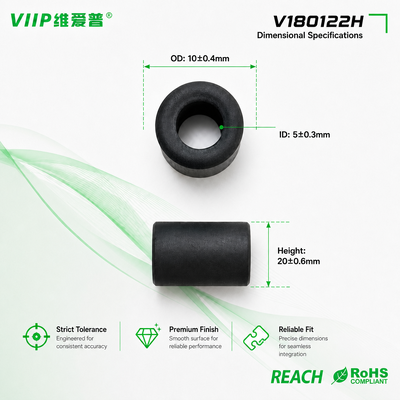

Key Dimension A	5 ±0.3 mm
Compliance	RoHS, REACH
Appearance Standard	Defect quantity controlled per OD specification, consistent mechanical dimension tolerance

This VN02 ferrite core features high electrical resistivity and stable magnetic performance. The ferrite core keeps stable magnetic characteristics under continuous working loads, ensuring batch‑to‑batch consistency for mass production.

Applications

LED lighting systems: Noise filtering for LED driver power lines, this ferrite core restrains switching noise generated by power drivers and prevents light flicker.
Security surveillance equipment: Used for camera power and video cables, the ferrite core blocks outside electromagnetic noise to guarantee stable image signal output.
