VIIP B042Q0394 VIP4-2B-10 AC EMI Filter

10A 115-250VAC 35mm DIN Rail Two-stage LC Topology Anti-interference Power Line Filter

Product Overview

VIP4‑2B‑10 is a single‑phase DIN‑rail mount EMI power filter manufactured by Shenzhen VIIP Electronics. This EMI power filter adopts two‑stage LC filtering topology, specially developed to suppress common‑mode and differential‑mode conducted electromagnetic interference on AC power lines. This EMI power filter is rated 10A at 115/250VAC for 50/60Hz mains supply. Thanks to standard DIN‑rail structure, this EMI power filter can be quickly clipped onto standard DIN rails inside control cabinets without extra complicated fixture.

Product Highlights

DIN‑rail clip‑on mounting design enables fast installation inside electrical control cabinets, saving cabinet assembly time and space
Two‑stage LC filter circuit provides high attenuation for both common‑mode and differential‑mode conducted noise across broad frequency band
Low leakage‑current performance: max 0.5 mA @115VAC/60Hz and max 1.0 mA @250VAC/50Hz, suitable for most industrial power supply scenarios
High insulation resistance ≥100 MΩ @500VDC, passed one‑minute high‑voltage withstand test for enhanced operational safety
Wide operating temperature range ‑25℃ ~ +100℃ maintains stable filtering performance under fluctuating cabinet temperature conditions
Robust metal housing structure improves anti‑interference capability and protects internal components against mechanical shock
Fully compliant with CE and RoHS standards, supporting global market deployment for industrial equipment

Electrical Characteristics

Parameter	Specifications
Model No.	VIP4‑2B‑10
Internal Part No.	B042Q0394
Rated Voltage	115 / 250 VAC
Rated Current	10 A RMS Max (115VAC & 250VAC)
Operating Frequency	50 / 60 Hz
Max Leakage Current	0.5 mA Max @115VAC / 60Hz 1.0 mA Max @250VAC / 50Hz
Hi‑pot Test	1 minute withstand voltage test
Insulation Resistance	≥100 MΩ @500VDC (Input / Output to Ground)
Operating Temperature Range	‑25℃ ~ +100℃
Test System for Insertion Loss	50 Ohm system
Mounting Method	Standard DIN‑Rail mounting

Note: Insertion-loss data is measured under standard 50-ohm test fixture, for engineering reference only. Actual performance depends on real-world wiring and system impedance.

Applications

Widely applied inside electrical cabinets for industrial automation and power‑supply systems
Perfect for PLC control systems, servo drive power input, industrial switching power supplies, instrument and measuring equipment
Suitable for new‑energy control units, cabinet‑mount power adapters and industrial communication devices
Effectively blocks conducted noise coming from mains power and suppresses internal equipment noise feeding back to grid, securing clean AC power for sensitive electronics
Helps finished industrial devices meet EMC test requirements, preferred noise‑filtering component for cabinet‑based industrial installations

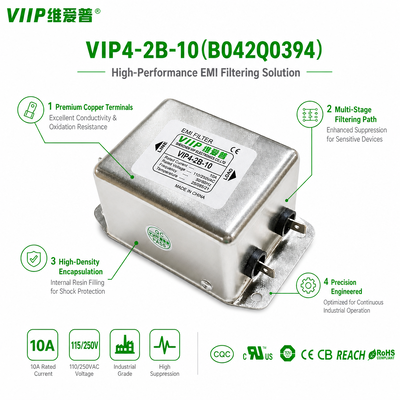

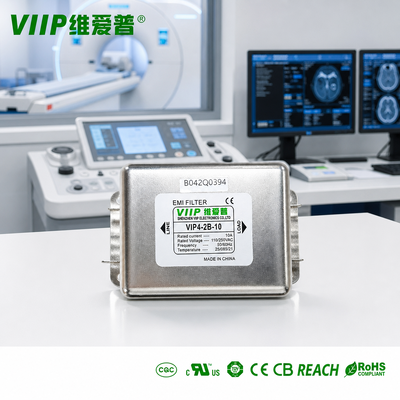

Electrical Schematic & Product Images

Support and Services

Product Overview: High-performance single-phase EMI filter, compliant with international standards

Technical Support: Refer to the datasheet and installation manual for full specs, wiring diagrams, and safety guidelines

Installation: Must be performed by qualified personnel; ensure proper grounding and secure connections per applicable electrical codes

Maintenance: Regular inspection recommended to maintain filter efficiency and extend product lifespan

Troubleshooting: Verify wiring, check for physical damage, and confirm operating conditions (temperature/humidity) meet specifications

Custom Solutions: Tailored EMI filter options available, including product testing and certification support. Contact our technical team for application advice and problem resolution
