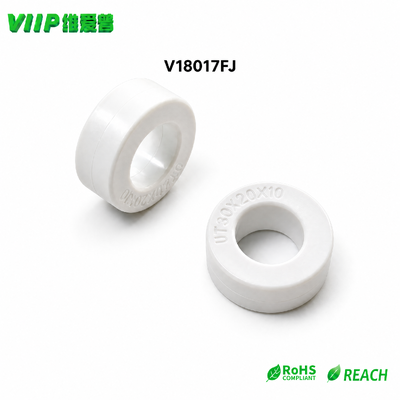

Product Description:

The EMI Ferrite Core, made from high-quality 1K107B material, is an essential component designed to effectively suppress electromagnetic interference (EMI) in various electronic applications. This ferrite core is widely recognized for its superior performance in noise reduction, making it an ideal choice for improving signal integrity and ensuring the reliable operation of electronic devices. Whether used as a ferrite ring EMI core, ferrite clip-on EMI core, or ferrite bead EMI core, this product delivers exceptional results in minimizing unwanted electromagnetic signals.

One of the standout features of this EMI ferrite core is its density of 7.3 REF, which contributes to its robust magnetic properties and durability. The density of the material ensures that the core can withstand mechanical stresses while maintaining its magnetic performance over time. This makes it suitable for use in environments where stability and consistency are critical, such as in communication devices, power supplies, and automotive electronics.

The Curie temperature of this ferrite core is 570°C, indicating its excellent thermal stability. The Curie temperature marks the point at which the ferrite material loses its magnetic properties, and having a high Curie temperature ensures that the core can operate effectively at elevated temperatures without degradation. This characteristic is particularly important in applications where the core is exposed to high heat, ensuring longevity and reliability even under demanding conditions.

Electrical resistivity is another important parameter for ferrite cores, and this product boasts a resistivity of 0.11 ohm-centimeters. High electrical resistivity in ferrite materials helps to reduce eddy current losses, which can generate unwanted heat and reduce the efficiency of the core. By minimizing these losses, the EMI ferrite core enhances overall performance and energy efficiency, making it an excellent choice for power electronics and signal filtering applications.

The saturation magnetostriction value of this ferrite core ranges between 2 to 3, indicating its moderate magnetostrictive properties. Magnetostriction refers to the change in the shape or dimensions of a material when subjected to a magnetic field. The controlled saturation magnetostriction of this core helps in preventing mechanical vibrations and noise that can occur during operation, thus contributing to quieter and more stable electronic systems.

This EMI ferrite core is versatile and can be utilized in various forms to suit different needs. As a ferrite ring EMI core, it is commonly used in inductors and transformers to suppress high-frequency noise. Its ring shape allows for easy integration into coil windings, enhancing the filtering effectiveness without compromising the magnetic circuit.

In the form of a ferrite clip-on EMI core, this product offers a convenient solution for retrofitting existing cables and wires. The clip-on design enables quick and easy installation without the need for disassembly or soldering, making it an ideal choice for maintenance and upgrades. This flexibility allows engineers and technicians to address EMI issues efficiently, reducing downtime and improving system performance.

Additionally, when used as a ferrite bead EMI core, the product provides localized noise suppression on signal and power lines. Ferrite beads are small yet highly effective components that attenuate high-frequency interference by dissipating it as heat. This makes the ferrite bead EMI core essential for protecting sensitive electronic circuits from EMI, ensuring signal clarity and device reliability.

In summary, the EMI Ferrite Core made from 1K107B material combines high density, excellent thermal stability, low electrical resistivity, and controlled magnetostriction to deliver outstanding electromagnetic interference suppression. Its adaptability as a ferrite ring EMI core, ferrite clip-on EMI core, or ferrite bead EMI core makes it suitable for a wide range of applications, from industrial electronics to consumer devices. Choosing this ferrite core ensures enhanced performance, reduced electromagnetic noise, and increased longevity of your electronic systems.

Features:

• Product Name: EMI Ferrite Core

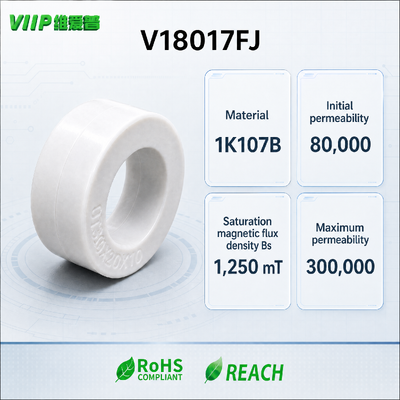

• Material: 1K107B
• Density: 7.3 REF

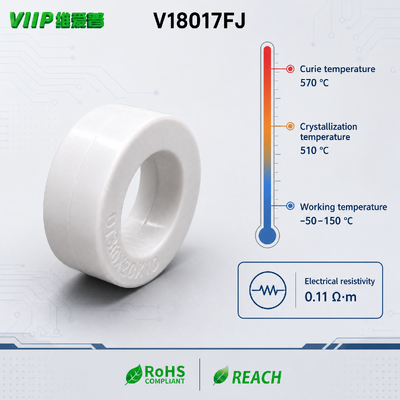

• Curie Temperature: 570°C
• Electrical Resistivity: 0.11 Ω·cm
• Saturation Magnetostriction: 2~3 ppm
• Designed as a Ferrite toroidal EMI core for effective electromagnetic interference suppression
• Functions as a Ferrite bead EMI core to reduce high-frequency noise in electronic circuits
• Specially engineered Electromagnetic interference ferrite core to enhance signal integrity and reduce EMI

Technical Parameters:

This Ferrite ring EMI core is designed with premium materials and precise specifications to ensure optimal performance in electromagnetic interference suppression. The Ferrite ring EMI core features a Curie temperature of 570°C and operates effectively within a temperature range of -50 to 150°C. Made from 1K107B material, it offers a saturation magnetostriction of 2 to 3 and a density of 7.3 REF, with an electrical resistivity of 0.11. This Ferrite ring EMI core is ideal for various electronic applications requiring reliable EMI noise reduction.

Applications:

The VIIP WeiAiPu V18017FJ Ferrite core is a high-quality EMI suppression component designed for a wide range of electronic applications. Manufactured in China and certified with Rohs Reach standards, this ferrite core ensures reliable performance while meeting environmental regulations. With a density of 7.3 REF and made from premium 1K107B material, it offers excellent magnetic properties, including a saturation magnetostriction of 2~3, making it ideal for minimizing electromagnetic interference in sensitive electronic circuits.

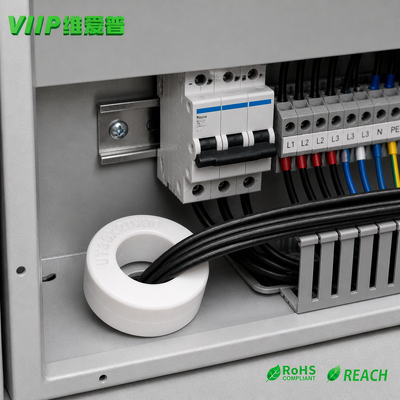

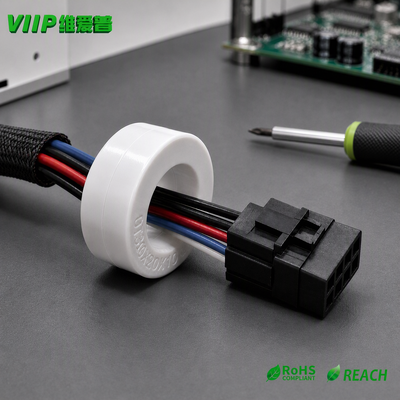

This product is especially suitable for use as a Ferrite clip-on EMI core and Ferrite toroidal EMI core in various scenarios. Its robust electrical resistivity of 0.11 and the ability to operate within a broad temperature range of -50 to 150 degrees Celsius make it versatile for both industrial and consumer electronics. The ferrite clip-on EMI core is perfect for retrofitting existing cables and harnesses, providing an easy and effective solution to reduce high-frequency noise without requiring circuit redesign.

In addition, the VIIP WeiAiPu V18017FJ Ferrite toroidal EMI core is widely applied in power supplies, data communication devices, automotive electronics, and household appliances. It effectively suppresses common-mode and differential-mode noise, enhancing signal integrity and improving overall device performance. The toroidal shape is particularly beneficial in scenarios where space constraints exist, as it provides compact EMI filtering without compromising efficiency.

For manufacturers and electronic assemblers, this product is available with a minimum order quantity of 100 pieces, packaged securely in cartons to ensure safe delivery. With a supply ability of 2000 pieces per day and a delivery time frame of 5-7 days, VIIP WeiAiPu guarantees prompt fulfillment of orders. Payment terms are flexible, accepting T/T, which facilitates smooth transactions and procurement processes.

In summary, the VIIP WeiAiPu V18017FJ Ferrite core is an essential component for reducing electromagnetic interference in various electrical and electronic systems. Whether used as a Ferrite clip-on EMI core or Ferrite toroidal EMI core, it offers high reliability, excellent material properties, and compliance with global standards, making it a preferred choice for engineers and designers aiming for superior EMI suppression solutions.

Support and Services:

Our EMI Ferrite Core products are designed to effectively suppress electromagnetic interference in various electronic applications. For technical support, our team of experts is available to assist you with product selection, installation guidance, and troubleshooting. We provide comprehensive documentation including datasheets, application notes, and mounting instructions to ensure optimal performance of the ferrite cores.

In addition to technical support, we offer customized solutions tailored to your specific EMI suppression needs. Our services include product customization, prototyping, and testing to meet unique application requirements. We are committed to delivering high-quality support and services to enhance the reliability and efficiency of your electronic systems.

FAQ:

Q1: What is the brand and model number of this EMI Ferrite Core?

A1: The EMI Ferrite Core is from the brand VIIP WeiAiPu, and the model number is V18017FJ.

Q2: Where is the EMI Ferrite Core manufactured?

A2: This product is made in China.

Q3: Does the EMI Ferrite Core have any certifications?

A3: Yes, the EMI Ferrite Core is certified with Rohs Reach compliance.

Q4: What is the minimum order quantity and packaging details for this product?

A4: The minimum order quantity is 100 pieces, and the products are packaged in cartons.

Q5: What is the typical delivery time and payment terms for ordering this EMI Ferrite Core?

A5: The delivery time is typically 5-7 days, and payment terms are T/T (Telegraphic Transfer).

Q6: What is the daily supply capacity for the VIIP WeiAiPu V18017FJ EMI Ferrite Core?

A6: The supply ability is 2000 pieces per day.
