VIP4-1B-06(B041Q0993) 6A Single Phase IEC Inlet EMI Filter Dual-fuse Power Entry Module for AC 50/60Hz Electronic Equipment

All Category

Flat Ferrite Core

Miss. Vicky Lee

vip6@szviip.com

19925448748

19925448748

Contact Now

VIP4-1B-06(B041Q0993) 6A Single Phase IEC Inlet EMI Filter Dual-fuse Power Entry Module for AC 50/60Hz Electronic Equipment

Brand Name:	Weiaipu
Model Number:	VIP4-1B-06(B041Q0993)
MOQ:	120PCS
Price:	5-7USD
Packaging Details:	Carton
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Shen Zhen

Certification:

CQC CE ROHS TUV CB REACH UL

Model:

VIP4‑1B‑06

Brand:

VIIP Weiaipu

Manufacturer:

Shenzhen VIIP Electronics Co.,Ltd.

Rated Voltage:

115/250 VAC

Rated Current:

6 A RMS Max

Operating Frequency:

50/60 Hz

Insulation Resistance:

≥100 MΩ @ 500 VDC (Input / Output To Ground)

Supply Ability:

3000PCS/WEEK

Highlight:

6A Single Phase IEC Inlet EMI Filter

Dual-fuse Power Entry Module

EMI Filter for AC Electronic Equipment

Product Description

VIP4-1B-06(B041Q0993) 6A Single Phase IEC Inlet EMI Filter Dual-fuse Power Entry Module

Product Overview

VIP4-1B-06 is a single-phase AC EMI power filter manufactured by Shenzhen VIIP Electronics Co., Ltd., with internal part number B041Q0993. It features single-stage common-mode & differential-mode LC filtering topology designed to suppress conducted electromagnetic interference on AC power lines. This bidirectional passive filter suppresses high-frequency noise from the mains grid into equipment and prevents noise generated by end-devices from feeding back to the power grid, helping products meet EMC compliance requirements. The metal-enclosed chassis-mount type is rated for 6A at 115/250VAC 50/60Hz and is certified with CE, RoHS, and REACH.

Product Highlights

Single-stage LC filter topology with excellent attenuation for common-mode and differential-mode interference within 150kHz-30MHz frequency band
Compact metal shielded enclosure with mounting holes for convenient chassis installation and good shielding performance against external EMI disturbance
Compliant with RoHS & REACH environmental requirements, halogen-free material; CE safety certification available
Bidirectional noise suppression: protects equipment from grid noise and reduces equipment emission back to power lines
Stable electrical performance, low leakage current, suitable for long-term continuous operation in commercial and light-industrial environments
Cost-effective general-purpose solution for EMC rectification of AC powered electronic devices

Electrical Characteristics

Parameter	Specifications
Model	VIP4-1B-06 (B041Q0993)
Rated Voltage	115 / 250 VAC
Rated Current	6A RMS @ 250VAC
Operating Frequency	50 / 60 Hz
Max. Leakage Current	≤0.6mA @250VAC,50Hz
Hi-pot Test (1 min)	Line-to-Line: 1760VDC Line-to-Ground: 2200VDC
Insulation Resistance	≥100MΩ @500VDC (Input/Output to Ground)
Insertion Loss	60~90dB (150kHz-30MHz, 50Ω test system)
Filter Topology	Single-stage LC (common-mode + differential-mode)

Note: Insertion-loss data is measured under standard 50-ohm test fixture, for engineering reference only. Actual performance depends on real-world wiring and system impedance.

Applications

Industrial control equipment, PLC, instrumentation and measuring devices
Office automation equipment, printers, scanners, desktop power supplies
Medical & laboratory non-life-support electronic devices
Consumer electronics, AV equipment, display and advertising screen systems
Communication power supply, network equipment and small-size switching power supply systems
Household appliances, fitness equipment, light-industrial automation apparatus

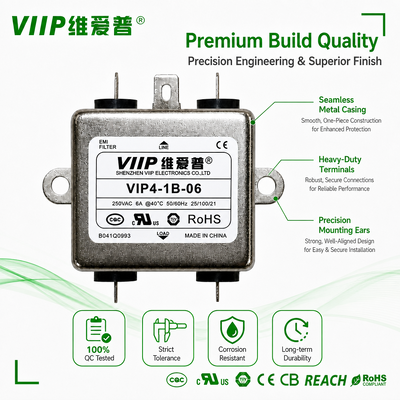

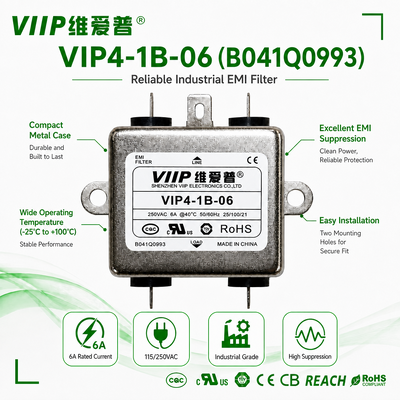

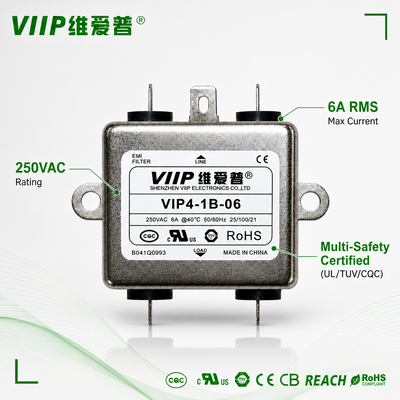

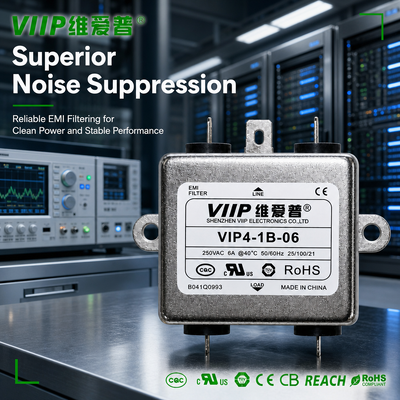

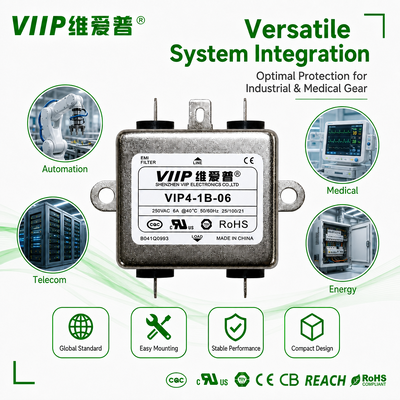

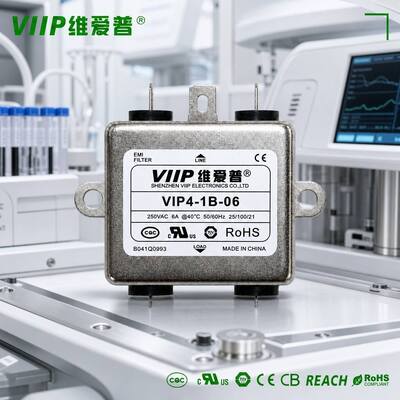

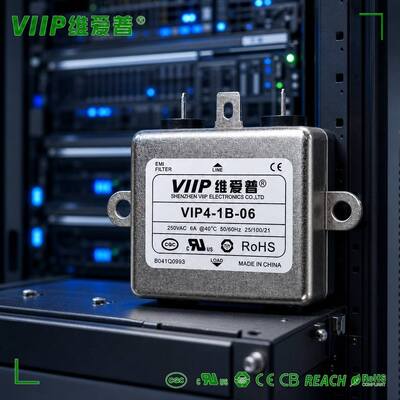

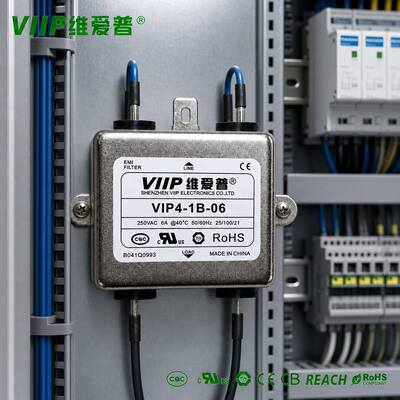

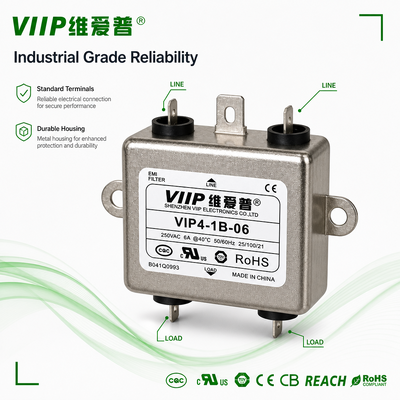

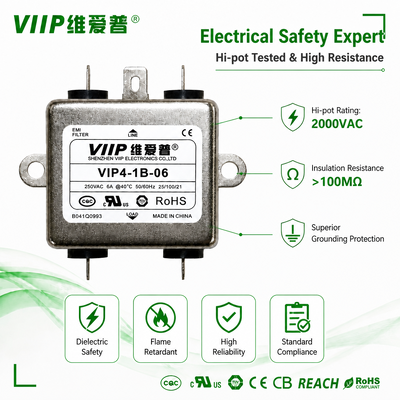

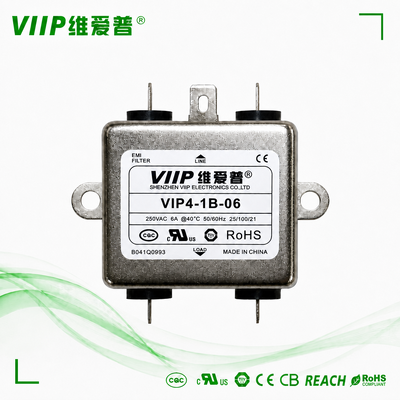

Electrical Schematic & Product Images

Support and Services

Product Overview: High-performance single-phase EMI filter, compliant with international standards

Technical Support: Refer to the datasheet and installation manual for full specs, wiring diagrams, and safety guidelines

Installation: Must be performed by qualified personnel; ensure proper grounding and secure connections per applicable electrical codes

Maintenance: Regular inspection recommended to maintain filter efficiency and extend product lifespan

Troubleshooting: Verify wiring, check for physical damage, and confirm operating conditions (temperature/humidity) meet specifications

Custom Solutions: Tailored EMI filter options available, including product testing and certification support. Contact our technical team for application advice and problem resolution

Frequently Asked Questions

What is your MOQ for VIP4-series power filters?

For standard off-the-shelf VIP4 series models, low MOQ is acceptable. Stock items support small-batch trial orders; for bulk mass production orders, MOQ will be based on production arrangement. Contact our sales team for detailed MOQ information.

Can I get samples of VIP4-series filters for my internal EMC performance pre-test?

Yes, sample service is available. Standard VIP4 models can be supplied as samples for your lab EMC validation and performance verification. Sample freight will be borne by the buyer.

What are the rated voltage, rated current and operating frequency for VIP4-series power filters?

VIP4 series single-phase filters are rated at 115/250VAC, operating frequency 50/60Hz. Different part numbers support different rated current from 1A-10A (for example VIP4-2B-10 is 10A model). Please refer to the product approval sheet for exact parameter of each model.

Can you provide insertion-loss curves including common-mode and differential-mode performance for VIP4-series filters?

Yes. Insertion-loss data under 50Ω standard test system is included in each model's approval sheet. We can provide test curves for common-mode and differential-mode noise attenuation for your circuit simulation and EMC evaluation.

What is the hip-pot (high-potential) test standard for VIP4-series power filters?

Every finished VIP4 filter undergoes hip-pot withstand voltage test for 1 minute as per specification, together with insulation resistance test (≥100MΩ @500VDC input/output to ground). Full test specification is shown on the approval sheet.

If my product fails during EMC testing after using VIP4 filters, can you provide technical support?

Yes, our in-house EMC engineering team can offer technical support. Please share your test report, application condition and circuit information, we will analyze and give suggestions for improvement or model adjustment.

Could you help select proper VIP-series filter model for my specific application such as inverter, servo drive or control cabinet?

Sure. Please provide key information including working voltage, rated current, equipment type, main noise frequency and installation condition. Our team will help you pick the most suitable filter solution for your system.
